Phoenix Contact PST 1,0 4-3,5 Data Sheet
Summary
A comprehensive resource for the PST 1,0/4-3,5 electrical header component. This manual provides technical specifications, including dimensions, mounting diagrams, and derating curves necessary for proper installation. It covers detailed operational parameters such as rated voltages, nominal currents (up to 8A), and compliance certifications (UL, CSA). Essential reading for engineers and industrial technicians who require reliable integration of robust, soldermount header systems into electrical control panels and electronic assemblies.
Page 1 Text Content
Extract from the online catalog

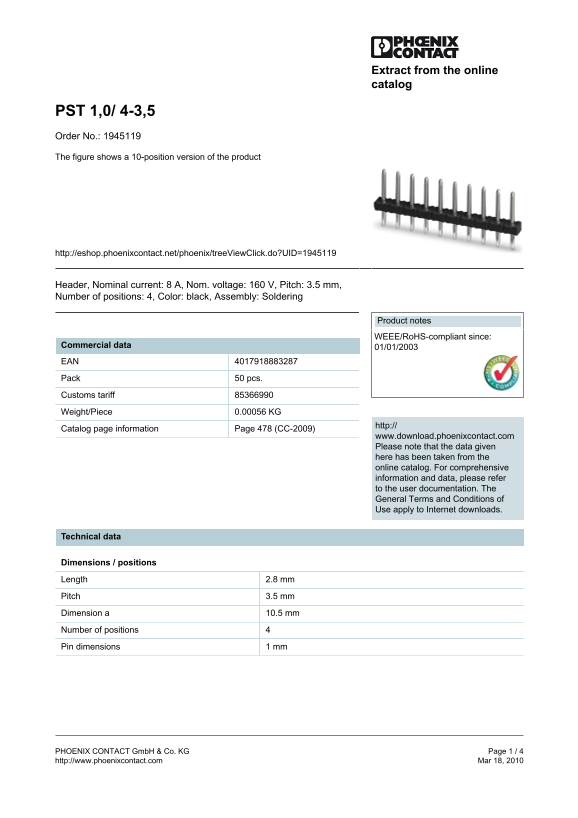

PST 1,0/ 4-3,5 Order No.: 1945119 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1945119
Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.5 mm, Number of positions: 4, Color: black, Assembly: Soldering
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.00056 KG
http://
Catalog page information Page 478 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 2.8 mm Pitch 3.5 mm Dimension a 10.5 mm Number of positions Pin dimensions 1 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 4 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact PST 1,0 4-3,5 Data Sheet
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 4 |
| File Size | 121.99 KB |
| Published | June 15, 2026 |
