Phoenix Contact PST 1,0 3-3,5 Order No. 1945106 Product Data Handbook and Instructions
Summary
This technical documentation provides comprehensive specifications for the PST 1,0/3-3,5 series header connector. Learn about its key electrical ratings, including nominal current and voltage limits, physical dimensions (pitch 3.5 mm), and compliance standards (WEEE/RoHS). This resource is essential for electrical engineers, circuit designers, and technicians who require reliable components for building solder-mounted PCBs or integrating electrical systems into industrial designs. Use this guide to ensure optimal component selection and seamless product integration.
Page 1 Text Content
Extract from the online catalog

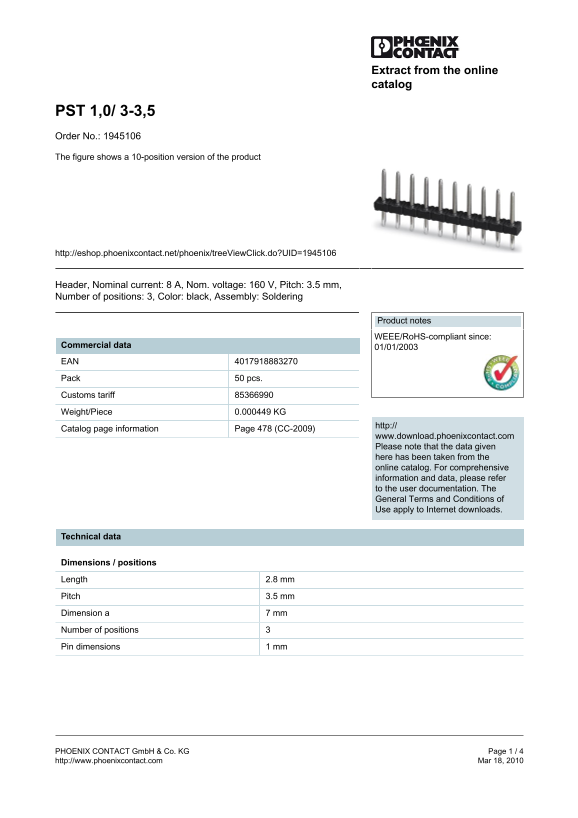

PST 1,0/ 3-3,5 Order No.: 1945106 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1945106
Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.5 mm, Number of positions: 3, Color: black, Assembly: Soldering
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.000449 KG
http://
Catalog page information Page 478 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 2.8 mm Pitch 3.5 mm Dimension a 7 mm Number of positions Pin dimensions 1 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 4 http://www.phoenixcontact.com Mar 18, 2010
