Phoenix Contact - SMKDS 1 3-3,5 Data Sheet
Summary
Manage complex electrical connections with this reliable, multi-position terminal block. This comprehensive guide provides industry professionals, engineers, and technicians with all necessary technical data, including dimensional specifications, connection guidelines, and detailed compliance information (RoHS/WEEE). It covers proper mounting, conductor sizing for both solid and stranded wires, and safety requirements needed for robust industrial automation systems up to 10A.
Page 1 Text Content

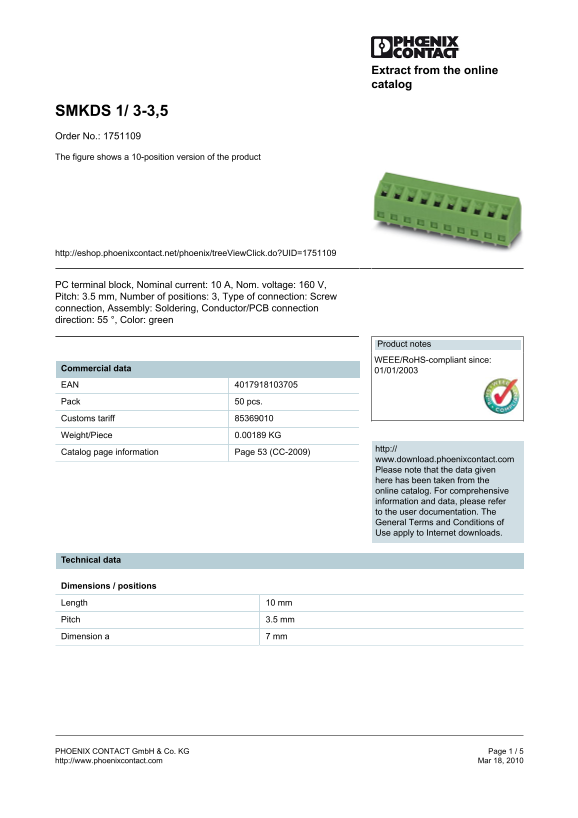

Extract from the online catalog
SMKDS 1/ 3-3,5 Order No.: 1751109 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1751109
PC terminal block, Nominal current: 10 A, Nom. voltage: 160 V, Pitch: 3.5 mm, Number of positions: 3, Type of connection: Screw connection, Assembly: Soldering, Conductor/PCB connection direction: 55 °, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.00189 KG
http://
Catalog page information Page 53 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 10 mm Pitch 3.5 mm Dimension a 7 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
