Phoenix Contact MFKDSP 6-5,08 Order No. 1791884 Data Sheet Manual Illustration Shown: 5-Position Version
Summary
This industrial PC terminal block is engineered for robust, reliable connections in electrical control systems and automation equipment. Featuring a standard 5.08 mm pitch and capacity up to 12A/250V, it securely connects conductors directly to PCBs or circuits. The comprehensive manual provides design-ready technical specifications, detailed connection guidelines, certification details (CSA, UL), and accessory integration information, making it ideal for electrical engineers and technicians designing professional industrial circuits.

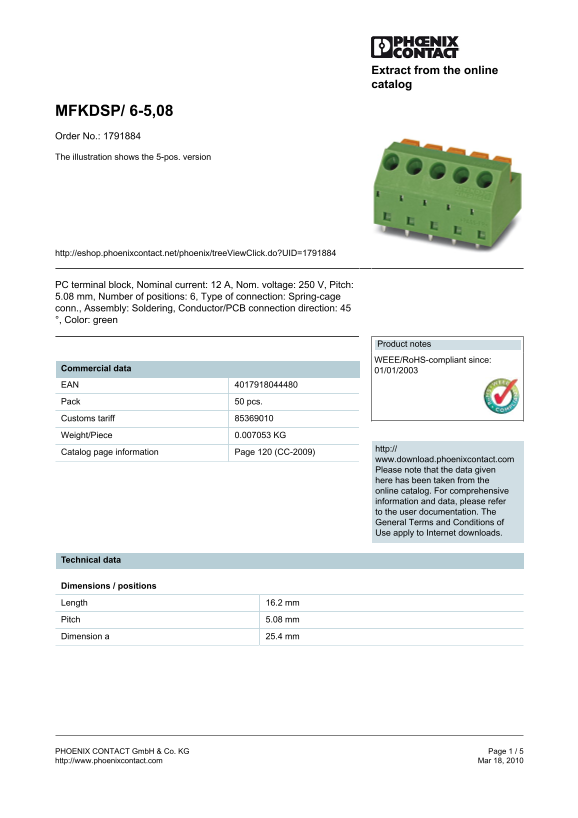

Page 1 Text Content
Extract from the online catalog
MFKDSP/ 6-5,08 Order No.: 1791884 The illustration shows the 5-pos. version
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1791884
PC terminal block, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5.08 mm, Number of positions: 6, Type of connection: Spring-cage conn., Assembly: Soldering, Conductor/PCB connection direction: 45 °, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.007053 KG
http://
Catalog page information Page 120 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 16.2 mm Pitch 5.08 mm Dimension a 25.4 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact MFKDSP 6-5,08 Order No. 1791884 Data Sheet Manual Illustration Shown: 5-Position Version
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 5 |
| File Size | 131.64 KB |
| Published | June 06, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the operational ratings for this terminal block?
The nominal voltage is 250 V, and it has a maximum rated current of 12 A.
What types and sizes of conductors are compatible with the unit?
Solid conductors must be between 0.2 mm² and 1.5 mm². Stranded cables have minimum/maximum limits depending on if ferrules are used.
Is this terminal block compliant with major electrical standards?
Yes, it is WEEE/RoHS-compliant and holds multiple certifications including CSA, CUL, GOST, and UL.
