Phoenix Contact MFKDSP 7-5,08 Order No. 1791693 Data Sheet & Installation Manual
Summary
Connect and manage industrial circuits with this reliable PC terminal block, designed for professional panel wiring requiring up to 7 positions and a 12A capacity. This manual serves as a comprehensive resource for engineers and electricians, detailing critical technical specifications, electrical ratings (UL/CSA compliant), and compatible accessories like marker cards. Everything you need for robust, organized circuit assembly is covered here, ensuring optimal performance in demanding automated environments.
Page 1 Text Content
Extract from the online catalog

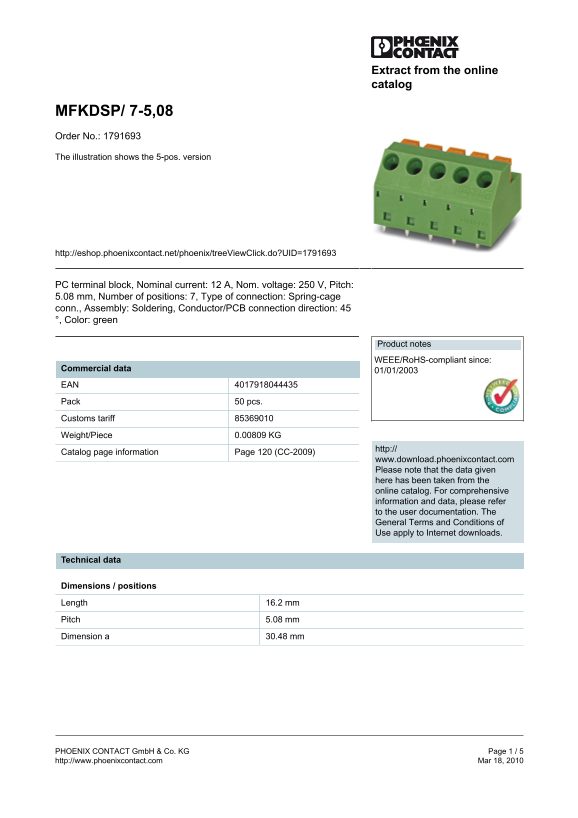

MFKDSP/ 7-5,08 Order No.: 1791693 The illustration shows the 5-pos. version
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1791693
PC terminal block, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5.08 mm, Number of positions: 7, Type of connection: Spring-cage conn., Assembly: Soldering, Conductor/PCB connection direction: 45 °, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.00809 KG
http://
Catalog page information Page 120 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 16.2 mm Pitch 5.08 mm Dimension a 30.48 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
