This modular plug component is designed for reliable electrical signal and power connections, rated up to 12A/250V. It provides a robust, screw-connection solution suitable for standard industrial panel building applications. The accompanying documentation details complete technical specifications, including wire cross-section limits, multiple safety certifications (UL, VDE), and compatible accessories like marking systems and removal aids. Essential reading for electrical engineers and technicians specifying durable, high-performance terminal blocks for automation control cabinets.

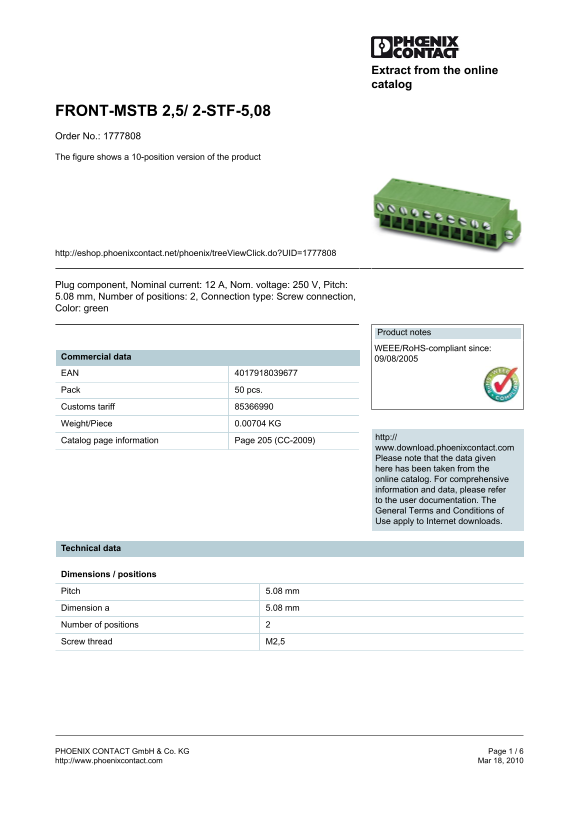

Page 1 Text Content
Extract from the online catalog
FRONT-MSTB 2,5/ 2-STF-5,08 Order No.: 1777808 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1777808
Plug component, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5.08 mm, Number of positions: 2, Connection type: Screw connection, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 09/08/2005 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.00704 KG
http://
Catalog page information Page 205 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 5.08 mm Dimension a 5.08 mm Number of positions Screw thread M2,5
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 6 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact FRONT-MSTB 2,5 2-STF-5,08 Order No. 1777808 Data Manual - Figure Shows 10-Position Version of Product User Guide
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 6 |
| File Size | 147.34 KB |
| Published | June 04, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the nominal current and voltage of this terminal block?
The nominal current is 12 A, and the nominal voltage is 250 V.
What conductor cross sections are supported?
Solid conductors range from 0.34 mm² to 2.5 mm², while stranded wires support between 0.2 mm² and 2.5 mm².
What is the recommended tightening torque for installation?
The specified tightening torque should be between a minimum of 0.5 Nm and a maximum of 0.6 Nm.
Is this component certified by various safety agencies?
Yes, it holds certifications including CB, CSA, CUL, GL, GOST, UL, and VDE-PZI.
