Phoenix Contact PTSA 0.5 8-2.5-Z Data Sheet / Manual
Summary
This robust PC terminal block provides reliable electrical connectivity for industrial applications up to 2A and 160V across eight positions. It features a secure spring-cage connection, ensuring durable and compliant installation (RoHS/WEEE). The manual serves as an essential guide for engineers and technicians, offering comprehensive technical specifications including voltage ratings, detailed wiring size guides (solid and stranded conductors), dimensional drawings, and all relevant UL/VDE certification data. Use this resource to confidently integrate standardized, high-quality electrical components into automation systems.

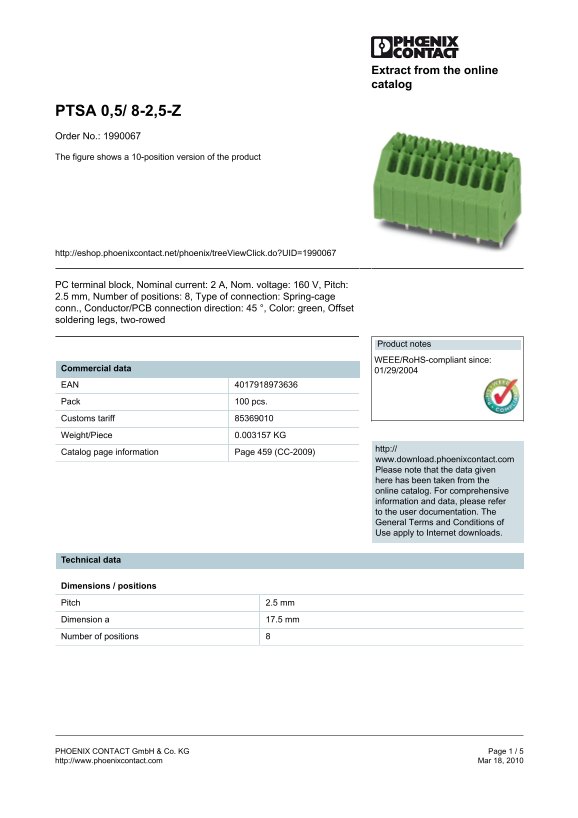

Page 1 Text Content
Extract from the online catalog
PTSA 0,5/ 8-2,5-Z Order No.: 1990067 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1990067
PC terminal block, Nominal current: 2 A, Nom. voltage: 160 V, Pitch: 2.5 mm, Number of positions: 8, Type of connection: Spring-cage conn., Conductor/PCB connection direction: 45 °, Color: green, Offset soldering legs, two-rowed
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/29/2004 EAN Pack 100 pcs. Customs tariff Weight/Piece 0.003157 KG
http://
Catalog page information Page 459 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 2.5 mm Dimension a 17.5 mm Number of positions
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact PTSA 0.5 8-2.5-Z Data Sheet / Manual
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 5 |
| File Size | 131.76 KB |
| Published | June 02, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What conductor sizes can I use with this terminal block?
Solid conductors must be between 0.14 mm² and 0.5 mm², or AWG/kcmil 24 to 20.
What is the nominal current and pitch?
The nominal current (I) is 2 A, and the standard pitch spacing is 2.5 mm.
How long is the required wire stripping length?
The specified stripping length for the connection is 9 mm.
What are the environmental compliance ratings?
The terminal block is WEEE/RoHS-compliant and has an UL 94 V0 flammability rating.
