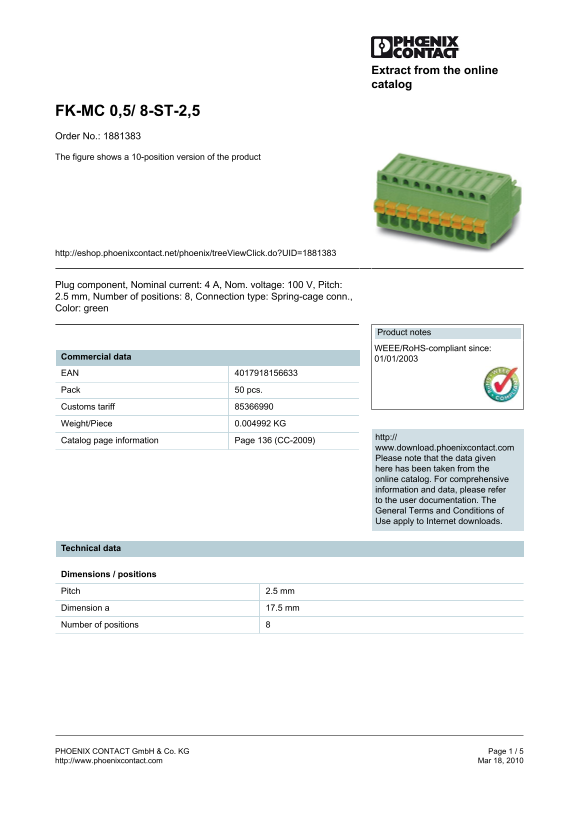

Page 1 Text Content
Extract from the online catalog
FK-MC 0,5/ 8-ST-2,5 Order No.: 1881383 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1881383
Plug component, Nominal current: 4 A, Nom. voltage: 100 V, Pitch: 2.5 mm, Number of positions: 8, Connection type: Spring-cage conn., Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.004992 KG
http://
Catalog page information Page 136 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 2.5 mm Dimension a 17.5 mm Number of positions
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact -FK-MC 0.5 8-ST-2.5 Data Handbook/Specification Sheet
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 5 |
| File Size | 158.13 KB |
| Published | May 31, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum load current?
The maximum load current is 4 A when using a 0.5 mm² conductor cross section.
Does this product work with stranded conductors?
Yes, the conductor cross section limits for stranded wires are min. 0.14 mm² and max. 0.5 mm² (without ferrule).
What is the rated voltage for different standards?
It has a Rated voltage of III/2 at 2.5 kV and II/2 at 320 V; the general rated surge voltage (III/3) is 1.5 kV.
Are specific tools required for installation?
The manual mentions an optional screwdriver (1205202 SZS 0,4X2,0) that matches all screw terminal blocks up to 1.5 mm².
