Phoenix Contact - MC 1.5 5-STF-3.5 Data Sheet / Manual
Summary
This plug terminal component features a reliable screw connection system for electrical installations, rated up to 8 A at a 160 V nominal voltage. With five positions and a precise 3.5 mm pitch, it ensures stable connectivity for both solid and stranded conductors (up to 1.5 mm²). The comprehensive manual provides critical technical data, detailed wiring specifications, compatibility charts, and necessary accessories required by electrical engineers and systems integrators for professional assembly and maintenance.
Page 1 Text Content
Extract from the online catalog

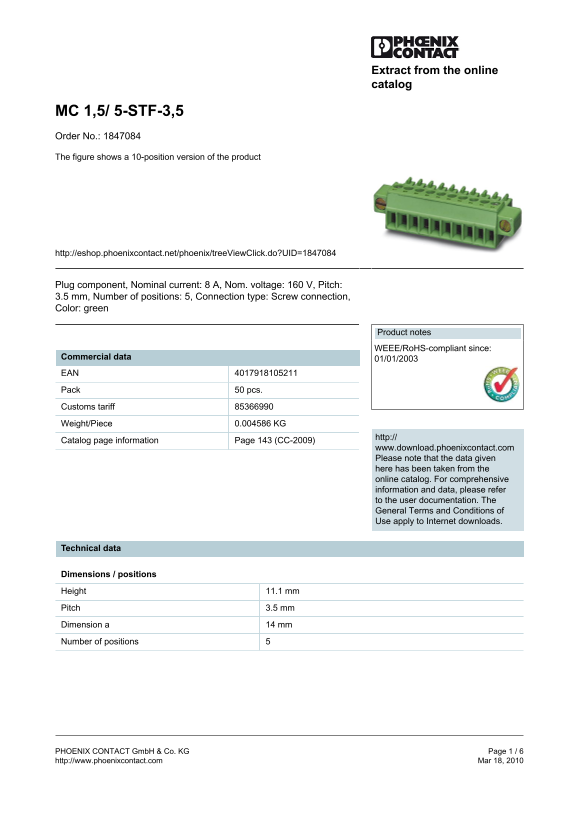

MC 1,5/ 5-STF-3,5 Order No.: 1847084 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1847084
Plug component, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.5 mm, Number of positions: 5, Connection type: Screw connection, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.004586 KG
http://
Catalog page information Page 143 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Height 11.1 mm Pitch 3.5 mm Dimension a 14 mm Number of positions
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 6 http://www.phoenixcontact.com Mar 18, 2010
