Phoenix Contact - MC 1.5 3-STF-3.5 Data Sheet / Manual
Summary
This plug component is a highly reliable terminal block designed for secure electrical connections in control systems. It features a 3.5 mm pitch and multiple connection options, rated for up to 8 A. The accompanying documentation provides comprehensive technical data, including detailed wiring specifications, certification compliance details (UL, CSA), compatibility guidelines, and related accessory information to ensure proper installation when building industrial or specialized electrical circuits. Ideal for engineers and technicians designing modular power distribution solutions.
Page 1 Text Content

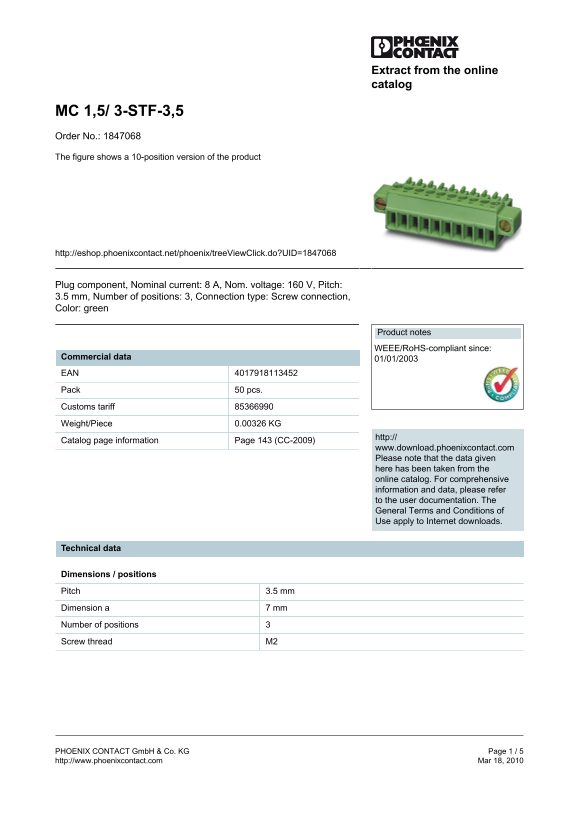

Extract from the online catalog
MC 1,5/ 3-STF-3,5 Order No.: 1847068 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1847068
Plug component, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.5 mm, Number of positions: 3, Connection type: Screw connection, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.00326 KG
http://
Catalog page information Page 143 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 3.5 mm Dimension a 7 mm Number of positions Screw thread M2
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
