Phoenix Contact - PTDA 1.5 3-3.5 Data Handbook/Specifications Guide
Summary
This high-performance PC terminal block (PTDA) offers a reliable interconnection solution, designed for electrical control system applications requiring precise PCB mounting. Rated for up to 13.5 A at 200 V, it utilizes secure spring-cage technology and features standardized soldermount assembly. The comprehensive manual provides technical data sheets, detailed wiring specifications for solid and stranded conductors, dimensional drawings, and compliance information (including UL/CUL certifications), making it essential documentation for electrical engineers and system integrators developing reliable power electronics.
Page 1 Text Content
Extract from the online catalog

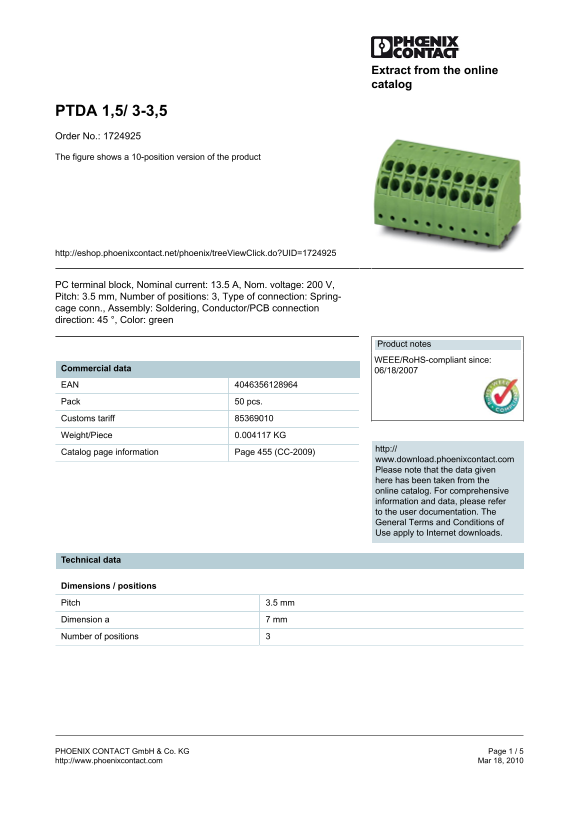

PTDA 1,5/ 3-3,5 Order No.: 1724925 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1724925
PC terminal block, Nominal current: 13.5 A, Nom. voltage: 200 V, Pitch: 3.5 mm, Number of positions: 3, Type of connection: Spring- cage conn., Assembly: Soldering, Conductor/PCB connection direction: 45 °, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 06/18/2007 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.004117 KG
http://
Catalog page information Page 455 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 3.5 mm Dimension a 7 mm Number of positions
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
