This reliable PC terminal block is designed for robust power connections in industrial electrical and automation systems. Constructed with a 3.5 mm pitch, it supports conductors ranging from 0.2 to 1.5 mm² and handles up to 13.5 A nominal current at 200 V. The documentation provides comprehensive resources for engineers and technicians, including detailed technical specifications, various connection methods (spring-cage/soldering), UL/CUL certifications, and dimensional plans necessary for reliable installation.
Page 1 Text Content

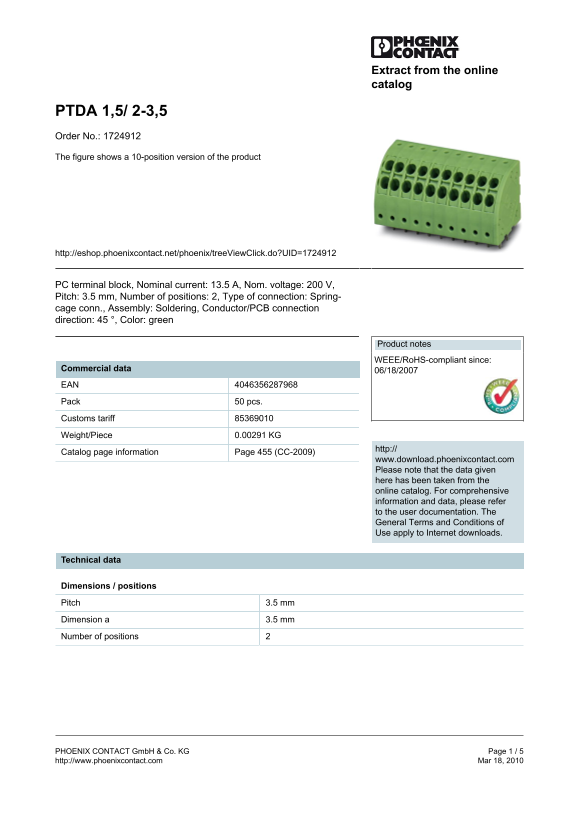

Extract from the online catalog
PTDA 1,5/ 2-3,5 Order No.: 1724912 The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1724912
PC terminal block, Nominal current: 13.5 A, Nom. voltage: 200 V, Pitch: 3.5 mm, Number of positions: 2, Type of connection: Spring- cage conn., Assembly: Soldering, Conductor/PCB connection direction: 45 °, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 06/18/2007 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.00291 KG
http://
Catalog page information Page 455 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 3.5 mm Dimension a 3.5 mm Number of positions
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
