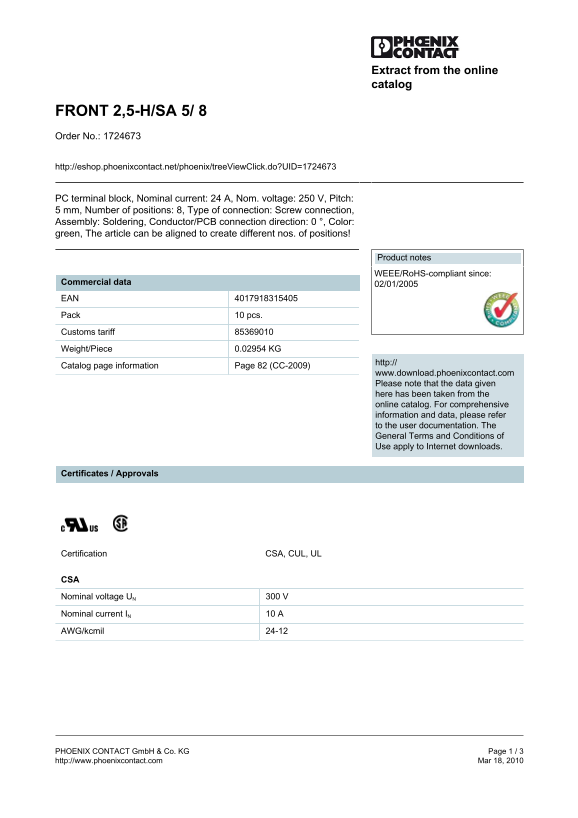

Page 1 Text Content
Extract from the online catalog
FRONT 2,5-H/SA 5/ 8 Order No.: 1724673
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1724673
PC terminal block, Nominal current: 24 A, Nom. voltage: 250 V, Pitch: 5 mm, Number of positions: 8, Type of connection: Screw connection, Assembly: Soldering, Conductor/PCB connection direction: 0 °, Color: green, The article can be aligned to create different nos. of positions!
Product notes WEEE/Ro HS-compliant since:
Commercial data 02/01/2005 EAN Pack 10 pcs. Customs tariff Weight/Piece 0.02954 KG
http://
Catalog page information Page 82 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Certificates / Approvals
Certification CSA, CUL, UL
CSA Nominal voltage UN 300 V Nominal current IN 10 A AWG/kcmil 24-12
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 3 http://www.phoenixcontact.com Mar 18, 2010
