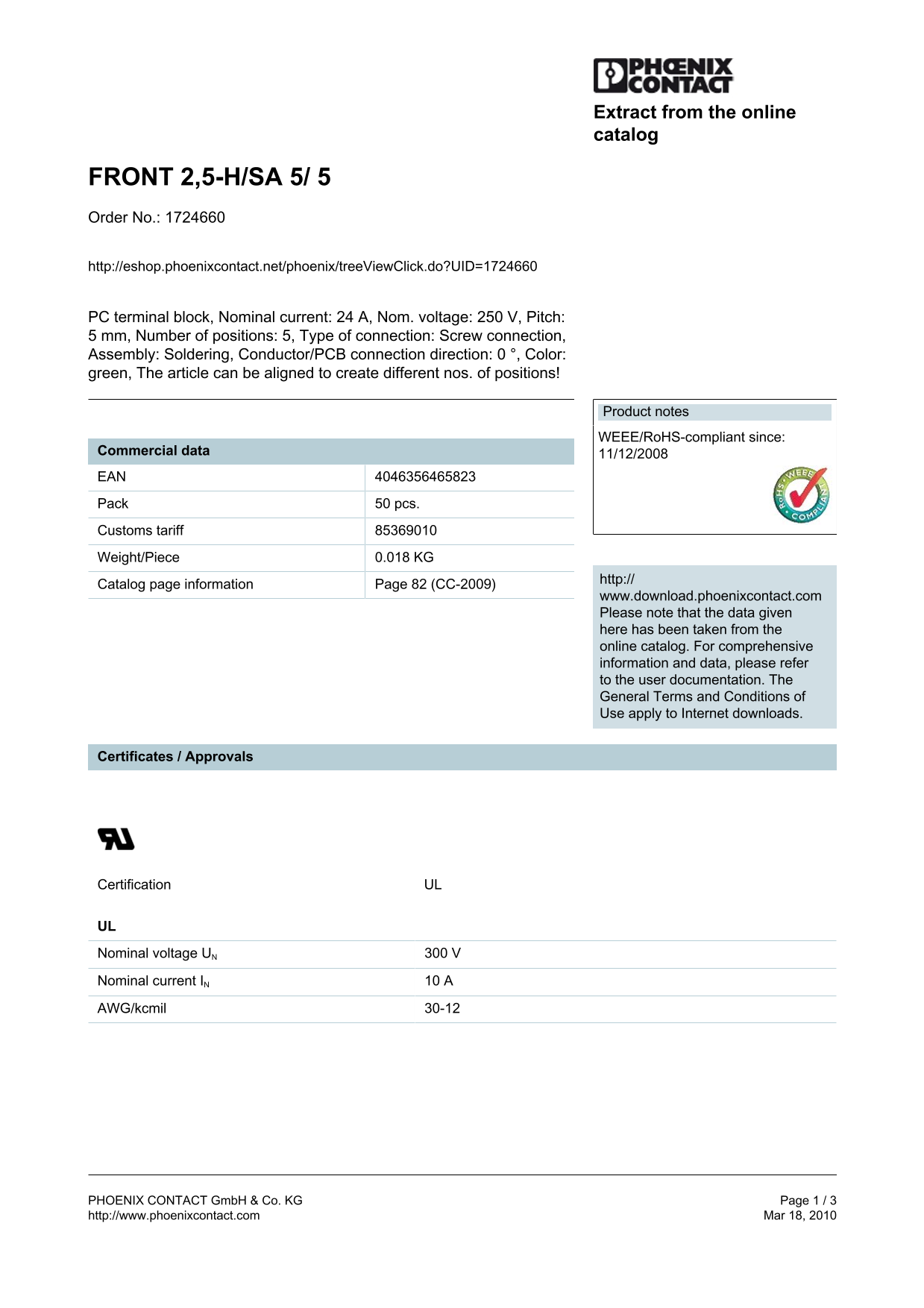

Extract from the online catalog
FRONT 2,5-H/SA 5/ 5 Order No.: 1724660
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1724660
PC terminal block, Nominal current: 24 A, Nom. voltage: 250 V, Pitch: 5 mm, Number of positions: 5, Type of connection: Screw connection, Assembly: Soldering, Conductor/PCB connection direction: 0 °, Color: green, The article can be aligned to create different nos. of positions!
Product notes WEEE/Ro HS-compliant since:
Commercial data 11/12/2008 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.018 KG
http://
Catalog page information Page 82 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Certificates / Approvals
Certification UL
UL Nominal voltage UN 300 V Nominal current IN 10 A AWG/kcmil 30-12
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 3 http://www.phoenixcontact.com Mar 18, 2010
