This high-performance PC terminal block (PLH series) is engineered for robust electrical connections up to 1000V, featuring a standard 10mm pitch and three connection positions. It ensures reliability by supporting various conductor types from 0.75mm² to 16mm². The associated manual provides crucial technical specifications, detailed dimensioned drawings, and installation diagrams, making it an essential resource for electrical engineers and automation professionals designing critical industrial control panels who require accurate component integration and high-reliability connectivity solutions.

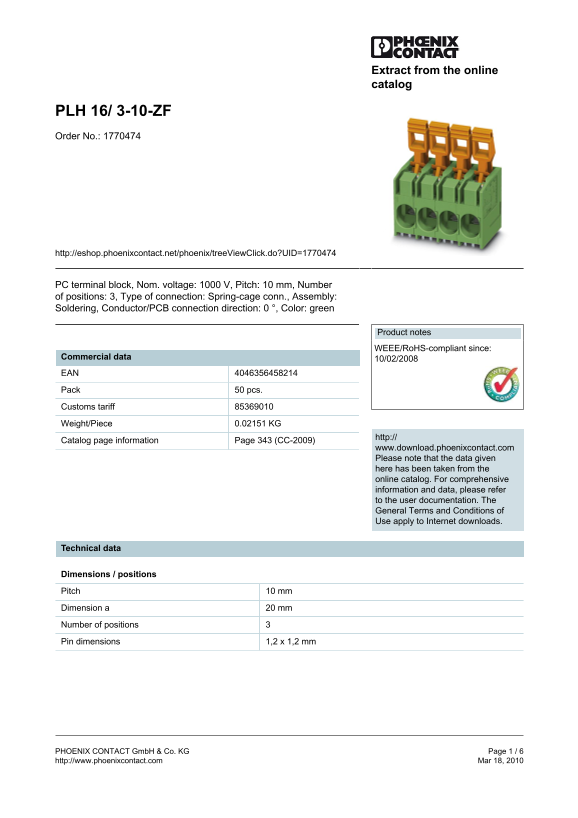

Page 1 Text Content
Extract from the online catalog
PLH 16/ 3-10-ZF Order No.: 1770474
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1770474
PC terminal block, Nom. voltage: 1000 V, Pitch: 10 mm, Number of positions: 3, Type of connection: Spring-cage conn., Assembly: Soldering, Conductor/PCB connection direction: 0 °, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 10/02/2008 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.02151 KG
http://
Catalog page information Page 343 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 10 mm Dimension a 20 mm Number of positions Pin dimensions 1,2 x 1,2 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 6 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact - PLH 16 3-10-ZF Data Sheet
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 6 |
| File Size | 180.60 KB |
| Published | June 15, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the nominal voltage of this terminal block?
The nominal voltage (U) is 1000 V.
How large can the conductor cross-section be for stranded wire with ferrules?
The maximum size is 16 mm² without a plastic sleeve, or 10 mm² with one.
Does this product require specific mounting tools or connections?
It uses a spring-cage connection and soldering assembly methods.
How much surge protection does the block offer?
The rated surge voltage (III/3) is 8 kV.
What materials are used for insulation?
The insulating material is PA.
