This high-performance terminal block is engineered for electrical connectivity requiring a nominal voltage up to 1000V, featuring a reliable 10mm pitch and seven connection positions. Ideal for industrial automation and control systems, it provides durable connections suitable for solid and stranded conductors up to 16 mm². The accompanying documentation provides comprehensive technical specifications, dimensioned drawings, and wiring plans, ensuring proper installation and integration by electrical engineers, system designers, and technicians working on demanding circuit board applications.
Page 1 Text Content
Extract from the online catalog

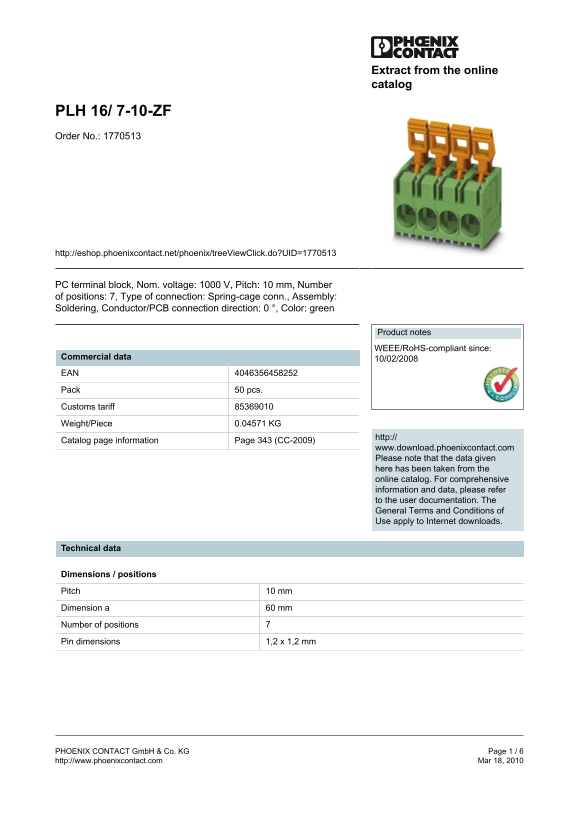

PLH 16/ 7-10-ZF Order No.: 1770513
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1770513
PC terminal block, Nom. voltage: 1000 V, Pitch: 10 mm, Number of positions: 7, Type of connection: Spring-cage conn., Assembly: Soldering, Conductor/PCB connection direction: 0 °, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 10/02/2008 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.04571 KG
http://
Catalog page information Page 343 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 10 mm Dimension a 60 mm Number of positions Pin dimensions 1,2 x 1,2 mm
