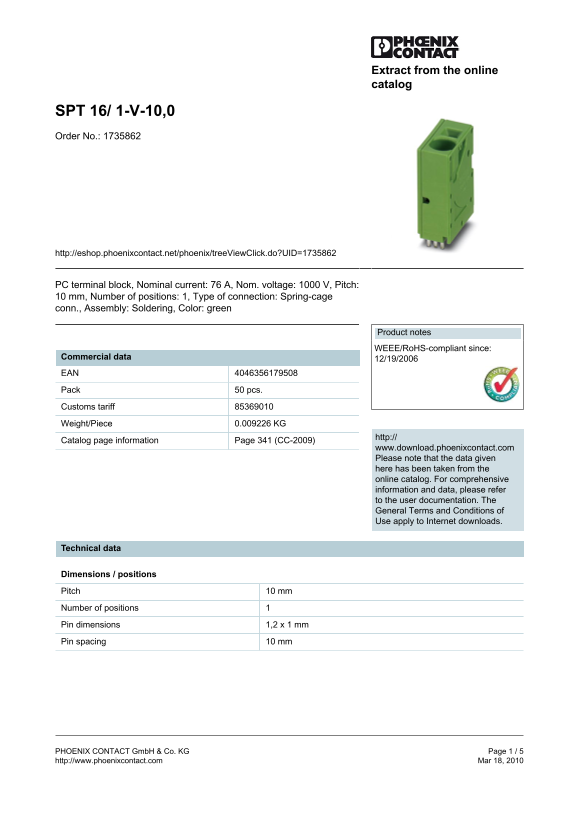

Extract from the online catalog
SPT 16/ 1-V-10,0 Order No.: 1735862
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1735862
PC terminal block, Nominal current: 76 A, Nom. voltage: 1000 V, Pitch: 10 mm, Number of positions: 1, Type of connection: Spring-cage conn., Assembly: Soldering, Color: green
Product notes WEEE/Ro HS-compliant since:
Commercial data 12/19/2006 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.009226 KG
http://
Catalog page information Page 341 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Pitch 10 mm Number of positions Pin dimensions 1,2 x 1 mm Pin spacing 10 mm
