Phoenix Contact MC 1.5 10-G-3.81 THT Order No. 1908842 Data Sheet User Manual
Summary
This technical manual provides comprehensive details for the MC 1,5/10-G-3,81 THT terminal header, a reliable 10-position connector designed for demanding industrial electrical applications. Ideal for engineers and technicians, the documentation covers precise mounting dimensions, detailed specifications (up to 2.5 kV), various connection options, and compatibility with key accessories. It ensures professional planning and integration into automated systems requiring robust, high-performance connectivity solutions.

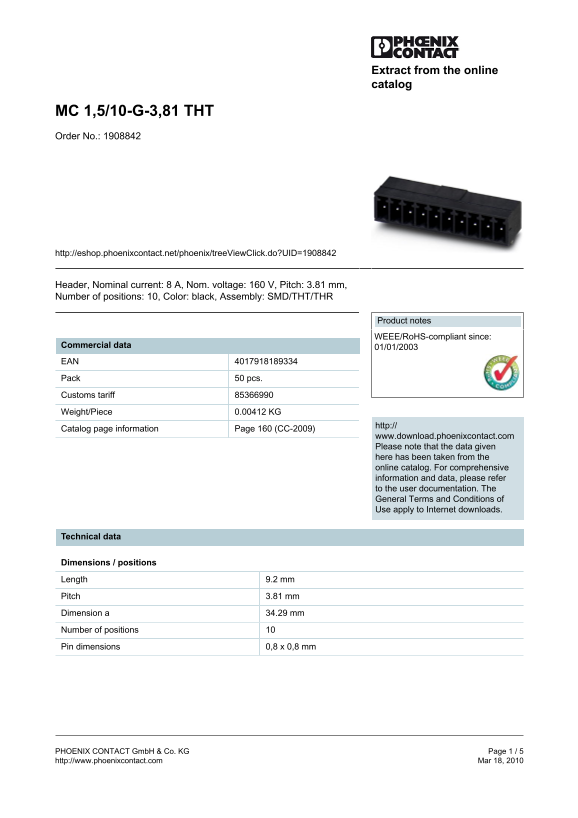

Page 1 Text Content
Extract from the online catalog
MC 1,5/10-G-3,81 THT Order No.: 1908842
http://eshop.phoenixcontact.net/phoenix/tree View Click.do?UID=1908842
Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81 mm, Number of positions: 10, Color: black, Assembly: SMD/THT/THR
Product notes WEEE/Ro HS-compliant since:
Commercial data 01/01/2003 EAN Pack 50 pcs. Customs tariff Weight/Piece 0.00412 KG
http://
Catalog page information Page 160 (CC-2009)
www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads.
Technical data
Dimensions / positions Length 9.2 mm Pitch 3.81 mm Dimension a 34.29 mm Number of positions Pin dimensions 0,8 x 0,8 mm
PHOENIX CONTACT Gmb H & Co. KG Page 1 / 5 http://www.phoenixcontact.com Mar 18, 2010
Page Summary Contents For Phoenix Contact MC 1.5 10-G-3.81 THT Order No. 1908842 Data Sheet User Manual
Manual Details
| Brand | Phoenix |
|---|---|
| Pages | 5 |
| File Size | 142.07 KB |
| Published | June 01, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the nominal electrical ratings for the MC 1,5/10-G-3,81 THT?
The nominal voltage is 160 V and the maximum load current capacity is rated at 8 A.
What hole diameter should be used when mounting this terminal block?
For installation, the specified hole diameter is 1.4 mm of drill size.
Does the product meet required safety certifications?
Yes, it holds multiple approvals including UL, VDE-PZI, CB, and GOST.
What connection types are available when adding accessories?
Accessories include options for spring cage connections (FK-MCP) or standard screw connections (FRONT-MC).
