Motorola MC74AC132 MC74ACT132 Data Manual
Summary
This integrated circuit is designed for robust digital signal processing, featuring four 2-input NAND gates combined with positive feedback Schmitt triggers. This highly precise structure excels at cleaning up slow or noisy input signals by establishing reliable hysteresis thresholds. The accompanying manual provides comprehensive engineering data, including detailed AC/DC characterization, propagation delays, and guaranteed operating limits across extended temperature ranges (-40°C to +85°C). It is the essential resource for electronics engineers designing dependable digital systems that require advanced signal conditioning.

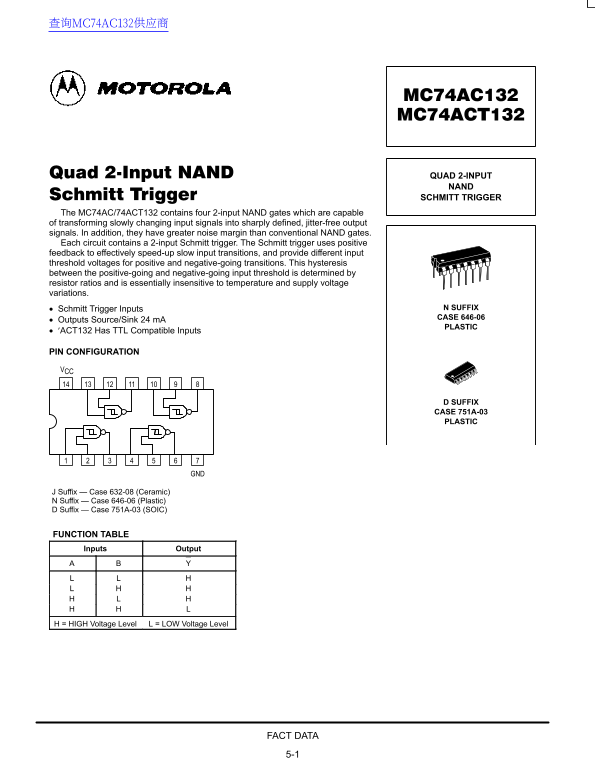

Page 1 Text Content
查询MC74AC132供应商
QUAD 2-INPUT NAND SCHMITT TRIGGER
The MC74AC/74ACT132 contains four 2-input NAND gates which are capable of transforming slowly changing input signals into sharply defined, jitter-free output signals. In addition, they have greater noise margin than conventional NAND gates. Each circuit contains a 2-input Schmitt trigger. The Schmitt trigger uses positive feedback to effectively speed-up slow input transitions, and provide different input threshold voltages for positive and negative-going transitions. This hysteresis between the positive-going and negative-going input threshold is determined by resistor ratios and is essentially insensitive to temperature and supply voltage variations.
Schmitt Trigger Inputs N SUFFIX CASE 646-06
Outputs Source/Sink 24 m A
PLASTIC
′ACT132 Has TTL Compatible Inputs
PIN CONFIGURATION VCC
D SUFFIX CASE 751A-03 PLASTIC
J Suffix — Case 632-08 (Ceramic) N Suffix — Case 646-06 (Plastic) D Suffix — Case 751A-03 (SOIC)
FUNCTION TABLE Inputs Output
H = HIGH Voltage Level L = LOW Voltage Level
FACT DATA 5-1
Page Summary Contents For Motorola MC74AC132 MC74ACT132 Data Manual
Manual Details
| Brand | Motorola |
|---|---|
| Pages | 5 |
| File Size | 134.07 KB |
| Published | May 29, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What features does the Schmitt trigger provide?
It uses positive feedback to speed up slow input transitions, offering different input threshold voltages for positive and negative-going transitions (hysteresis).
What is the maximum operating temperature range?
The device supports an operating ambient temperature range of -40°C to 85°C.
How does the MC74AC/ACT132 operate its gates?
It contains four 2-input NAND gates that transform slowly changing input signals into sharply defined, jitter-free output signals.
What is the typical supply voltage range for operation?
The specified recommended operating conditions show a typical supply voltage (V_CC) between 5.0 V and 6.0 V for the 'AC type.
