Motorola 33996 Data Sheet/Manual

Summary

The 33996 is a professional-grade, high-reliability 16-output low-side switch designed as an expander buffer for microcontrollers. It features comprehensive fault management, PWM control, and uses a 24-bit SPI interface for precise serial input and diagnostic reporting. This manual provides full technical specifications, pinout diagrams, operational parameters, and application guidance for system integration. Ideal for electrical engineers designing complex embedded systems requiring robust power switching capability for diverse loads like LEDs or inductive components while maintaining MCU efficiency.

📄 Preview PAGE OF 16

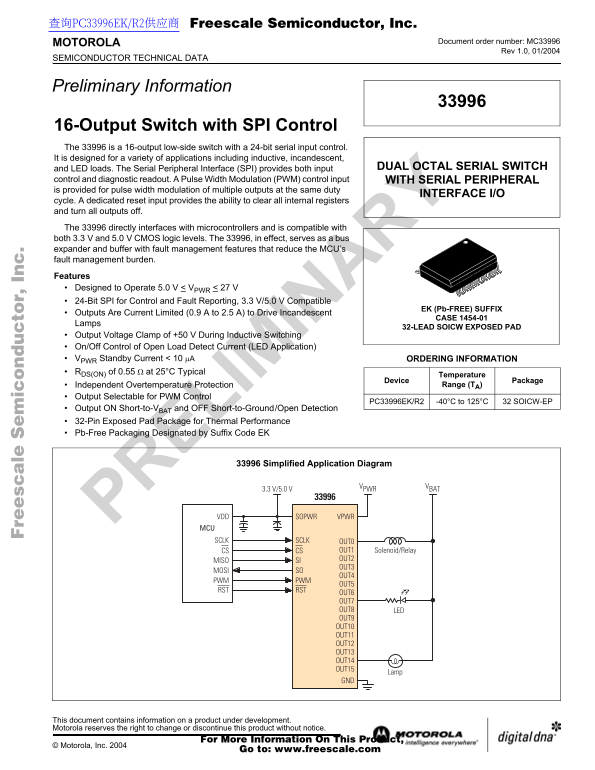

Page 1 Text Content

re sc le ic to r,

查询PC33996EK/R2供应商 Freescale Semiconductor, Inc.

MOTOROLA Document order number: MC33996

Rev 1.0, 01/2004

SEMICONDUCTOR TECHNICAL DATA

Preliminary Information

16-Output Switch with SPI Control The 33996 is a 16-output low-side switch with a 24-bit serial input control. It is designed for a variety of applications including inductive, incandescent,

and LED loads. The Serial Peripheral Interface (SPI) provides both input DUAL OCTAL SERIAL SWITCH

control and diagnostic readout. A Pulse Width Modulation (PWM) control input WITH SERIAL PERIPHERAL is provided for pulse width modulation of multiple outputs at the same duty

INTERFACE I/O

cycle. A dedicated reset input provides the ability to clear all internal registers and turn all outputs off. The 33996 directly interfaces with microcontrollers and is compatible with both 3.3 V and 5.0 V CMOS logic levels. The 33996, in effect, serves as a bus expander and buffer with fault management features that reduce the MCU’s fault management burden. Features Designed to Operate 5.0 V < VPWR < 27 V 24-Bit SPI for Control and Fault Reporting, 3.3 V/5.0 V Compatible

EK (Pb-FREE) SUFFIX

Outputs Are Current Limited (0.9 A to 2.5 A) to Drive Incandescent

CASE 1454-01

Lamps

32-LEAD SOICW EXPOSED PAD

Output Voltage Clamp of +50 V During Inductive Switching On/Off Control of Open Load Detect Current (LED Application) VPWR Standby Current < 10 µA ORDERING INFORMATION RDS(ON) of 0.55 Ω at 25°C Typical

Temperature

Device Package

Independent Overtemperature Protection Range (TA)

Output Selectable for PWM Control

PC33996EK/R2 -40°C to 125°C SOICW-EP

Output ON Short-to-VBAT and OFF Short-to-Ground/Open Detection 32-Pin Exposed Pad Package for Thermal Performance Pb-Free Packaging Designated by Suffix Code EK

Simplified Application Diagram 33996 Simplified Application Diagram

VPWR VBAT

VDD SOPWR VPWR MCU

SCLKSCLK OUT0

CSCS OUT1 Solenoid/Relay SIMISO OUT2 OUT3

SOMOSI

PWMPWM

RSTRST

OUT6 OUT7 OUT8 LED OUT9 OUT10 OUT11 OUT12 OUT13 OUT14 OUT15

This document contains information on a product under development. Motorola reserves the right to change or discontinue this product without notice.

For More Information On This Product,

© Motorola, Inc. 2004

Go to: www.freescale.com

Page Summary Contents For Motorola 33996 Data Sheet/Manual

Page 1 re sc le ic to r, 查询PC33996EK/R2供应商 Freescale Semiconductor, Inc. MOTOROLA Document order number: MC33996 Rev 1.0, 01/2004 SEMICONDUCTOR TECHNICAL DATA Preliminary Information 16-Output Switch with SP...
Page 2 re sc le ic to r, Freescale Semiconductor, Inc. VDD Overvoltage Voltage VDD Detect Regulator Bias 50 V OVD GE PWM OT VDD Gate OUT1–OUT15: Control RB 2, 4, 5, 12, 13, OF10 µA To Gates RST SFPDB 1to15 S...
Page 3 re sc le ic to r, Freescale Semiconductor, Inc. OUT0 OUT151 OUT1 OUT14 SOPWR PWM OUT2 OUT13 OUT3 OUT12 VPWR RST GND GND GND GND GND GND GND GND SCLK SO OUT4 OUT11 OUT5 OUT10 CS SI OUT6 OUT9 OUT7 OUT8 ...
Page 4 re sc le ic to r, Freescale Semiconductor, Inc. MAXIMUM RATINGS All voltages are with respect to ground unless otherwise noted. Rating Symbol Value Unit VPWR Supply Voltage (Note 1) VPWR -1.5 to 50 SO...
Page 5 re sc le ic to r, Freescale Semiconductor, Inc. STATIC ELECTRICAL CHARACTERISTICS Characteristics noted under conditions 3.1 V ≤ SOPWR ≤ 5.5 V, 5.0 V ≤ VPWR ≤ 18 V, -40°C ≤ TC ≤ 125°C unless otherwise...
Page 6 re sc le ic to r, Freescale Semiconductor, Inc. STATIC ELECTRICAL CHARACTERISTICS (continued) Characteristics noted under conditions 3.1 V ≤ SOPWR ≤ 5.5 V, 5.0 V ≤ VPWR ≤ 18 V, -40°C ≤ TC ≤ 125°C unle...
Page 7 re sc le ic to r, Freescale Semiconductor, Inc. DYNAMIC ELECTRICAL CHARACTERISTICS Characteristics noted under conditions of 3.1 V ≤ SOPWR ≤ 5.5 V, 5.0 V ≤ VPWR ≤ 18 V, -40°C ≤ TC ≤ 125°C unless other...
Page 8 re sc le ic to r, Freescale Semiconductor, Inc. Timing Diagram CS 0.2 VDD LEAD LAG 0.7 VDD SCLK 0.2 VDD t SI(su) t SI(hold) 0.7 VDD SI MSB IN 0.2 VDD t SO(en) t SO(dis) VALID 0.7 VDD SO Don't VTri-Sta...
Page 9 re sc le ic to r, Freescale Semiconductor, Inc. SYSTEM/APPLICATION INFORMATION INTRODUCTION The 33996 is designed and developed for automotive and and independent DMOS power output transistors. Many i...
Page 10 re sc le ic to r, Freescale Semiconductor, Inc. MC68HCXX Microcontroller Shift Register SCLK CS Parallel Ports SO SCLK CS PWM RST Figure 5. Parallel Inputs SPI Control FUNCTIONAL PIN DESCRIPTION Chip ...
Page 11 re sc le ic to r, Freescale Semiconductor, Inc. to output 0. Refer to the LOGIC OPERATION section (below) Battery Input (VPWR) Pin for more information. The SI/SO shifting of data follows a first- The...
Page 12 re sc le ic to r, Freescale Semiconductor, Inc. Open Load Current Enable Control Register AND/OR Control Register The Open Load Current Enable Control register is provided The AND/OR Control register ...
Page 13 re sc le ic to r, Freescale Semiconductor, Inc. FAULT OPERATION On each SPI communication, a 24-bit command word is sent Command Register Definition: to the 33996 and 24-bit fault word is received fro...
Page 14 re sc le ic to r, Freescale Semiconductor, Inc. source voltage of the specific MOSFET output to an internally Output Voltage Clamp generated reference. Each output has one dedicated Each output of the...
Page 15 re sc le ic to r, Freescale Semiconductor, Inc. PACKAGE DIMENSIONS EK (Pb-FREE) SUFFIX 32-LEAD SOICW EXPOSED PAD PLASTIC PACKAGE CASE 1454-01 ISSUE O PIN 1 ID CL10.9 NOTES: 1. ALL DIMENSIONS ARE IN MI...
Page 16 re sc le ic to r, Freescale Semiconductor, Inc. Information in this document is provided solely to enable system and software implementers to use Motorola products. There are no express or implied cop...
