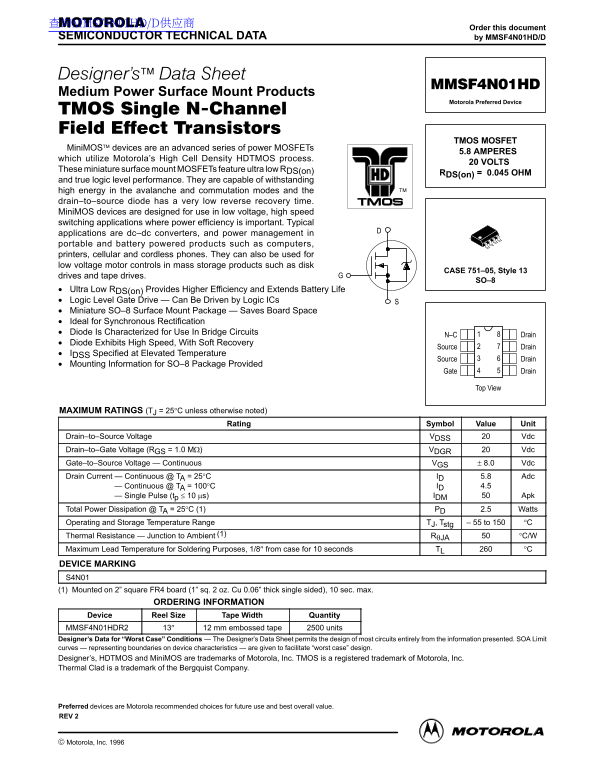

Page 1 Text Content

查询MMSF4N01HD/D供应商

Order this document

SEMICONDUCTOR TECHNICAL DATA by MMSF4N01HD/D

Medium Power Surface Mount Products

Motorola Preferred Device

TMOS MOSFET

Mini MOS devices are an advanced series of power MOSFETs

5.8 AMPERES

which utilize Motorola’s High Cell Density HDTMOS process.

20 VOLTS

These miniature surface mount MOSFETs feature ultra low RDS(on)

RDS(on) = 0.045 OHM

and true logic level performance. They are capable of withstanding high energy in the avalanche and commutation modes and the drain–to–source diode has a very low reverse recovery time. Mini MOS devices are designed for use in low voltage, high speed switching applications where power efficiency is important. Typical applications are dc–dc converters, and power management in portable and battery powered products such as computers, printers, cellular and cordless phones. They can also be used for low voltage motor controls in mass storage products such as disk

CASE 751–05, Style 13

drives and tape drives.

Ultra Low RDS(on) Provides Higher Efficiency and Extends Battery Life Logic Level Gate Drive — Can Be Driven by Logic ICs Miniature SO–8 Surface Mount Package — Saves Board Space Ideal for Synchronous Rectification Diode Is Characterized for Use In Bridge Circuits

N–C Drain

Diode Exhibits High Speed, With Soft Recovery

Source Drain

IDSS Specified at Elevated Temperature

Source Drain

Mounting Information for SO–8 Package Provided

Gate Drain

Top View

MAXIMUM RATINGS (TJ = 25°C unless otherwise noted)

Rating Symbol Value Unit

Drain–to–Source Voltage VDSS Vdc Drain–to–Gate Voltage (RGS = 1.0 MΩ) VDGR Vdc Gate–to–Source Voltage — Continuous VGS 8.0 Vdc Drain Current — Continuous @ TA = 25°C ID 5.8 Adc

Drain Current — Continuous @ TA = 100°C ID 4.5 Drain Current — Single Pulse (tp ≤ 10 µs) IDM Apk

Total Power Dissipation @ TA = 25°C (1) PD 2.5 Watts Operating and Storage Temperature Range TJ, Tstg 55 to 150 °C Thermal Resistance — Junction to Ambient (1) RθJA °C/W Maximum Lead Temperature for Soldering Purposes, 1/8″ from case for 10 seconds TL °C DEVICE MARKING S4N01 (1) Mounted on 2” square FR4 board (1” sq. 2 oz. Cu 0.06” thick single sided), 10 sec. max.

ORDERING INFORMATION

Device Reel Size Tape Width Quantity MMSF4N01HDR2 13″ 12 mm embossed tape 2500 units Designer’s Data for “Worst Case” Conditions The Designer’s Data Sheet permits the design of most circuits entirely from the information presented. SOA Limit curves representing boundaries on device characteristics are given to facilitate “worst case” design. Designer’s, HDTMOS and Mini MOS are trademarks of Motorola, Inc. TMOS is a registered trademark of Motorola, Inc. Thermal Clad is a trademark of the Bergquist Company.

Preferred devices are Motorola recommended choices for future use and best overall value. REV 2

1Motorola TMOS Power MOSFET Transistor Device Data

 Motorola, Inc. 1996

Page Summary Contents For MOTOROLA MMSF4N01HD Data Sheet/Manual

Page 1 查询MMSF4N01HD/D供应商 Order this document SEMICONDUCTOR TECHNICAL DATA by MMSF4N01HD/D Medium Power Surface Mount Products Motorola Preferred Device TMOS MOSFET Mini MOS devices are an advanced series of...
Page 2 ELECTRICAL CHARACTERISTICS (TC = 25°C unless otherwise noted) Characteristic Symbol Min Typ Max Unit OFF CHARACTERISTICS Drain–to–Source Breakdown Voltage V(BR)DSS Vdc (VGS = 0 Vdc, ID = 0.25 m Adc) T...
Page 3 TYPICAL ELECTRICAL CHARACTERISTICS S( on AI –T –S ES IS TA AI –T –S ES IS TA (O S) S( on , D AI EN (A PS VGS = 8 V (N AL IZ ED TJ = 25°C VDS ≥ 10 V TJ = – 55°C VDS, DRAIN–TO–SOURCE VOLTAGE (VOLTS) VGS...
Page 4 POWER MOSFET SWITCHING Switching behavior is most easily modeled and predicted The capacitance (Ciss) is read from the capacitance curve at by recognizing that the power MOSFET is charge controlled. a...
Page 5 VDD = 6 V ID = 4 A S, AT E– TO –S VO LT AG (V LT S) VGS = 4.5 V VGS tf TJ = 25°C td(off) td(on) ID = 4 A TJ = 25°C , S EN (A PS 0.1 QT, TOTAL CHARGE (n C) RG, GATE RESISTANCE (OHMS) Figure 8. Gate–To–...
Page 6 di/dt = 300 A/µs Standard Cell Density High Cell Density trr , D AI EN (A PS , S EN t, TIME Figure 11. Reverse Recovery Time (trr) SAFE OPERATING AREA The Forward Biased Safe Operating Area curves def...
Page 7 TYPICAL ELECTRICAL CHARACTERISTICS th ja (t) , E FF EC TI VE AN SI EN TH ER AL ES IS TA 0.05 Normalized to θja at 10s. Chip 0.0022 Ω 0.0210 Ω 0.2587 Ω 0.7023 Ω 0.6863 Ω Ambient SINGLE PULSE t, TIME (s...
Page 8 INFORMATION FOR USING THE SO–8 SURFACE MOUNT PACKAGE MINIMUM RECOMMENDED FOOTPRINT FOR SURFACE MOUNTED APPLICATIONS Surface mount board layout is a critical portion of the total between the board and ...
Page 9 TYPICAL SOLDER HEATING PROFILE For any given circuit board, there will be a group of control line on the graph shows the actual temperature that might be settings that will give the desired heat patte...
Page 10 PACKAGE DIMENSIONS NOTES: 1. DIMENSIONS A AND B ARE DATUMS AND T IS A DATUM SURFACE. 2. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 3. DIMENSIONS ARE IN MILLIMETER. 4. DIMENSION A AND B DO NOT...
