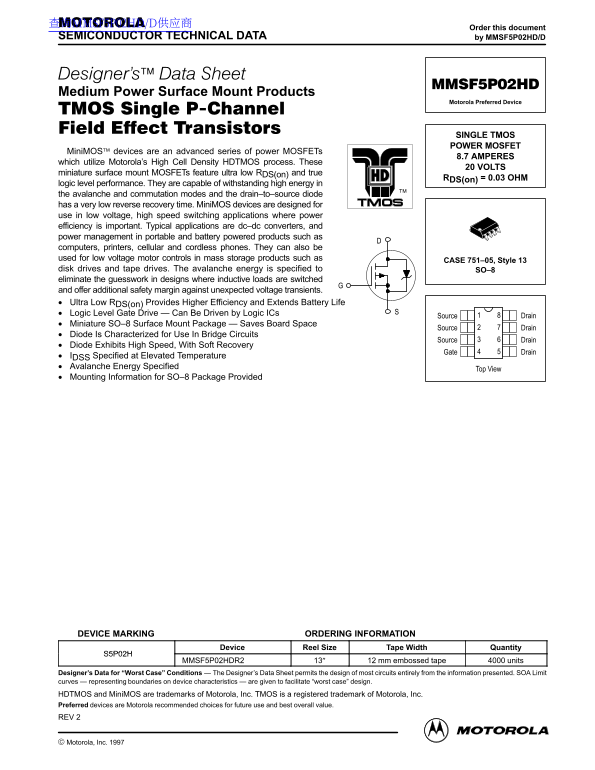

SEMICONDUCTOR TECHNICAL DATA by MMSF5P02HD/D

Medium Power Surface Mount Products

Motorola Preferred Device

SINGLE TMOS POWER MOSFET

Mini MOS devices are an advanced series of power MOSFETs

8.7 AMPERES

which utilize Motorola’s High Cell Density HDTMOS process. These

20 VOLTS

miniature surface mount MOSFETs feature ultra low RDS(on) and true

RDS(on) = 0.03 OHM

logic level performance. They are capable of withstanding high energy in the avalanche and commutation modes and the drain–to–source diode has a very low reverse recovery time. Mini MOS devices are designed for use in low voltage, high speed switching applications where power efficiency is important. Typical applications are dc–dc converters, and power management in portable and battery powered products such as computers, printers, cellular and cordless phones. They can also be used for low voltage motor controls in mass storage products such as

CASE 751–05, Style 13

disk drives and tape drives. The avalanche energy is specified to SO–8 eliminate the guesswork in designs where inductive loads are switched and offer additional safety margin against unexpected voltage transients. Ultra Low RDS(on) Provides Higher Efficiency and Extends Battery Life Logic Level Gate Drive — Can Be Driven by Logic ICs

Source Drain

Miniature SO–8 Surface Mount Package — Saves Board Space

Source Drain

Diode Is Characterized for Use In Bridge Circuits

Source Drain

Diode Exhibits High Speed, With Soft Recovery

Gate Drain

IDSS Specified at Elevated Temperature Avalanche Energy Specified

Top View

Mounting Information for SO–8 Package Provided

DEVICE MARKING ORDERING INFORMATION

Device Reel Size Tape Width Quantity

MMSF5P02HDR2 13″ 12 mm embossed tape 4000 units

Designer’s Data for “Worst Case” Conditions The Designer’s Data Sheet permits the design of most circuits entirely from the information presented. SOA Limit curves representing boundaries on device characteristics are given to facilitate “worst case” design. HDTMOS and Mini MOS are trademarks of Motorola, Inc. TMOS is a registered trademark of Motorola, Inc. Preferred devices are Motorola recommended choices for future use and best overall value. REV 2

1Motorola TMOS Power MOSFET Transistor Device Data

 Motorola, Inc. 1997

Page Summary Contents For MOTOROLA MMSF5P02HD Data Sheet/Manual

Page 1 查询MMSF5P02HD/D供应商 Order this document SEMICONDUCTOR TECHNICAL DATA by MMSF5P02HD/D Medium Power Surface Mount Products Motorola Preferred Device SINGLE TMOS POWER MOSFET Mini MOS devices are an advan...
Page 2 MAXIMUM RATINGS (TJ = 25°C unless otherwise noted) Negative sign for P–Channel devices omitted for clarity Rating Symbol Max Unit Drain–to–Source Voltage VDSS Drain–to–Gate Voltage (RGS = 1.0 MΩ) VDGR...
Page 3 ELECTRICAL CHARACTERISTICS (TC = 25°C unless otherwise noted) Characteristic Symbol Min Typ Max Unit OFF CHARACTERISTICS Drain–to–Source Breakdown Voltage (Cpk ≥ 2.0) (1) (3) V(BR)DSS Vdc (VGS = 0 Vdc...
Page 4 TYPICAL ELECTRICAL CHARACTERISTICS , D AI –T –S ES IS TA AI –T –S ES IS TA (O S) , D AI EN (A PS S( on S( on VGS = (N AL IZ ED VDS ≥ 10 V TJ = 25°C TJ = –55°C VDS, DRAIN–TO–SOURCE VOLTAGE (VOLTS) VGS,...
Page 5 POWER MOSFET SWITCHING Switching behavior is most easily modeled and predicted The capacitance (Ciss) is read from the capacitance curve at by recognizing that the power MOSFET is charge controlled. a...
Page 6 TJ = 25°C ID = 1.0 A , G AT E– TO –S VO LT AG (V LT S) 4.0 8.0 VDD = 6.0 V VGS = 4.5 V td(off) VGSVDS 3.0 6.0 tf TJ = 25°C 1.0 ID = 6.4 A 2.0 td(on) , S EN (A PS QG, TOTAL GATE CHARGE (n C) RG, GATE R...
Page 7 di/dt = 300 A/µs Standard Cell Density , D AI EN (A PS High Cell Density trr , S EN t, TIME Figure 11. Reverse Recovery Time (trr) SAFE OPERATING AREA The Forward Biased Safe Operating Area curve (Fig...
Page 8 TYPICAL ELECTRICAL CHARACTERISTICS th ja (t) , E FF EC TI VE AN SI EN TH ER AL ES IS TA 0.05 Normalized to θja at 10s. Chip 0.0163 Ω 0.0652 Ω 0.1988 Ω 0.6411 Ω 0.9502 Ω Ambient SINGLE PULSE t, TIME (s...
Page 9 INFORMATION FOR USING THE SO–8 SURFACE MOUNT PACKAGE MINIMUM RECOMMENDED FOOTPRINT FOR SURFACE MOUNTED APPLICATIONS Surface mount board layout is a critical portion of the total between the board and ...
Page 10 TYPICAL SOLDER HEATING PROFILE For any given circuit board, there will be a group of control line on the graph shows the actual temperature that might be settings that will give the desired heat patte...
Page 11 PACKAGE DIMENSIONS NOTES: 1. DIMENSIONS A AND B ARE DATUMS AND T IS A DATUM SURFACE. 2. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982. 3. DIMENSIONS ARE IN MILLIMETER. 4. DIMENSION A AND B DO NOT...
Page 12 Motorola reserves the right to make changes without further notice to any products herein. Motorola makes no warranty, representation or guarantee regarding the suitability of its products for any par...
