This advanced MC74AC/MC74ACT triple 3-input AND Gate IC is a critical component for robust digital logic design. The manual provides comprehensive engineering data, covering detailed operational characteristics, precise timing diagrams, and maximum electrical ratings across various temperature ranges. It is designed for electrical engineers and hardware designers who require highly reliable, high-performance integrated circuit gate solutions for developing complex electronic systems and embedded applications.

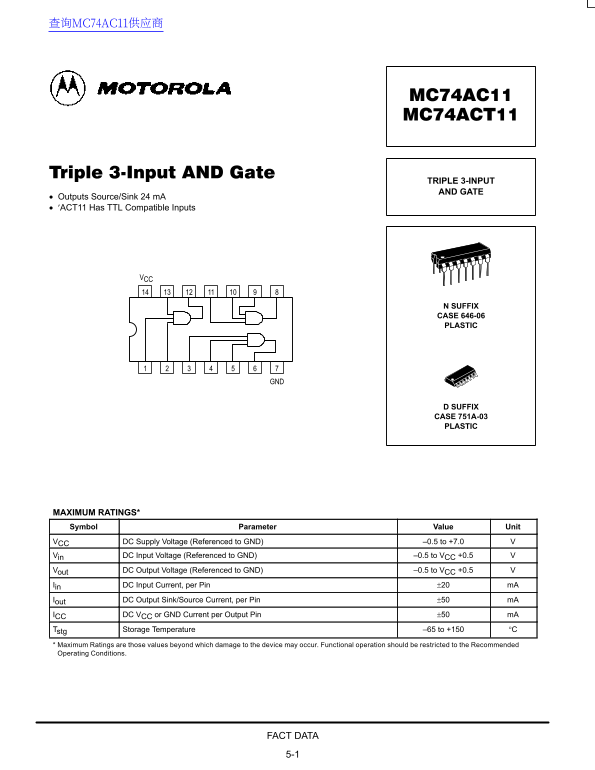

Page 1 Text Content
查询MC74AC11供应商
TRIPLE 3-INPUT AND GATE
Outputs Source/Sink 24 m A ′ACT11 Has TTL Compatible Inputs
N SUFFIX CASE 646-06 PLASTIC
D SUFFIX CASE 751A-03 PLASTIC
MAXIMUM RATINGS* Symbol Parameter Value Unit VCC DC Supply Voltage (Referenced to GND) –0.5 to +7.0 Vin DC Input Voltage (Referenced to GND) –0.5 to VCC +0.5 Vout DC Output Voltage (Referenced to GND) –0.5 to VCC +0.5 Iin DC Input Current, per Pin ±20 m A Iout DC Output Sink/Source Current, per Pin ±50 m A ICC DC VCC or GND Current per Output Pin ±50 m A Tstg Storage Temperature –65 to +150 °C Maximum Ratings are those values beyond which damage to the device may occur. Functional operation should be restricted to the Recommended Operating Conditions.
FACT DATA 5-1
