The MC10E/MC100E122 is a robust 9-bit non-inverting buffer gate designed for high-speed logic buffering applications. This comprehensive technical manual serves as an essential resource for electronics engineers and hardware designers, detailing the device's electrical specifications, DC/AC characteristics, propagation delays, pin configurations, and physical package dimensions. It ensures precise component selection and reliable integration into complex digital circuit board designs, making it vital for prototyping and professional PCB development projects.

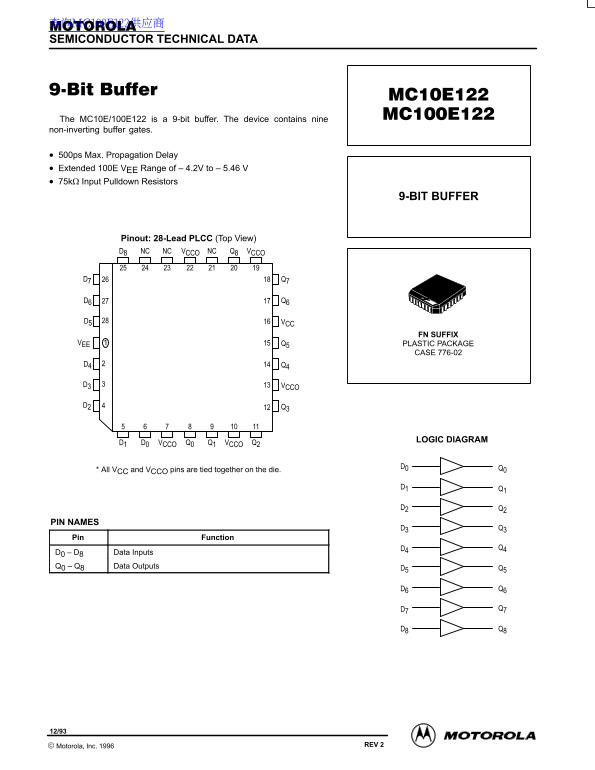

Page 1 Text Content
查询MC100E122供应商 SEMICONDUCTOR TECHNICAL DATA
The MC10E/100E122 is a 9-bit buffer. The device contains nine non-inverting buffer gates.
500ps Max. Propagation Delay Extended 100E VEE Range of – 4.2V to – 5.46 V 75kΩ Input Pulldown Resistors
9-BIT BUFFER
Pinout: 28-Lead PLCC (Top View)
VCCO Q8 VCCONCNCNCD8
D5 VCC
FN SUFFIX
VEE Q5 PLASTIC PACKAGE
CASE 776-02
D3 VCCO
LOGIC DIAGRAM
D1 D0 VCCO Q0 Q1 VCCO Q2
* All VCC and VCCO pins are tied together on the die.
PIN NAMES
Pin Function
D0 – D8 Data Inputs Q0 – Q8 Data Outputs
2–1 REV 2 Motorola, Inc. 1996
Page Summary Contents For Motorola MC10E122 MC100E122 Data Manual
Manual Details
| Brand | Motorola |
|---|---|
| Pages | 4 |
| File Size | 95.57 KB |
| Published | June 01, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the operational voltage range for the 100E version of this buffer?
It supports an extended 100E V Range from –4.2V to –5.46V EE.
Are typical electrical parameters guaranteed for all applications?
No; all operating parameters, including 'Typicals,' must be validated by the customer's technical experts for each application.
What is the maximum specified propagation delay (tPLH)?
The maximum specified propagation delay (PLH) is 500 picoseconds ps.
Can this component be used in life support systems or medical implants?
No. It is not designed, intended, or authorized for use as components in systems intended for surgical implant into the body or required to sustain life.
