HITACHI CUSTOMER S ACCEPTANCE SPECIFICATIONS SP14Q002- C2A CONTENTS
Summary
This comprehensive manual specifies a high-performance electronic display panel, ideal for embedding into advanced industrial or consumer devices. It serves as an essential resource for engineers and system integrators, detailing everything from electrical limits and optical performance to intricate dimensions and durability requirements. The document covers detailed specifications on structural integrity, environmental ratings (temperature/humidity), interface protocols, and appearance quality assurance for professional product development.

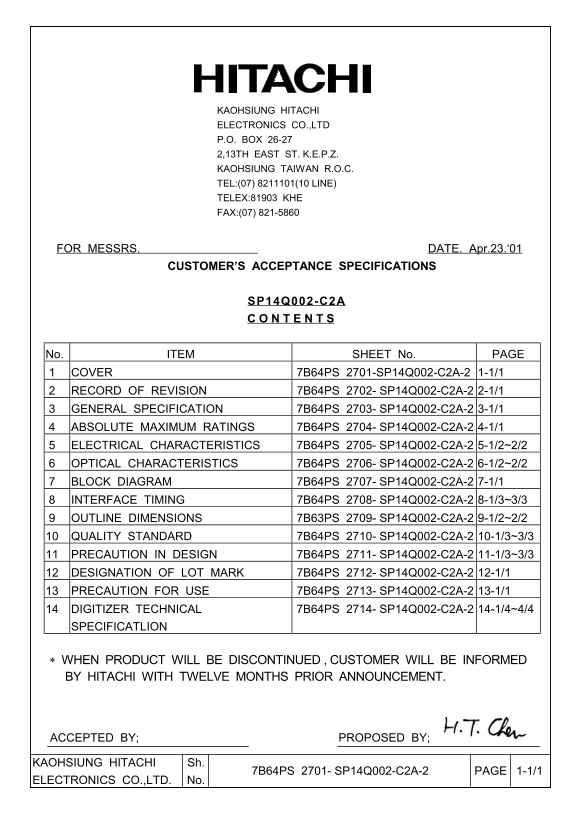

Page 1 Text Content
KAOHSIUNG HITACHI ELECTRONICS CO.,LTD P.O. BOX 26-27 2,13TH EAST ST. K.E.P.Z. KAOHSIUNG TAIWAN R.O.C. TEL:(07) 8211101(10 LINE) TELEX:81903 KHE FAX:(07) 821-5860
FOR MESSRS. DATE. Apr.23.‘01 CUSTOMER’S ACCEPTANCE SPECIFICATIONS
SP14Q002-C2A
No. ITEM SHEET No. PAGE COVER 7B64PS 2701-SP14Q002-C2A-2 1-1/1 RECORD OF REVISION 7B64PS 2702- SP14Q002-C2A-2 2-1/1 GENERAL SPECIFICATION 7B64PS 2703- SP14Q002-C2A-2 3-1/1 ABSOLUTE MAXIMUM RATINGS 7B64PS 2704- SP14Q002-C2A-2 4-1/1 ELECTRICAL CHARACTERISTICS 7B64PS 2705- SP14Q002-C2A-2 5-1/2~2/2 OPTICAL CHARACTERISTICS 7B64PS 2706- SP14Q002-C2A-2 6-1/2~2/2 BLOCK DIAGRAM 7B64PS 2707- SP14Q002-C2A-2 7-1/1 INTERFACE TIMING 7B64PS 2708- SP14Q002-C2A-2 8-1/3~3/3 OUTLINE DIMENSIONS 7B63PS 2709- SP14Q002-C2A-2 9-1/2~2/2 QUALITY STANDARD 7B64PS 2710- SP14Q002-C2A-2 10-1/3~3/3 PRECAUTION IN DESIGN 7B64PS 2711- SP14Q002-C2A-2 11-1/3~3/3 DESIGNATION OF LOT MARK 7B64PS 2712- SP14Q002-C2A-2 12-1/1 PRECAUTION FOR USE 7B64PS 2713- SP14Q002-C2A-2 13-1/1 DIGITIZER TECHNICAL 7B64PS 2714- SP14Q002-C2A-2 14-1/4~4/4 SPECIFICATLION
∗ WHEN PRODUCT WILL BE DISCONTINUED , CUSTOMER WILL BE INFORMED BY HITACHI WITH TWELVE MONTHS PRIOR ANNOUNCEMENT.
ACCEPTED BY; PROPOSED BY;
KAOHSIUNG HITACHI Sh.
7B64PS 2701- SP14Q002-C2A-2 PAGE 1-1/1
ELECTRONICS CO.,LTD. No.
Page Summary Contents For HITACHI CUSTOMER S ACCEPTANCE SPECIFICATIONS SP14Q002- C2A CONTENTS
Manual Details
| Brand | Hitachi |
|---|---|
| Pages | 26 |
| File Size | 404.62 KB |
| Published | May 22, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the maximum power supply requirements for logic and LC drive?
The power supply for logic is 0 to 7.0 V, while the power for the LC drive is 0 to 30 V.
What are the standard operating temperature and humidity ranges?
Operating temperatures range from 0°C to 60°C, with humidity noted generally requires operation without condensation.
If I operate this module at 0°C, what should I be aware of regarding performance?
The life time of the CFL will be reduced, and the response time at 0°C will also be slower.
What are the acceptable limits for glass indentation and corner breakage?
Corner indentation must have X/Y <=2.0 and Z <=5.0; general indentation cannot include the seal area.
