HITACHI HD74HC01 Data Sheet/Specifications
Summary
A high-performance logic gate IC featuring Quad 2-input NAND gates with open drain outputs. Designed for digital circuit applications requiring fast switching and wide voltage operation (2V to 6V), this chip is ideal for electronics professionals and hardware designers. The included manual provides comprehensive details on electrical characteristics, including precise timing diagrams, input/output voltages, current specs, and package dimensions, ensuring reliable integration into complex control systems and digital devices.

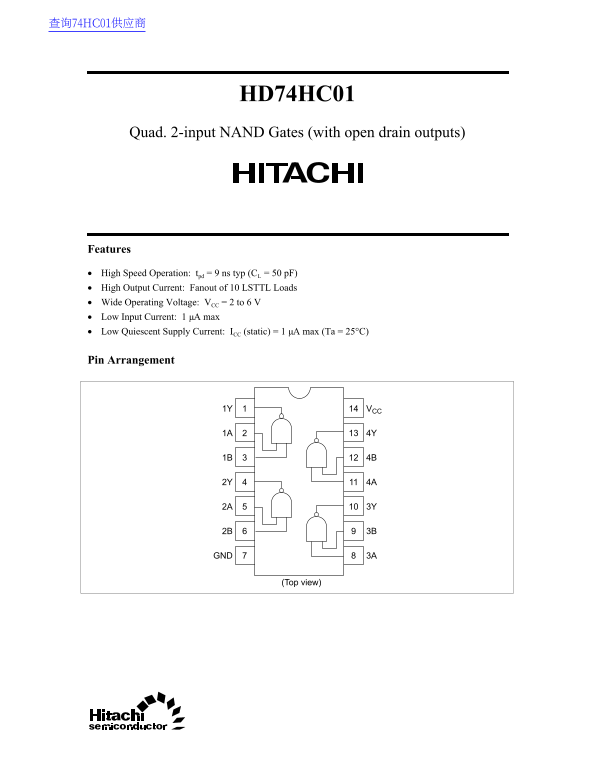

Page 1 Text Content
查询74HC01供应商
HD74HC01
Quad. 2-input NAND Gates (with open drain outputs)
Features
• High Speed Operation: tpd = 9 ns typ (CL = 50 p F) • High Output Current: Fanout of 10 LSTTL Loads • Wide Operating Voltage: VCC = 2 to 6 V • Low Input Current: 1 µA max • Low Quiescent Supply Current: ICC (static) = 1 µA max (Ta = 25°C)
Pin Arrangement
1Y VCC
GND 3A
(Top view)
Page Summary Contents For HITACHI HD74HC01 Data Sheet/Specifications
Manual Details
| Brand | Hitachi |
|---|---|
| Pages | 7 |
| File Size | 40.41 KB |
| Published | June 05, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the stable operating voltage range for this IC?
This device operates with a wide supply voltage ($V_{CC}$) ranging from $2 ext{ V}$ to $6 ext{ V}$.
How many output loads can I connect?
The 74HC01 provides a high fanout of 10 LSTTL Loads.
What is the typical propagation delay time?
At $V_{CC}=4.5 ext{ V}$ and load capacitance ($C=50 ext{ pF}$), the typical propagation delay ($ ext{t}_{PD}$) is $90 ext{ ns}$.
