Hitachi 2SK1095 Data Sheet
Summary
This N-Channel MOS FET power switch is engineered for high-speed performance, featuring low on-resistance and efficient switching characteristics. It provides robust solutions suitable for demanding applications such as motor drives, DC-DC converters, and solenoid control systems. The manual offers comprehensive technical details, including absolute maximum ratings, detailed electrical parameters (like channel dissipation and capacitance), and operational graphs necessary for reliable circuit design.

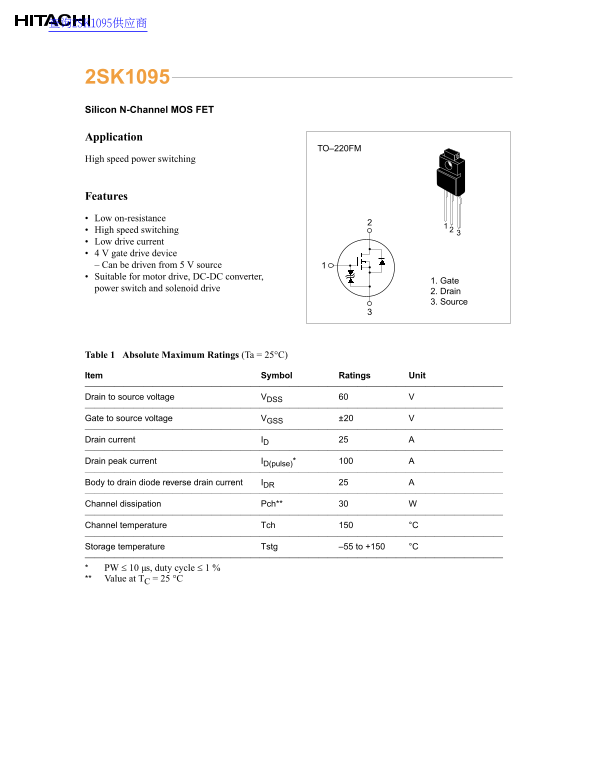

Page 1 Text Content
查询2SK1095供应商
2SK1095 Silicon N-Channel MOS FET Application
TO–220FM
High speed power switching
Features Low on-resistance High speed switching Low drive current 4 V gate drive device – Can be driven from 5 V source Suitable for motor drive, DC-DC converter,
1. Gate
power switch and solenoid drive
2. Drain 3. Source
Table 1 Absolute Maximum Ratings (Ta = 25°C)
Item Symbol Ratings Unit ——————————————————————————————————————————— Drain to source voltage VDSS ——————————————————————————————————————————— Gate to source voltage VGSS ±20 ——————————————————————————————————————————— Drain current ID ——————————————————————————————————————————— Drain peak current ID(pulse)* ——————————————————————————————————————————— Body to drain diode reverse drain current IDR ——————————————————————————————————————————— Channel dissipation Pch** ——————————————————————————————————————————— Channel temperature Tch °C ——————————————————————————————————————————— Storage temperature Tstg –55 to +150 °C ——————————————————————————————————————————— PW ≤ 10 µs, duty cycle ≤ 1 % Value at TC = 25 °C
Page Summary Contents For Hitachi 2SK1095 Data Sheet
Manual Details
| Brand | Hitachi |
|---|---|
| Pages | 3 |
| File Size | 18.47 KB |
| Published | June 05, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the maximum working voltages for this FET?
The absolute maximum ratings support a Drain to source voltage (VDSS) of 60 V and Gate to source voltage (VGS) of ±20 V.
How fast does the device switch on and off?
The specified times are a turn-on delay of 15 ns, rise time of 130 ns, and fall time of 180 ns.
What commercial applications is this component suitable for?
It is suitable for motor drive, DC-DC converter, and gate power switch/solenoid drive applications.
What is the maximum continuous heat dissipation?
The channel dissipation (Pch) can be up to 30 W at room temperature.
