HITACHI HD14068B Data Sheet/Manual

Summary

This technical manual provides comprehensive specifications for high-precision electronic components, including detailed dimensional data, material grades, and various model variations. It covers standards compliance (JEDEC, EIAJ) and critical operational guidelines needed during product integration. This resource is essential for electrical engineers and designers building systems that require exceptional reliability in sensitive industrial applications such as medical, aerospace, and power control equipment.

📄 Preview ‹ PAGE OF 7 ›

‹

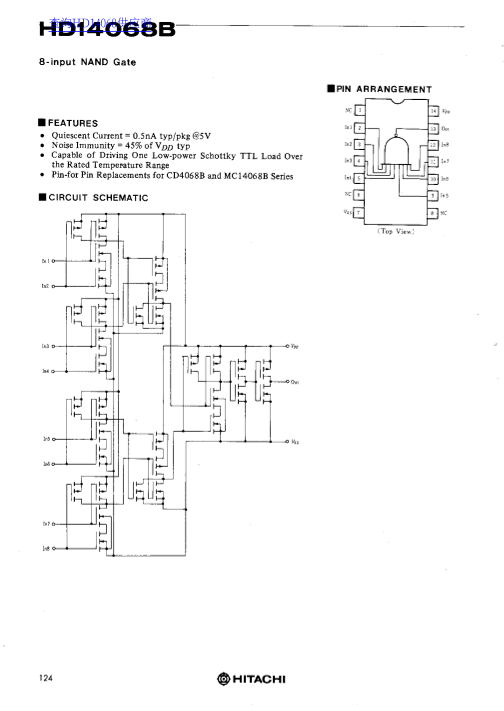

HITACHI HD14068B Data Sheet/Manual - Page 1

›

Page 1 Text Content

查询HD14068供应商

Page Summary Contents For HITACHI HD14068B Data Sheet/Manual

Page 1 查询HD14068供应商

Page 4 6. .4 ax 0. in 2. in 5. ax Unit: mm 19.20 20.32 Max 2.39 Max 7.62 Hitachi Code DP-14 JEDEC Conforms EIAJ Conforms Weight (reference value) 0.97 g

Page 5 2. ax Unit: mm 10.06 10.5 Max 1.42 Max 1.15 Hitachi Code FP-14DA JEDEC *Dimension including the plating thickness EIAJ Conforms Base material dimension Weight (reference value) 0.23 g

Page 6 1. ax Unit: mm 8.65 9.05 Max 0.635 Max Hitachi Code FP-14DN JEDEC Conforms EIAJ Conforms *Pd plating Weight (reference value) 0.13 g

Page 7 Cautions 1. Hitachi neither warrants nor grants licenses of any rights of Hitachi’s or any third party’s patent, copyright, trademark, or other intellectual property rights for information contained i...
