This product manual is the comprehensive technical specification for the INVC817 backlight inverter, designed to operate cold cathode fluorescent lamps in Liquid-Crystal Display (LCD) modules. It serves as a critical guide for engineers and designers, detailing all necessary operational parameters, including electrical characteristics (voltage range, current draw), performance metrics, physical dimensions, and reliability testing data. Furthermore, the manual provides essential precautions for proper circuit design and high-voltage wiring to ensure optimal module integration and long-term product safety.

📄 Preview ‹ PAGE OF 9 ›

‹

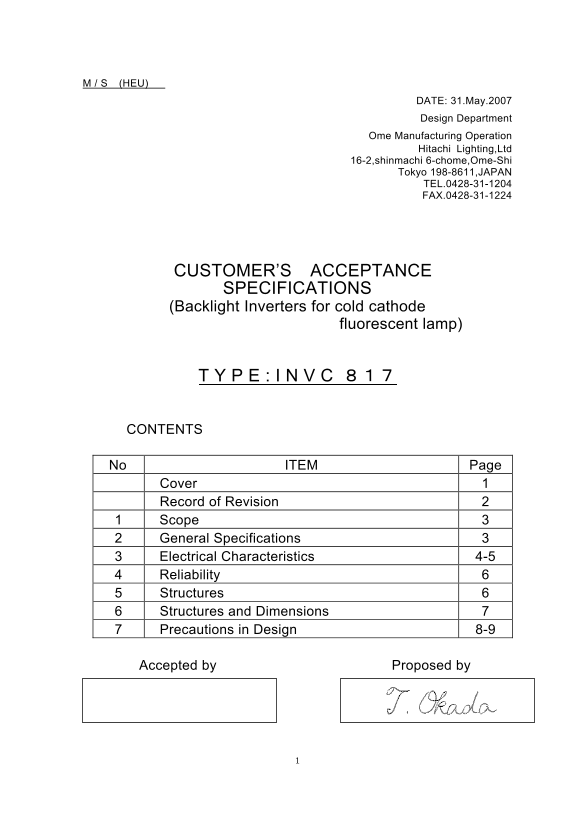

Hitachi Customer Acceptance Specifications - User's Manual & Instructions - Page 1

›

Page 1 Text Content

M / S (HEU)

DATE: 31.May.2007 Design Department

Ome Manufacturing Operation

Hitachi Lighting,Ltd

16-2,shinmachi 6-chome,Ome-Shi

Tokyo 198-8611,JAPAN TEL.0428-31-1204 FAX.0428-31-1224

CUSTOMER’S ACCEPTANCE SPECIFICATIONS (Backlight Inverters for cold cathode fluorescent lamp)

CONTENTS

No ITEM Page Cover 1 Record of Revision 2 1 Scope 3 2 General Specifications 3 3 Electrical Characteristics 4-5 4 Reliability 6 5 Structures 6 6 Structures and Dimensions 7 7 Precautions in Design 8-9

Accepted by Proposed by

Page Summary Contents For Hitachi Customer Acceptance Specifications - User's Manual & Instructions

Page 1 M / S (HEU) DATE: 31.May.2007 Design Department Ome Manufacturing Operation Hitachi Lighting,Ltd 16-2,shinmachi 6-chome,Ome-Shi Tokyo 198-8611,JAPAN TEL.0428-31-1204 FAX.0428-31-1224 CUSTOMER’S ACCEPT...

Page 2 Record of Revision DATE PAGE SUMMARY Date Code & Rev. 31.May.2007 NEW

Page 3 1. Scope 1.1 This specification shall apply to inverter INVC817 to operate a cold cathode fluorescent lamp in the liquid-crystal display (LCD). 1.2 This inverter INVC817 is designed and adjusted for K...

Page 4 3. Electrical Characteristics 3.1.Maximum rating Items Min. Typ. Max. unit Remarks Input voltage 7.0 --- 18.0 V 3.2.Operationg Characteristics K-C160T3E54 Lamp AT=25deg.C Item Min Typ Max Unit Remarks...

Page 5 All characteristics are measured by our certain test equipment. The measurement of condition should be stable lighting (more than 30 minutes after startup :at 25+/-1deg.C and no breath of wind) (The m...

Page 6 4.Reliability Item Test condition Low temp. operate 0deg.C, 12.0V, 100%output, 500Hrs High temp. operate 50deg.C, 12.0V, 100%output, 500Hrs Low temp. stock -20deg.C, 500Hrs High temp. stock 70deg.C, 5...

Page 7 6.Structures and Dimensions 2.0MAX Input Connecter Output Connecter (11) Fig.3 Dimensional Outline .Date code : ex ”31E7” 3. 0M

Page 8 7.Precautions in Design 7.1 Please turn off the power supply of the inverter before the out put connector (CN2) be put in or put off. Because voltage of the output connector is very high. 7.2 The high...

Page 9 7.8 Pay attention as printed circuit board is bent, and not adding excessive pressure when printed circuit board is built in. (Deterioration and the damage of component are caused, and movements of in...

Manual Details

Brand	Hitachi
Pages	9
File Size	104.58 KB
Published	May 22, 2026

76 views

Enter the captcha to get the download link:

Frequently Asked Questions

What are the acceptable operating temperatures?

The ambient temperature for operation ranges from 0 to 50 degrees Celsius.

How should high-voltage wiring be handled near the output connectors?

Use UL1330 equivalents for output leads, keep the length within 150mm, and avoid binding or fitting them near a shield.

What is the nominal output power and operating efficiency?

The nominal output power is 1.7W, with minimum efficiency stated at 65%.

Should I disconnect the power before handling the connectors (CN1/CN2)?

Yes, always turn off the inverter's power supply when putting in or taking out either connector.
