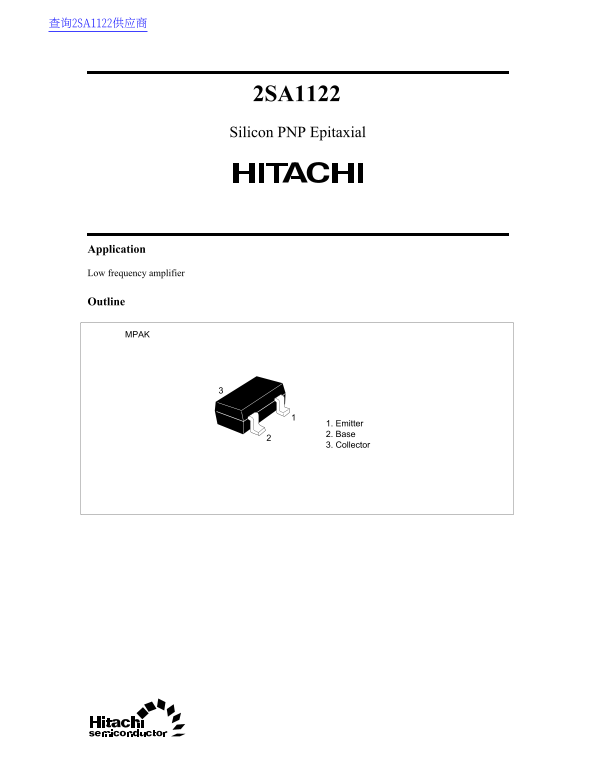

2SA1122 Silicon PNP Epitaxial
Application
Low frequency amplifier
Outline
1. Emitter 2. Base 3. Collector
