HITACHI CP-X955W User Guide
Summary
The comprehensive operating guide for the Hitachi CP-X955W/E Liquid Crystal Projector ensures optimal performance for professional users. This versatile projector accepts various computer and NTSC/PAL/SECAM video signals, offering powerful high brightness and high resolution through a three-sheet LCD panel system. The manual details everything from initial setup and basic operation to advanced signal connection (including RGB input) and portability features, ensuring safe, efficient, and professional deployment in any setting.
Page 1 Text Content

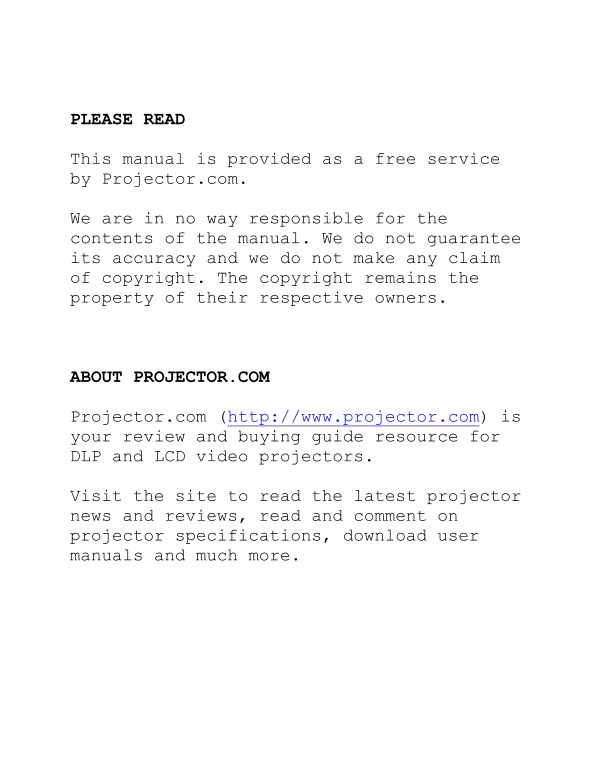

PLEASE READ
This manual is provided as a free service by Projector.com.
We are in no way responsible for the contents of the manual. We do not guarantee its accuracy and we do not make any claim of copyright. The copyright remains the property of their respective owners.
ABOUT PROJECTOR.COM
Projector.com (http://www.projector.com) is your review and buying guide resource for DLP and LCD video projectors.
Visit the site to read the latest projector news and reviews, read and comment on projector specifications, download user manuals and much more.
Page Summary Contents For HITACHI CP-X955W User Guide
Page 1
PLEASE READ This manual is provided as a free service by Projector.com. We are in no way responsible for the contents of the manual. We do not guarantee its accuracy and we do not make any claim of co...
Page 2
Liquid Crystal Projector Model name CP-X955W/E OPERATING GUIDE Thank you very much for purchasing this Hitachi Liquid Crystal Projector. Please read this operating guide to use correctly. After readin...
Page 3
FOR THE CUSTOMERS IN U.K nlo THIS PRODUCT IS SUPPLIED WITH A TWO PIN MAINS PLUG FOR USE IN MAINLAND EUROPE. FOR THE U.K PLEASE REFER TO THE NOTES ON THIS PAGE. ad IMPORTANT FOR UNITED KINGDOM WORDING ...
Page 4
WARNING: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protecti...
Page 5
Dow [Safety precaution] nlo Warning If any abnormality occurs. Do not look directly at the lens when ad When there is an abnormal smell or smoke, if the lamp is lit. you use this unit as it is, this c...
Page 6
nlo Warning Be careful in handling the power cord. Do not scratch, damage or process the power cord. Do not bend it forcibly. Also do not put a heavy object on it, do not heat it and do not pull ed it...
Page 7
nlo Caution Do not step on this unit or do not put a Do not place this unit in a moist or heavy object on it. dusty place. Do not step on this unit. Especially Do not place this unit in a moist or dus...
Page 8
nlo Caution [General cautions] ad LDo not place this unit where it gets hot. Cleaning the cabinet. ed Be careful since if you place the unit Since many plastic materials are used on the outdoors, in a...
Page 9
Dow Names and functions of each part LAMP indicator ON indicator Main unit This lights when the This blinks in the standby mode nlo lamp does not light. and lights in the operation (See page 29) mode....
Page 10
Dow Names and functions of each part (continued) Remote control transmitter STANDBY / ON button MUTE button Power ON/OFF button. Silences the sound. (Cancels the mute OFF sets the unit in standby mode...
Page 11
Dow Names and functions of each part (continued) How to insert batteries insert the provided batteries (LR6 (alkali)) into the remote control transmitter. Remove the battery Insert the batteries as co...
Page 12
Dow Installation Example of the projector and screen installation Determine picture size and projection distance as illustrated below. View from the top ad View from the side Screen ed Lens center fr ...
Page 13
Dow Basic operations To project the picture STANDBY/ON MUTE FOCUS ZOOM VOLUME POSITION ON LASER fr om RESET MENU ON MOUSE ON BLANK TIMER RGB 1/2 VIDEO 1/2 INPUT ro Turn the MAIN POWER switch of the pr...
Page 14
Dow Basic operations (continued) To turn off the power STANDBY/ON MUTE FOCUS ZOOM VOLUME POSITION ON LASER fr om RESET MENU ON MOUSE ON BLANK TIMER RGB 1/2 VIDEO 1/2 INPUT Press the STANDBY/ON button,...
Page 15
Dow Adjustments and functions STANDBY/ON MUTE nlo 1, 2 FOCUS ZOOM VOLUME POSITION ON LASER MENU RESET fr RESET MENU ON MOUSE ON BLANK TIMER om RGB 1/2 VIDEO 1/2 Press the MENU ( ) buttons or the MENU ...
Page 16
Dow Adjustments and functions (continued) SET UP The menu SET UP serves for the change of parameters influencing the picture and for the move picture position. RGB signal input VIDEO signal input VOLU...
Page 17
Dow Adjustments and functions (continued) INPUT The menu INPUT serves for the selection of input source. RGB1 ed RGB1 AUTO RGB2 RGB2 NTSC VIDEO1 VIDEO1 PAL VIDEO2 VIDEO2 SECAM TEST fr TEST NTSC4.43 PA...
Page 18
Dow Adjustments and functions (continued) nlo TURN ON TURN OFF ad ed Adjustment Item Details of adjustment Inverts the picture horizontally or vertically. fr NORMAL Not invert. MIRROR H : INVERT Inver...
Page 19
Dow Adjustments and functions (continued) nlo COM. SPEED COM. BITS 7N1 (bps) 8N1 ad ed fr LANGUAGE ENGLISH 10 min.TIMER om FRANÇAIS DEUTSCH ESPAÑOL ITALIANO NORSK NEDERLANDS ro jec TURN ON AUTO OFF 0 ...
Page 20
Dow Connection to the video signal terminals 1. Input signal Luminance signal nlo 1.0Vp-p, 75 Ω termination S-VIDEO signal Chrominance signal 0.286Vp-p (burst signal), 75 Ω termination VIDEO signal 1....
Page 21
Dow Connection to the RGB signal terminal (continued) 3. Example of computer signal Resolution f H f V nlo Standard Display Dots Note 1 Note 2 Note 3 H × V (k Hz) (Hz) Type H × V 640 × 350 31.5 70.1 V...
Page 22
Dow Connection to the RGB signal terminal (continued) 4. Initial set signals The following signals are initially set. The settings may be different depending on the computer type. In this nlo case, ad...
Page 23
Dow Connection to the control signal terminal 1. Control signal terminal nlo Mouse Pin No RS232C PS/2 ADB Serial CLK DATA DATA ed fr SELO SEL0 SEL0 RTS RTS RTS RTS D-sub 15pin shrink terminal (Male) G...
Page 24
Dow Connection to the control signal terminal (continued) PS/2 mouse Computer Projector nlo DATA Mini Din 6pin CLK DATA GND +5V ad CLK SEL0 RTS +5V ed fr om PS/2 cable Computer Projector ADB (Mac) mou...
Page 25
Dow Connection to the control signal terminal (continued) 3. Communication (1) Connect the projector and computer using RS 232C cable. nlo (2) Turn on the computer and after computer is setting up, tu...
Page 26
Dow Connection to the control signal terminal (continued) Control data table Item Data code nlo MOUSE 00h=stop mouse emulation. 01 ∼ 7Fh=start mouse emulation COMMUNICATE 0Xh=8N1 1Xh=7N1 ad X0h=1200bp...
Page 27
Dow Connection to the control signal terminal (continued) The procedure of getting the Projector status. (1) Computer sends the command ’20H’ + ‘yy H’ to Projector. (2) Projector reply the command ‘1x...
Page 28
Dow Example of system setup Connecting various equipment. nlo ad AC Inlet VCR with S-VHS out (video model only) Computer (Note type) ed fr om Computer (Desk type) Audio amplifying equipment VCR, etc. ...
Page 29
Dow Cleaning the air filter (continued) Clean the air filter using a vacuum cleaner. If dirt is still present, wipe the air filter with a cloth moistened with water or neutral detergent and wipe with ...
Page 30
Indicator display The ON indicator, LAMP indicator and TEMP indicator will light or blink in the following cases. nlo Indicator status Meaning Remedy Lights orange Standby mode ————————————— Blinks gr...
Page 31
Dow Specifications • All specifications are subject to change without notice. Product name Liquid crystal projector Model Name nlo CP-X955W/E Display system 3 sheets of liquid crystal panels, 3 primar...
