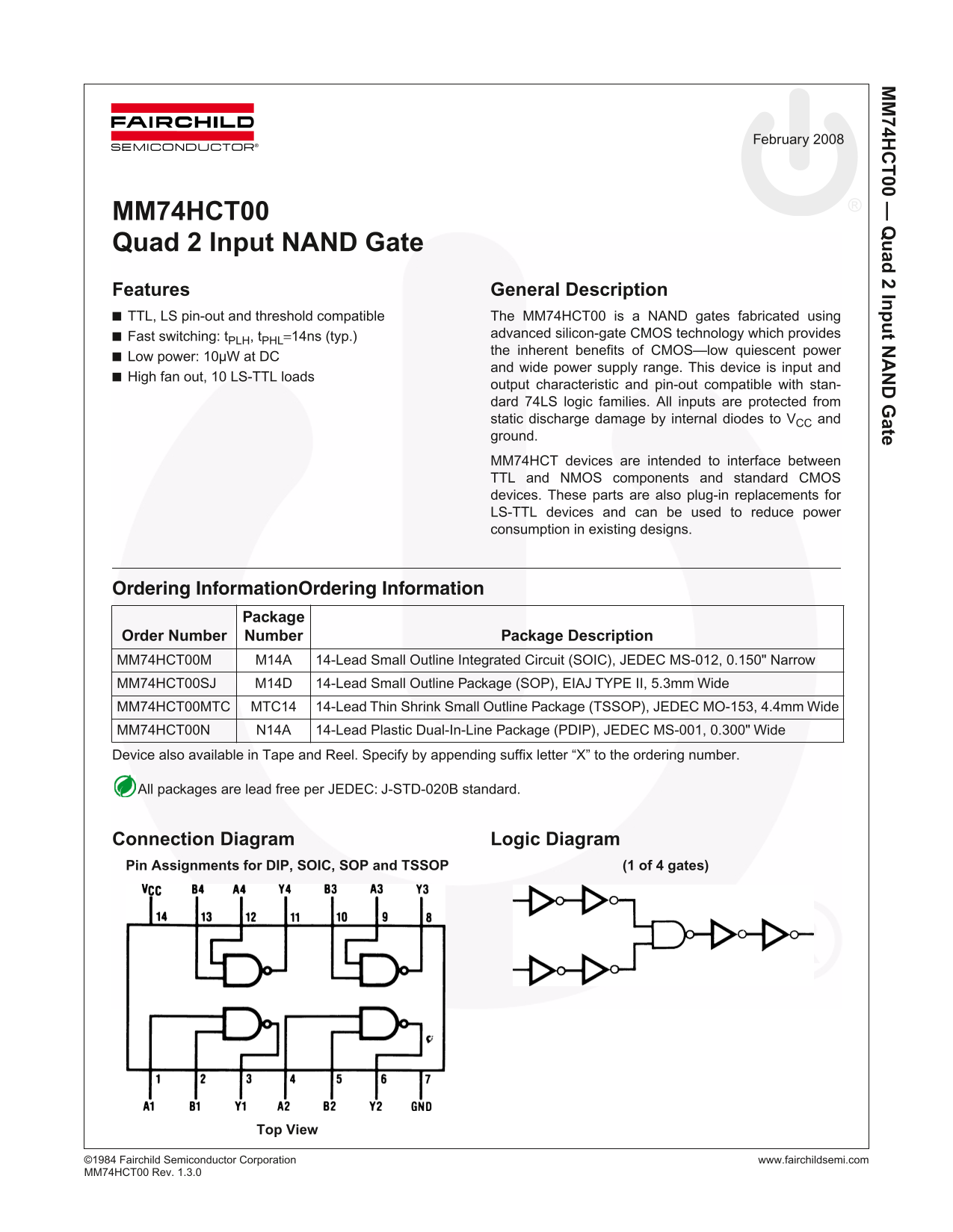

MM74HCT00 Quad 2 Input NAND Gate Features General Description TTL, LS pin-out and threshold compatible The MM74HCT00 is a NAND gates fabricated using

Fast switching: t PLH, t PHL=14ns (typ.) advanced silicon-gate CMOS technology which provides the inherent benefits of CMOS—low quiescent power

Low power: 10µW at DC

and wide power supply range. This device is input and

High fan out, 10 LS-TTL loads

output characteristic and pin-out compatible with stan- dard 74LS logic families. All inputs are protected from static discharge damage by internal diodes to VCC and ground. MM74HCT devices are intended to interface between TTL and NMOS components and standard CMOS devices. These parts are also plug-in replacements for LS-TTL devices and can be used to reduce power consumption in existing designs.

Ordering Information Ordering Information

Package

Order Number Number Package Description MM74HCT00M M14A 14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150" Narrow MM74HCT00SJ M14D 14-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide MM74HCT00MTC MTC14 14-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide MM74HCT00N N14A 14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300" Wide Device also available in Tape and Reel. Specify by appending suffix letter “X” to the ordering number.

All packages are lead free per JEDEC: J-STD-020B standard.

Connection Diagram Logic Diagram Pin Assignments for DIP, SOIC, SOP and TSSOP (1 of 4 gates)

Top View
