ST M74HC132 Quad 2-Input Schmitt NAND Gate Data Sheet

Summary

This high-speed CMOS quad Schmitt NAND gate provides four independent, jitter-free gates for reliable signal conditioning in demanding applications. Featuring built-in hysteresis and input protection circuits, it ensures stable logic operation against noise. The manual serves as a comprehensive technical guide, detailing electrical specifications, propagation delays, operational voltage ranges, and mechanical information across DIP, SO, and TSSOP packages. It is essential documentation for electronics engineers and hardware designers implementing robust logic circuits in embedded systems.

📄 Preview PAGE OF 9

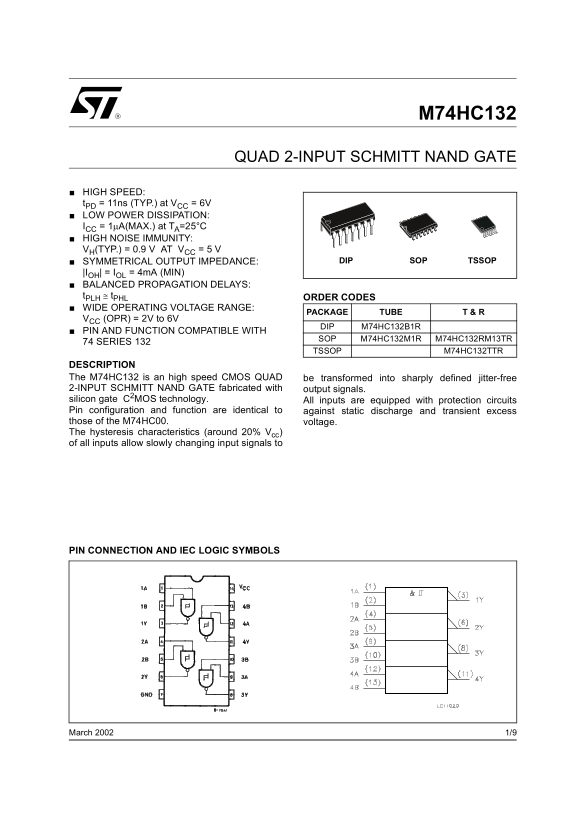

Page 1 Text Content

M74HC132

QUAD 2-INPUT SCHMITT NAND GATE

HIGH SPEED: t PD = 11ns (TYP.) at VCC = 6V LOW POWER DISSIPATION: ICC = 1µA(MAX.) at TA=25°C HIGH NOISE IMMUNITY: VH(TYP.) = 0.9 V AT VCC = 5 V

SYMMETRICAL OUTPUT IMPEDANCE: SOP TSSOPDIP

|IOH| = IOL = 4m A (MIN) BALANCED PROPAGATION DELAYS: t PLH ≅ t PHL ORDER CODES WIDE OPERATING VOLTAGE RANGE:

PACKAGE TUBE T & R

VCC (OPR) = 2V to 6V

DIP M74HC132B1R

PIN AND FUNCTION COMPATIBLE WITH

SOP M74HC132M1R M74HC132RM13TR

74 SERIES 132

TSSOP M74HC132TTR

DESCRIPTION The M74HC132 is an high speed CMOS QUAD be transformed into sharply defined jitter-free 2-INPUT SCHMITT NAND GATE fabricated with output signals. silicon gate C2MOS technology. All inputs are equipped with protection circuits Pin configuration and function are identical to against static discharge and transient excess those of the M74HC00. voltage. The hysteresis characteristics (around 20% Vcc) of all inputs allow slowly changing input signals to

PIN CONNECTION AND IEC LOGIC SYMBOLS

1/9March 2002

Page Summary Contents For ST M74HC132 Quad 2-Input Schmitt NAND Gate Data Sheet

Page 1 M74HC132 QUAD 2-INPUT SCHMITT NAND GATE HIGH SPEED: t PD = 11ns (TYP.) at VCC = 6V LOW POWER DISSIPATION: ICC = 1µA(MAX.) at TA=25°C HIGH NOISE IMMUNITY: VH(TYP.) = 0.9 V AT VCC = 5 V SYMMETRICAL OUTP...
Page 2 M74HC132 INPUT AND OUTPUT EQUIVALENT CIRCUIT PIN DESCRIPTION PIN No SYMBOL NAME AND FUNCTION 1, 4, 9, 12 1A to 4A Data Inputs 2, 5, 10, 13 1B to 4B Data Inputs 3, 6, 8, 11 1Y to 4Y Data Outputs GND Gr...
Page 3 M74HC132 DC SPECIFICATIONS Test Condition Value Symbol Parameter TA = 25°C -40 to 85°C -55 to 125°C Unit VCC Min. Typ. Max. Min. Max. Min. Max. VP High Level 2.0 1.0 1.25 1.5 1.0 1.5 1.0 1.5 Threshold...
Page 4 M74HC132 CAPACITIVE CHARACTERISTICS Test Condition Value Symbol Parameter TA = 25°C -40 to 85°C -55 to 125°C Unit VCC Min. Typ. Max. Min. Max. Min. Max. CIN Input Capacitance 5.0 p F CPD Power Dissipa...
Page 5 M74HC132 WAVEFORM : PROPAGATION DELAY TIMES (f=1MHz; 50% duty cycle)
Page 6 M74HC132 Plastic DIP-14 MECHANICAL DATA mm. inch MIN. TYP MAX. MIN. TYP. MAX.
Page 7 M74HC132 SO-14 MECHANICAL DATA mm. inch MIN. TYP MAX. MIN. TYP. MAX. c1 45° (typ.) 0.68 0.026 8° (max.) PO13G
Page 8 M74HC132 TSSOP14 MECHANICAL DATA mm. inch MIN. TYP MAX. MIN. TYP. MAX. 0.65 BSC 0.0256 BSC PIN 1 IDENTIFICATION
Page 9 M74HC132 Information furnished is believed to be accurate and reliable. However, STMicroelectronics assumes no responsibility for the consequences of use of such information nor for any infringement o...

Manual Details

Brand QUAD
Pages 9
File Size 185.23 KB
Published May 29, 2026
44 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What is the operating voltage range for the M74HC132?

The recommended supply voltage (VCC) operates within a 2 V to 6 V range.

How does the Schmitt NAND Gate feature enhance signal quality?

It features hysteresis characteristics, which allow slowly changing input signals to be converted into sharply defined jitter-free output signals.

What are the typical propagation delays (tPLH and tPHL) at standard room temperature?

At 25°C, the propagation delay low-to-high (tPLH) is typically 13 ns, and high-to-low (tPHL) is typically 21 ns.
