ST M74HC08 QUAD 2-INPUT AND GATE Data Sheet
Summary
The M74HC08 is a high-speed CMOS Quad 2-Input AND Gate chip designed for robust digital logic circuit implementation. Featuring advanced protection circuits and high noise immunity, this IC ensures stable performance across a wide operating voltage range (2V to 6V). This manual provides engineers with comprehensive technical data, including detailed electrical specifications, timing diagrams, absolute maximum ratings, and mechanical dimensions for various packages (DIP/TSSOP), making it perfect for hardware designers requiring reliable, high-performance switching components.

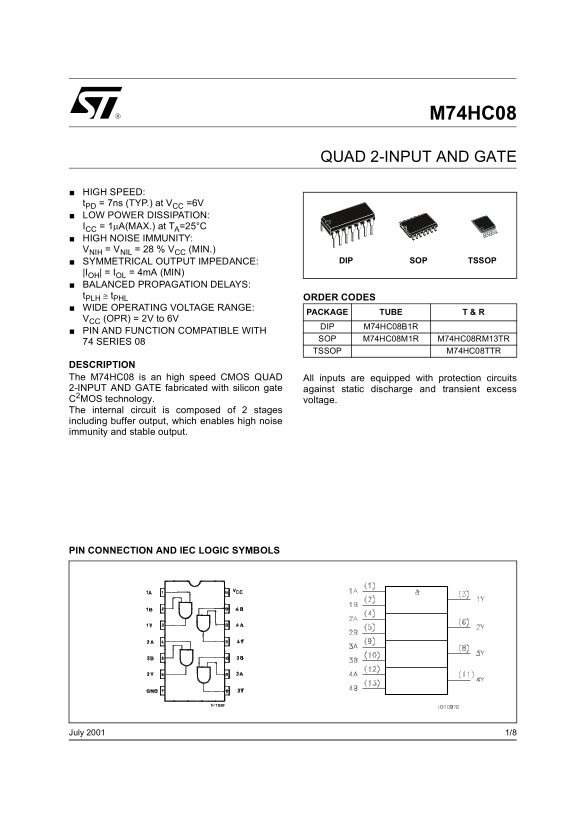

Page 1 Text Content
M74HC08
QUAD 2-INPUT AND GATE
HIGH SPEED: t PD = 7ns (TYP.) at VCC =6V LOW POWER DISSIPATION: ICC = 1µA(MAX.) at TA=25°C HIGH NOISE IMMUNITY: VNIH = VNIL = 28 % VCC (MIN.)
SYMMETRICAL OUTPUT IMPEDANCE: SOP TSSOPDIP
|IOH| = IOL = 4m A (MIN) BALANCED PROPAGATION DELAYS: t PLH ≅ t PHL ORDER CODES WIDE OPERATING VOLTAGE RANGE:
PACKAGE TUBE T & R
VCC (OPR) = 2V to 6V
DIP M74HC08B1R
PIN AND FUNCTION COMPATIBLE WITH
SOP M74HC08M1R M74HC08RM13TR
74 SERIES 08
TSSOP M74HC08TTR
DESCRIPTION The M74HC08 is an high speed CMOS QUAD All inputs are equipped with protection circuits 2-INPUT AND GATE fabricated with silicon gate against static discharge and transient excess C2MOS technology. voltage. The internal circuit is composed of 2 stages including buffer output, which enables high noise immunity and stable output.
PIN CONNECTION AND IEC LOGIC SYMBOLS
1/8July 2001
Page Summary Contents For ST M74HC08 QUAD 2-INPUT AND GATE Data Sheet
Manual Details
| Brand | QUAD |
|---|---|
| Pages | 8 |
| File Size | 174.22 KB |
| Published | May 29, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the recommended operating voltage range for this quad AND gate?
The device operates across a wide voltage range, preferably between 2V and 6V.
Does this chip include protection against electrical damage?
Yes, all inputs are equipped with protection circuits against static discharge and transient excess voltage.
What is the maximum operating temperature for reliable function?
The recommended operating temperature range is -55°C to 125°C.
Can I use this device in life support systems without specific approval?
No, STMicroelectronics does not authorize its use as a critical component in life support devices or systems without express written approval.
