ST 74LCX00 Low Voltage CMOS Quad 2-Input NAND Gate with 5V Tolerant Inputs

Summary

The 74LCX00 is a high-speed, low-voltage CMOS Quad 2-Input NAND Gate designed for reliable digital interfacing in modern electronic systems. Featuring superior performance up to 5V tolerant inputs and enhanced ESD protection, it ensures stable operation while minimizing power consumption compared to standard logic families. This comprehensive datasheet provides engineers with crucial details on electrical characteristics, operating voltage ranges (2.0V to 3.6V), timing parameters, and system compatibility for seamless integration into low-power circuit designs.

📄 Preview PAGE OF 9

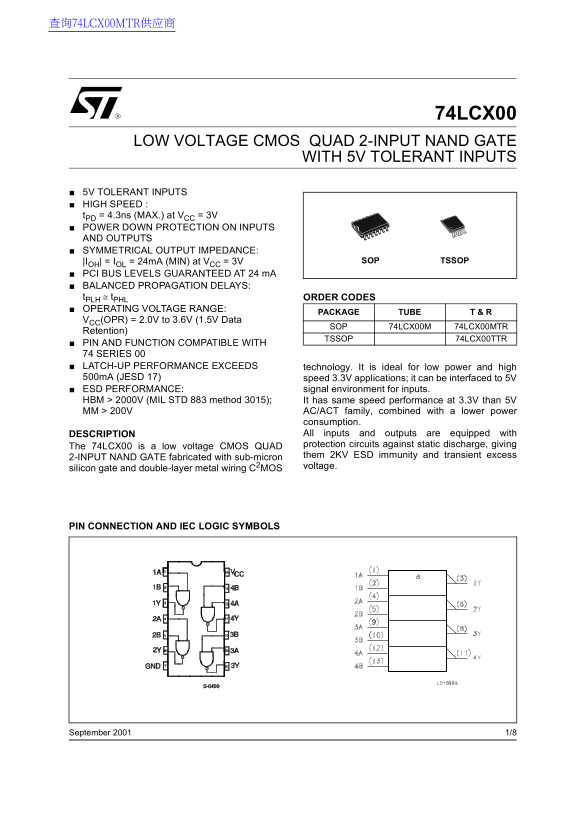

Page 1 Text Content

查询74LCX00MTR供应商

74LCX00

LOW VOLTAGE CMOS QUAD 2-INPUT NAND GATE

WITH 5V TOLERANT INPUTS

5V TOLERANT INPUTS HIGH SPEED : t PD = 4.3ns (MAX.) at VCC = 3V POWER DOWN PROTECTION ON INPUTS AND OUTPUTS SYMMETRICAL OUTPUT IMPEDANCE:

|IOH| = IOL = 24m A (MIN) at VCC = 3V TSSOPSOP

PCI BUS LEVELS GUARANTEED AT 24 m A BALANCED PROPAGATION DELAYS: t PLH ≅ t PHL ORDER CODES OPERATING VOLTAGE RANGE:

PACKAGE TUBE T & R

VCC(OPR) = 2.0V to 3.6V (1.5V Data

SOP 74LCX00M 74LCX00MTR

Retention)

TSSOP 74LCX00TTR

PIN AND FUNCTION COMPATIBLE WITH 74 SERIES 00 LATCH-UP PERFORMANCE EXCEEDS technology. It is ideal for low power and high 500m A (JESD 17) speed 3.3V applications; it can be interfaced to 5V

ESD PERFORMANCE: signal environment for inputs.

HBM > 2000V (MIL STD 883 method 3015); It has same speed performance at 3.3V than 5V MM > 200V AC/ACT family, combined with a lower power

consumption. DESCRIPTION All inputs and outputs are equipped with The 74LCX00 is a low voltage CMOS QUAD protection circuits against static discharge, giving them 2KV ESD immunity and transient excess

2-INPUT NAND GATE fabricated with sub-micron

voltage.

silicon gate and double-layer metal wiring C2MOS

PIN CONNECTION AND IEC LOGIC SYMBOLS

1/8September 2001

Page Summary Contents For ST 74LCX00 Low Voltage CMOS Quad 2-Input NAND Gate with 5V Tolerant Inputs

Page 1 查询74LCX00MTR供应商 74LCX00 LOW VOLTAGE CMOS QUAD 2-INPUT NAND GATE WITH 5V TOLERANT INPUTS 5V TOLERANT INPUTS HIGH SPEED : t PD = 4.3ns (MAX.) at VCC = 3V POWER DOWN PROTECTION ON INPUTS AND OUTPUTS SYMM...
Page 2 74LCX00 INPUT AND OUTPUT EQUIVALENT CIRCUIT PIN DESCRIPTION TRUTH TABLE PIN No SYMBOL NAME AND FUNCTION 1, 4, 9, 12 1A to 4A Data Inputs 2, 5, 10, 13 1B to 4B Data Inputs 3, 6, 8, 11 1Y to 4Y Data Out...
Page 3 74LCX00 RECOMMENDED OPERATING CONDITIONS Symbol Parameter Value Unit VCC Supply Voltage (note 1) 2.0 to 3.6 VI Input Voltage 0 to 5.5 VO Output Voltage (VCC = 0V) 0 to 5.5 VO Output Voltage (High or L...
Page 4 74LCX00 AC ELECTRICAL CHARACTERISTICS Test Condition Value Symbol Parameter -40 to 85 °C -55 to 125 °C Unit VCC CL RL ts = tr (V) (p F) (Ω) (ns) Min. Max. Min. Max. t PLH t PHL Propagation Delay 2.7 5...
Page 5 74LCX00 WAVEFORM : PROPAGATION DELAYS (f=1MHz; 50% duty cycle)
Page 6 74LCX00 SO-14 MECHANICAL DATA mm. inch MIN. TYP MAX. MIN. TYP. MAX. c1 45° (typ.) 0.68 0.026 8° (max.) PO13G
Page 7 74LCX00 TSSOP14 MECHANICAL DATA mm. inch MIN. TYP MAX. MIN. TYP. MAX. 0.65 BSC 0.0256 BSC PIN 1 IDENTIFICATION
Page 8 74LCX00 Information furnished is believed to be accurate and reliable. However, STMicroelectronics assumes no responsibility for the consequences of use of such information nor for any infringement of...
Page 9 This datasheet has been download from: www.datasheetcatalog.com Datasheets for electronics components.
