ST M74HC03 Quad 2-Input Open Drain NAND Gate Data Sheet

Summary

The M74HC03 is a high-speed CMOS Quad 2-Input Open Drain NAND Gate designed for reliable digital logic circuits. Built with advanced technology, it features low power dissipation, high noise immunity, and balanced propagation delays across wide operating voltage ranges (2V to 6V). This manual provides comprehensive technical specifications, including detailed electrical characteristics, timing diagrams, and package compatibility (DIP, SOP, TSSOP), making it an essential resource for electronics engineers integrating robust logic components into demanding applications.

📄 Preview PAGE OF 8

Page 1 Text Content

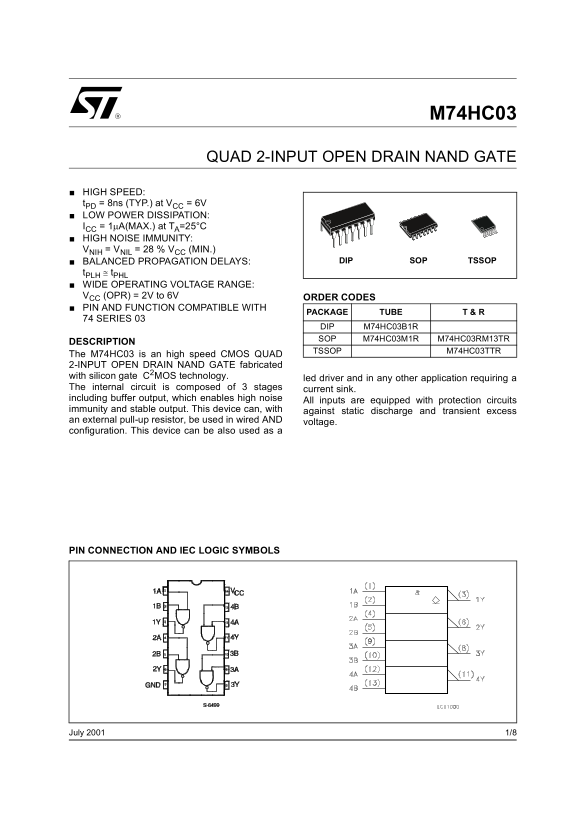

M74HC03

QUAD 2-INPUT OPEN DRAIN NAND GATE

HIGH SPEED: t PD = 8ns (TYP.) at VCC = 6V LOW POWER DISSIPATION: ICC = 1µA(MAX.) at TA=25°C HIGH NOISE IMMUNITY: VNIH = VNIL = 28 % VCC (MIN.)

BALANCED PROPAGATION DELAYS: SOP TSSOPDIP

t PLH ≅ t PHL WIDE OPERATING VOLTAGE RANGE: VCC (OPR) = 2V to 6V ORDER CODES PIN AND FUNCTION COMPATIBLE WITH

PACKAGE TUBE T & R

74 SERIES 03

DIP M74HC03B1R SOP M74HC03M1R M74HC03RM13TR

DESCRIPTION

TSSOP M74HC03TTR

The M74HC03 is an high speed CMOS QUAD 2-INPUT OPEN DRAIN NAND GATE fabricated with silicon gate C2MOS technology.

led driver and in any other application requiring a

The internal circuit is composed of 3 stages current sink. including buffer output, which enables high noise

All inputs are equipped with protection circuits

immunity and stable output. This device can, with against static discharge and transient excess an external pull-up resistor, be used in wired AND

voltage.

configuration. This device can be also used as a

PIN CONNECTION AND IEC LOGIC SYMBOLS

1/8July 2001

Page Summary Contents For ST M74HC03 Quad 2-Input Open Drain NAND Gate Data Sheet

Page 1 M74HC03 QUAD 2-INPUT OPEN DRAIN NAND GATE HIGH SPEED: t PD = 8ns (TYP.) at VCC = 6V LOW POWER DISSIPATION: ICC = 1µA(MAX.) at TA=25°C HIGH NOISE IMMUNITY: VNIH = VNIL = 28 % VCC (MIN.) BALANCED PROPAG...
Page 2 M74HC03 INPUT AND OUTPUT EQUIVALENT CIRCUIT PIN DESCRIPTION PIN No SYMBOL NAME AND FUNCTION 1, 4, 9, 12 1A to 4A Data Inputs 2, 5, 10, 13 1B to 4B Data Inputs 3, 6, 8, 11 1Y to 4Y Data Outputs GND Gro...
Page 3 M74HC03 DC SPECIFICATIONS Test Condition Value Symbol Parameter TA = 25°C -40 to 85°C -55 to 125°C Unit VCC Min. Typ. Max. Min. Max. Min. Max. VIH High Level Input 2.0 1.5 1.5 1.5 Voltage VIL Low Leve...
Page 4 M74HC03 TEST CIRCUIT CL = 50p F or equivalent (includes jig and probe capacitance) RT = ZOUT of pulse generator (typically 50Ω) WAVEFORM : PROPAGATION DELAY TIMES (f=1MHz; 50% duty cycle)
Page 5 M74HC03 Plastic DIP-14 MECHANICAL DATA mm. inch MIN. TYP MAX. MIN. TYP. MAX.
Page 6 M74HC03 SO-14 MECHANICAL DATA mm. inch MIN. TYP MAX. MIN. TYP. MAX. c1 45° (typ.) 0.68 0.026 8° (max.) PO13G
Page 7 M74HC03 TSSOP14 MECHANICAL DATA mm. inch MIN. TYP MAX. MIN. TYP. MAX. 0.65 BSC 0.0256 BSC PIN 1 IDENTIFICATION
Page 8 M74HC03 Information furnished is believed to be accurate and reliable. However, STMicroelectronics assumes no responsibility for the consequences of use of such information nor for any infringement of...
