Fairchild DM74LS00 Quad 2-Input NAND Gate Data Sheet
Summary
The DM74LS00 is a high-reliability Quad 2-Input NAND Gate integrated circuit designed for fundamental digital logic functions. This comprehensive manual serves as an essential resource for electronics engineers and circuit designers, detailing robust operational parameters including absolute maximum ratings, specific voltage ranges, timing characteristics, and multiple physical package types (SOIC, SOP, PDIP). It ensures proper implementation of reliable digital logic in a wide range of electronic systems.

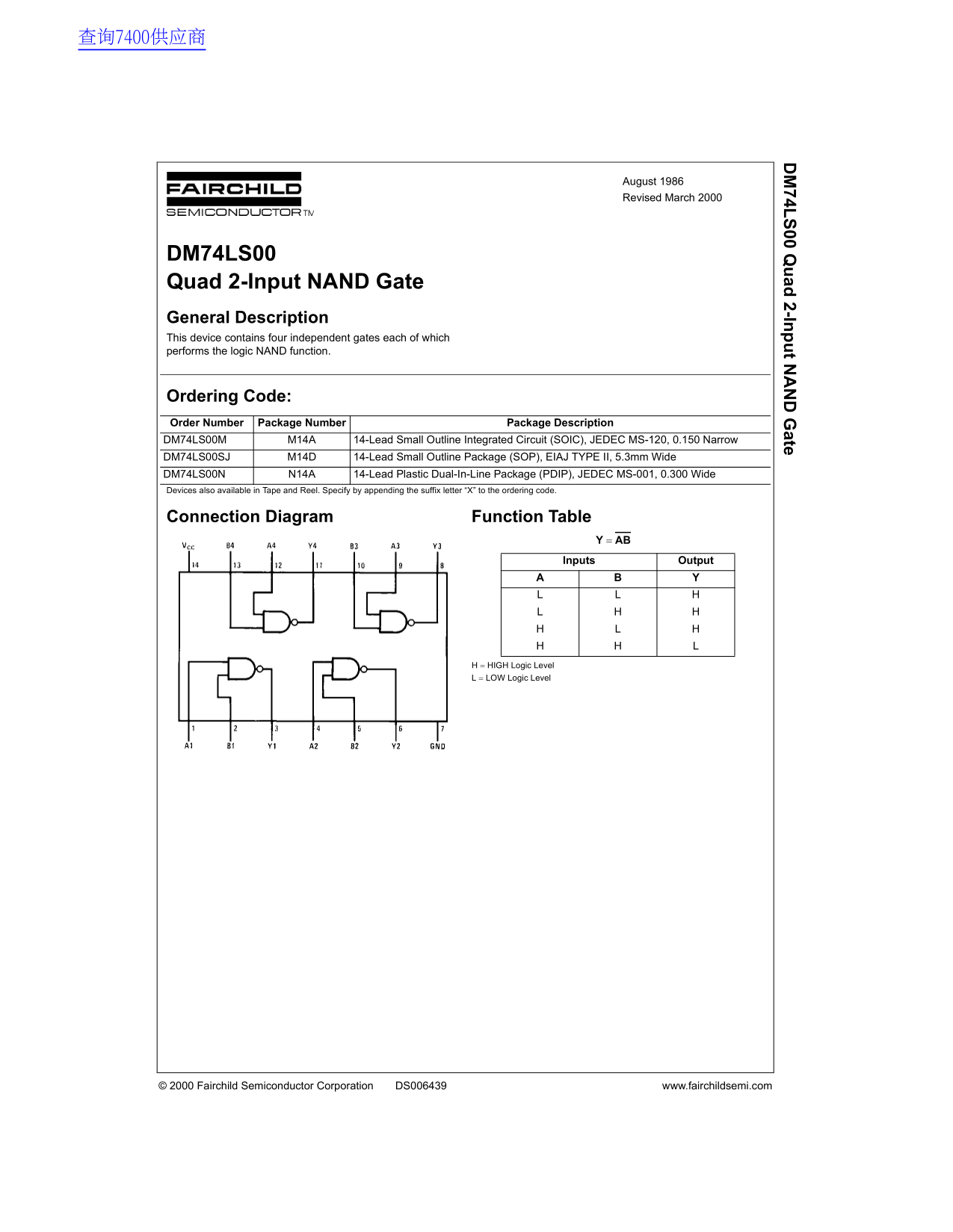

Page 1 Text Content
74L 00 Q ad 2-In t N ate
August 1986 Revised March 2000
DM74LS00 Quad 2-Input NAND Gate General Description This device contains four independent gates each of which performs the logic NAND function.
Ordering Code: Order Number Package Number Package Description DM74LS00M M14A 14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-120, 0.150 Narrow DM74LS00SJ M14D 14-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide DM74LS00N N14A 14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.
Connection Diagram Function Table
Y = AB
Inputs Output
H = HIGH Logic Level L = LOW Logic Level
© 2000 Fairchild Semiconductor Corporation DS006439 www.fairchildsemi.com
Page Summary Contents For Fairchild DM74LS00 Quad 2-Input NAND Gate Data Sheet
Manual Details
| Brand | Fairchild |
|---|---|
| Pages | 5 |
| File Size | 60.94 KB |
| Published | July 15, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What logic function does this integrated circuit perform?
This device contains four independent gates, each performing the logic NAND function.
What are the recommended operating temperature limits?
The Free Air Operating Temperature Range is specified as 0°C to +70°C for actual device operation.
Which physical package options are available for this chip?
Packages include SOIC, SOP (5.3mm Wide), and PDIP formats.
What must be considered when using the supply voltage?
The Supply Voltage (VCC) must fall between 4.75 V and 5.25 V to ensure proper operation.
