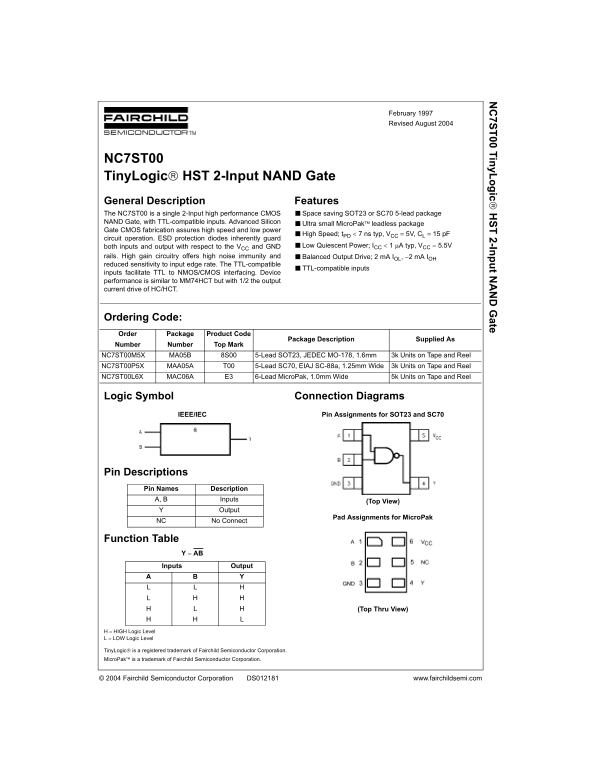

Fairchild NC7ST00 TinyLogic HST 2-Input NAND Gate Data Manual

7S 00 Tin y L ic 2-In t N ate

February 1997 Revised August 2004

NC7ST00 Tiny Logic HST 2-Input NAND Gate General Description Features The NC7ST00 is a single 2-Input high performance CMOS ■Space saving SOT23 or SC70 5-lead package NAND Gate, with TTL-compatible inputs. Advanced Silicon

■Ultra small Micro Pak leadless package

Gate CMOS fabrication assures high speed and low power

■High Speed; t PD < 7 ns typ, VCC = 5V, CL = 15 p F

circuit operation. ESD protection diodes inherently guard

both inputs and output with respect to the VCC and GND ■Low Quiescent Power; ICC < 1 µA typ, VCC = 5.5V

rails. High gain circuitry offers high noise immunity and ■Balanced Output Drive; 2 m A IOL, −2 m A IOH reduced sensitivity to input edge rate. The TTL-compatible

■TTL-compatible inputs

inputs facilitate TTL to NMOS/CMOS interfacing. Device performance is similar to MM74HCT but with 1/2 the output current drive of HC/HCT.

Ordering Code: Order Package Product Code

Package Description Supplied As

Number Number Top Mark NC7ST00M5X MA05B 8S00 5-Lead SOT23, JEDEC MO-178, 1.6mm 3k Units on Tape and Reel NC7ST00P5X MAA05A T00 5-Lead SC70, EIAJ SC-88a, 1.25mm Wide 3k Units on Tape and Reel NC7ST00L6X MAC06A E3 6-Lead Micro Pak, 1.0mm Wide 5k Units on Tape and Reel

Logic Symbol Connection Diagrams

IEEE/IEC Pin Assignments for SOT23 and SC70

Pin Descriptions

Pin Names Description A, B Inputs

(Top View)

Output

Pad Assignments for Micro Pak

NC No Connect

Function Table

Y = AB

Inputs Output

(Top Thru View)

H = HIGH Logic Level L = LOW Logic Level

Tiny Logic is a registered trademark of Fairchild Semiconductor Corporation. Micro Pak is a trademark of Fairchild Semiconductor Corporation.

© 2004 Fairchild Semiconductor Corporation DS012181 www.fairchildsemi.com
