This ultra-high speed, two-input NAND gate provides robust digital logic functionality for demanding electronic systems. The manual details the component's exceptional performance over a wide operating range (1.65V to 5.5V), featuring low power consumption and high output drive. It includes comprehensive data on electrical specifications, timing characteristics (t=2.4ns), thermal ratings, and various space-saving surface mount packages (SOT23, SC70). This resource is essential for hardware engineers designing reliable, high-speed digital circuits.

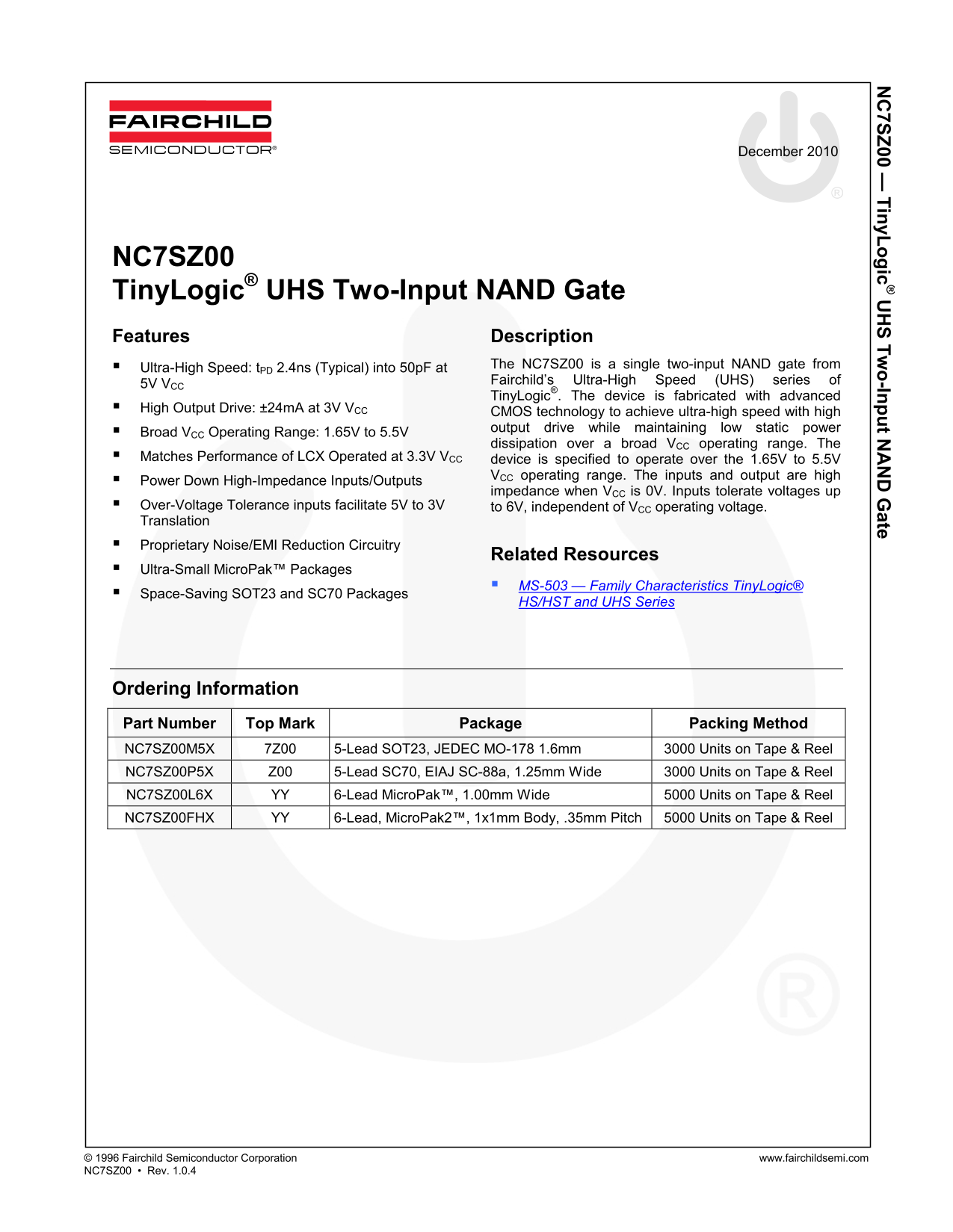

Page 1 Text Content
7SZ00 — Tiny Logic S Tw o-Input N ate
December 2010
NC7SZ00 Tiny Logic® UHS Two-Input NAND Gate Features Description
Ultra-High Speed: t PD 2.4ns (Typical) into 50p F at The NC7SZ00 is a single two-input NAND gate from Fairchild’s Ultra-High Speed (UHS) series of
5V VCC
Tiny Logic®. The device is fabricated with advanced
High Output Drive: ±24m A at 3V VCC
CMOS technology to achieve ultra-high speed with high output drive while maintaining low static power
Broad VCC Operating Range: 1.65V to 5.5V
dissipation over a broad VCC operating range. The
Matches Performance of LCX Operated at 3.3V VCC device is specified to operate over the 1.65V to 5.5V
VCC operating range. The inputs and output are high
Power Down High-Impedance Inputs/Outputs
impedance when VCC is 0V. Inputs tolerate voltages up
Over-Voltage Tolerance inputs facilitate 5V to 3V to 6V, independent of VCC operating voltage. Translation Proprietary Noise/EMI Reduction Circuitry
Related Resources
Ultra-Small Micro Pak™ Packages
MS-503 — Family Characteristics Tiny Logic®
Space-Saving SOT23 and SC70 Packages
HS/HST and UHS Series
Ordering Information Part Number Top Mark Package Packing Method NC7SZ00M5X 7Z00 5-Lead SOT23, JEDEC MO-178 1.6mm 3000 Units on Tape & Reel NC7SZ00P5X Z00 5-Lead SC70, EIAJ SC-88a, 1.25mm Wide 3000 Units on Tape & Reel NC7SZ00L6X YY 6-Lead Micro Pak™, 1.00mm Wide 5000 Units on Tape & Reel NC7SZ00FHX YY 6-Lead, Micro Pak2™, 1x1mm Body, .35mm Pitch 5000 Units on Tape & Reel
© 1996 Fairchild Semiconductor Corporation www.fairchildsemi.com NC7SZ00 • Rev. 1.0.4
Page Summary Contents For Fairchild NC7SZ00 TinyLogic UHS 2-Input NAND Gate Data Handbook
Manual Details
| Brand | Fairchild |
|---|---|
| Pages | 10 |
| File Size | 561.93 KB |
| Published | July 07, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the recommended operating voltage range for this device?
The supply voltage must operate between 1.65V and 5.50V to ensure optimal performance.
How fast does the gate operate?
It operates at a typical speed of t = 2.4ns into 50pF, utilizing the Ultra-High Speed (UHS) series.
What types of packages are available for ordering this chip?
Available packages include SOT23, SC70, and MicroPak™ various leads.
Can I operate this device outside of its recommended voltage range?
No, while absolute maximum ratings list ranges up to 6.0V, operating within the recommended conditions is necessary for optimal performance.
