Fairchild NC7SZ14 TinyLogic UHS Inverter with Schmitt Trigger Input Data Handbook
Summary
This ultra-high speed inverter features a robust Schmitt Trigger input, making it ideal for reliable signal conditioning and logic switching in digital systems. Designed using advanced CMOS technology, it offers excellent high output drive and operates across a broad 1.65V to 5.5V voltage range. The manual provides comprehensive details on its electrical characteristics, absolute maximum ratings, various micro-packages (SOT23, SC70, MicroPak), and best practices for integrating this powerful component into your electronics design.

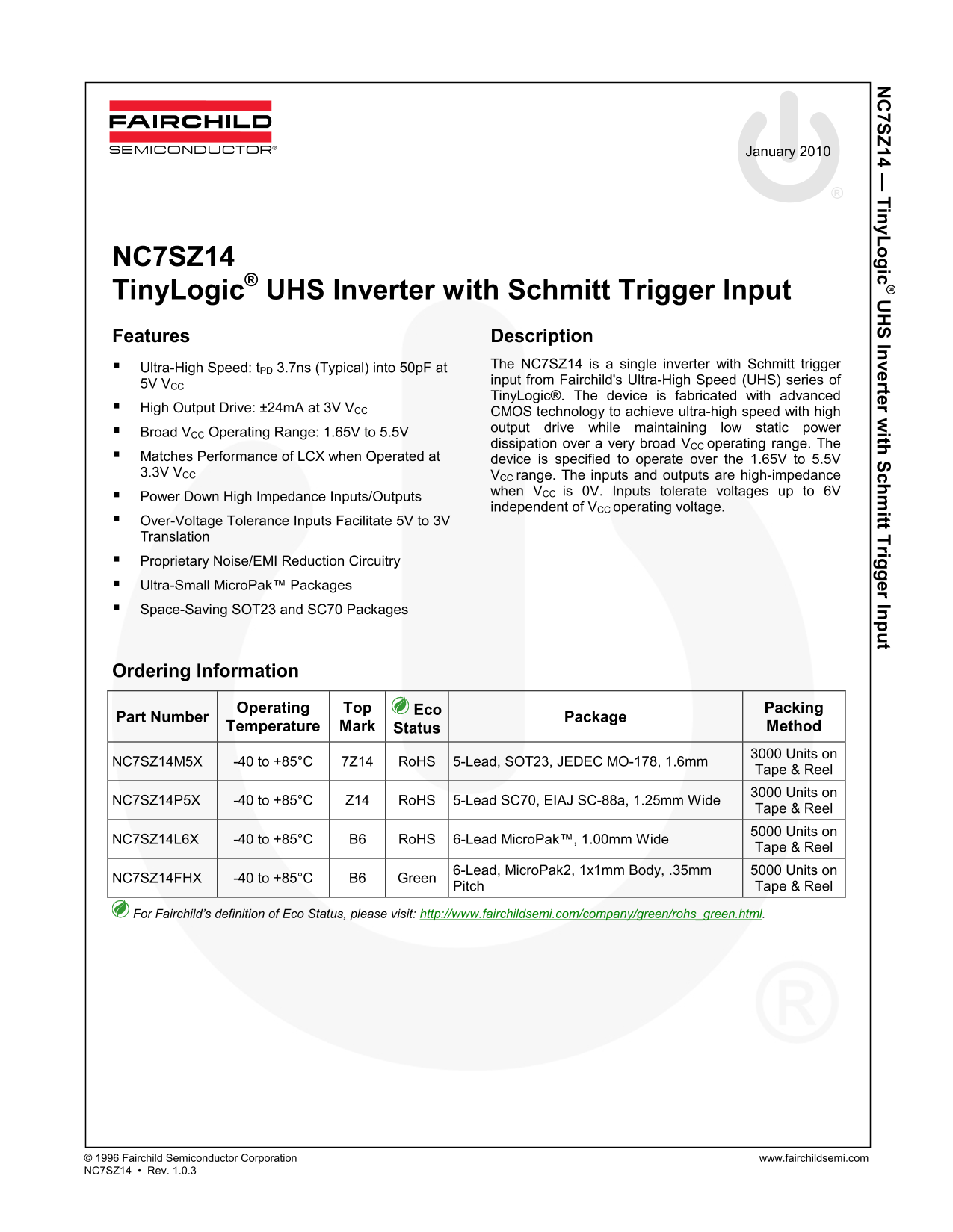

Page 1 Text Content
7SZ14 — Tiny Logic S Inverter w ith Schm itt Trigger Input
January 2010
NC7SZ14 Tiny Logic® UHS Inverter with Schmitt Trigger Input Features Description
Ultra-High Speed: t PD 3.7ns (Typical) into 50p F at The NC7SZ14 is a single inverter with Schmitt trigger input from Fairchild's Ultra-High Speed (UHS) series of
5V VCC
Tiny Logic®. The device is fabricated with advanced
High Output Drive: ±24m A at 3V VCC
CMOS technology to achieve ultra-high speed with high output drive while maintaining low static power
Broad VCC Operating Range: 1.65V to 5.5V
dissipation over a very broad VCC operating range. The
Matches Performance of LCX when Operated at device is specified to operate over the 1.65V to 5.5V 3.3V VCC VCC range. The inputs and outputs are high-impedance
when VCC is 0V. Inputs tolerate voltages up to 6V
Power Down High Impedance Inputs/Outputs
independent of VCC operating voltage.
Over-Voltage Tolerance Inputs Facilitate 5V to 3V Translation Proprietary Noise/EMI Reduction Circuitry Ultra-Small Micro Pak™ Packages Space-Saving SOT23 and SC70 Packages
Ordering Information
Part Number Operating Package Packing
Temperature Mark Status Method
NC7SZ14M5X -40 to +85°C 7Z14 Ro HS 5-Lead, SOT23, JEDEC MO-178, 1.6mm 3000 Units on
Tape & Reel
NC7SZ14P5X -40 to +85°C Z14 Ro HS 5-Lead SC70, EIAJ SC-88a, 1.25mm Wide 3000 Units on
Tape & Reel
NC7SZ14L6X -40 to +85°C B6 Ro HS 6-Lead Micro Pak™, 1.00mm Wide 5000 Units on
Tape & Reel 5000 Units on
NC7SZ14FHX -40 to +85°C B6 Green 6-Lead, Micro Pak2, 1x1mm Body, .35mm
Pitch Tape & Reel
For Fairchild’s definition of Eco Status, please visit: http://www.fairchildsemi.com/company/green/rohs_green.html.
© 1996 Fairchild Semiconductor Corporation www.fairchildsemi.com NC7SZ14 • Rev. 1.0.3
Page Summary Contents For Fairchild NC7SZ14 TinyLogic UHS Inverter with Schmitt Trigger Input Data Handbook
Manual Details
| Brand | Fairchild |
|---|---|
| Pages | 10 |
| File Size | 592.92 KB |
| Published | July 06, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the operational voltage range for this device?
The recommended operating supply voltage range is between 1.65V and 5.50V.
Does it have high output drive capabilities?
Yes, it provides a high output drive of ±24mA at 3.3V CC.
Is the device resistant to electrical noise and overcurrent?
It features proprietary Noise/EMI Reduction Circuitry and tolerates inputs up to 6V.
Which packages are available for purchase?
Available packages include SOT-23, SC-70, MicroPak™, and MicroPak2™.
