Fairchild NC7WP14 TinyLogic ULP Dual Inverter with Schmitt Trigger Inputs Data Sheet

Summary

The NC7WP14 is an Ultra Low Power (ULP) dual inverter featuring Schmitt trigger inputs, making it ideal for battery-powered electronic circuits where conserving energy is critical. With reliable operation across a 0.9V to 3.6V range, this component is designed to provide optimal speed while maintaining extremely low power consumption. This manual provides engineers and designers with comprehensive documentation, including detailed electrical characteristics tables, absolute maximum ratings, connection diagrams for various packages (MicroPak/SC70), and operational specifications needed for reliable circuit implementation.

📄 Preview PAGE OF 9

Page 1 Text Content

7W 14 T in y L ic al In verter w ith ch itt Trig er In ts

June 2003 Revised March 2004

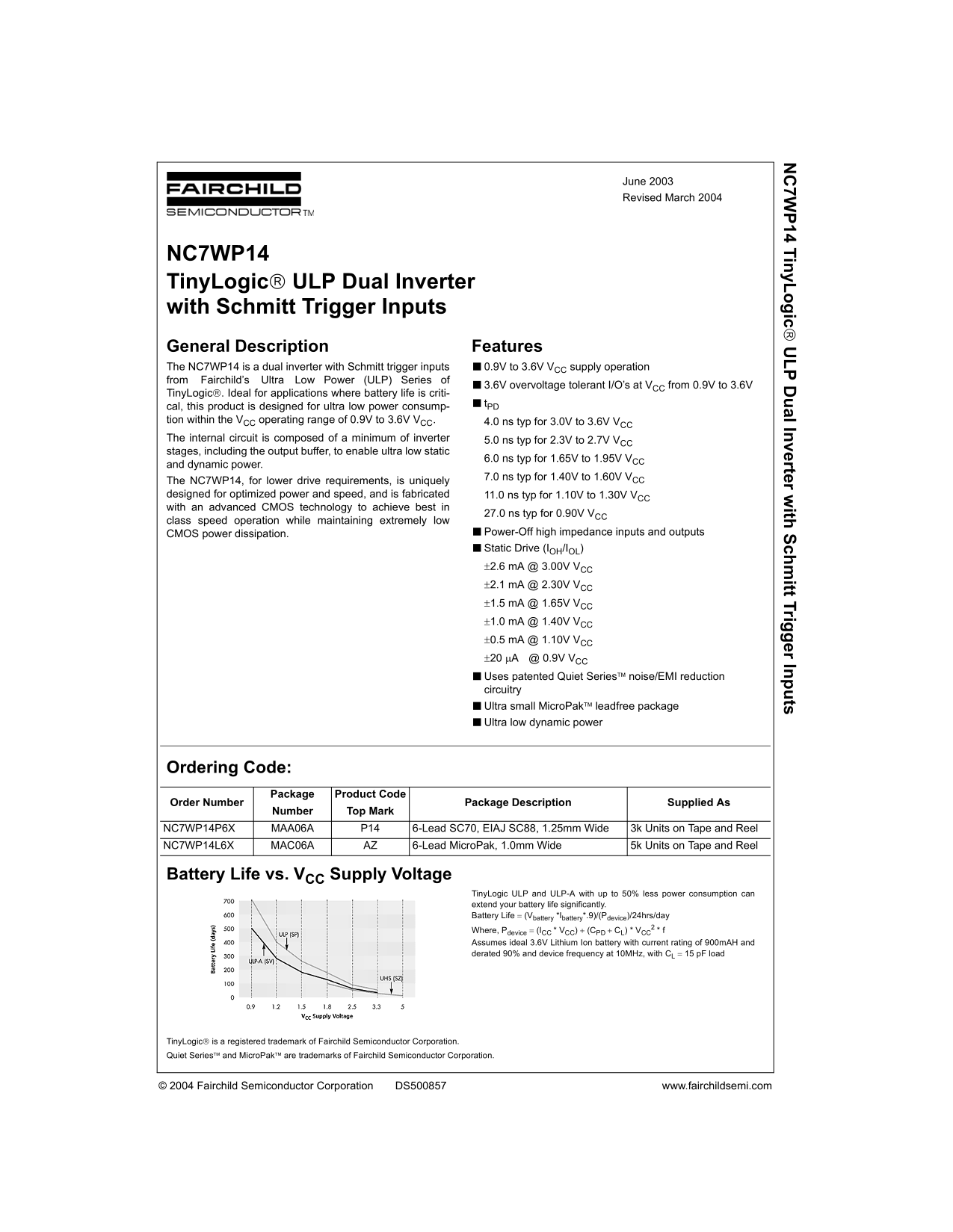

NC7WP14 Tiny Logic ULP Dual Inverter with Schmitt Trigger Inputs General Description Features The NC7WP14 is a dual inverter with Schmitt trigger inputs ■0.9V to 3.6V VCC supply operation from Fairchild’s Ultra Low Power (ULP) Series of

■3.6V overvoltage tolerant I/O’s at VCC from 0.9V to 3.6V

Tiny Logic. Ideal for applications where battery life is criti-

cal, this product is designed for ultra low power consump- t PD

tion within the VCC operating range of 0.9V to 3.6V VCC. 4.0 ns typ for 3.0V to 3.6V VCC The internal circuit is composed of a minimum of inverter 5.0 ns typ for 2.3V to 2.7V VCC stages, including the output buffer, to enable ultra low static

6.0 ns typ for 1.65V to 1.95V VCC

and dynamic power.

7.0 ns typ for 1.40V to 1.60V VCC

The NC7WP14, for lower drive requirements, is uniquely designed for optimized power and speed, and is fabricated 11.0 ns typ for 1.10V to 1.30V VCC with an advanced CMOS technology to achieve best in

27.0 ns typ for 0.90V VCC

class speed operation while maintaining extremely low

CMOS power dissipation. ■Power-Off high impedance inputs and outputs ■Static Drive (IOH/IOL) ±2.6 m A @ 3.00V VCC ±2.1 m A @ 2.30V VCC ±1.5 m A @ 1.65V VCC ±1.0 m A @ 1.40V VCC ±0.5 m A @ 1.10V VCC ±20 µA @ 0.9V VCC ■Uses patented Quiet Series noise/EMI reduction circuitry ■Ultra small Micro Pak leadfree package ■Ultra low dynamic power

Ordering Code:

Package Product Code

Order Number Package Description Supplied As

Number Top Mark

NC7WP14P6X MAA06A P14 6-Lead SC70, EIAJ SC88, 1.25mm Wide 3k Units on Tape and Reel NC7WP14L6X MAC06A AZ 6-Lead Micro Pak, 1.0mm Wide 5k Units on Tape and Reel

Battery Life vs. VCC Supply Voltage

Tiny Logic ULP and ULP-A with up to 50% less power consumption can extend your battery life significantly. Battery Life = (Vbattery *Ibattery*.9)/(Pdevice)/24hrs/day

Where, Pdevice = (ICC * VCC) + (CPD + CL) * VCC Assumes ideal 3.6V Lithium Ion battery with current rating of 900m AH and derated 90% and device frequency at 10MHz, with CL = 15 p F load

Tiny Logic is a registered trademark of Fairchild Semiconductor Corporation. Quiet Series and Micro Pak are trademarks of Fairchild Semiconductor Corporation.

© 2004 Fairchild Semiconductor Corporation DS500857 www.fairchildsemi.com

Page Summary Contents For Fairchild NC7WP14 TinyLogic ULP Dual Inverter with Schmitt Trigger Inputs Data Sheet

Page 1 7W 14 T in y L ic al In verter w ith ch itt Trig er In ts June 2003 Revised March 2004 NC7WP14 Tiny Logic ULP Dual Inverter with Schmitt Trigger Inputs General Description Features The NC7WP14 is a ...
Page 2 Logic Symbol Connection Diagrams IEEE/IEC Pin Assignments for SC70 (Top View) Pin Descriptions Pin Names Description Pin One Orientation Diagram A1, A2 Data Inputs Y1, Y2 Output Function Table Inputs ...
Page 3 7W Absolute Maximum Ratings(Note 1) Recommended Operating Conditions (Note 3) Supply Voltage (VCC) −0.5V to +4.6V DC Input Voltage (VIN) −0.5V to +4.6V Supply Voltage 0.9V to 3.6V DC Output Voltage (V...
Page 4 DC Electrical Characteristics (Continued) VCC TA = +25°C TA = −40°C to +85°C Symbol Parameter Units Conditions (V) Min Max Min Max VOH HIGH Level 0.90 VCC − 0.1 VCC − 0.1 Output Voltage 1.10 ≤ VCC ≤ 1...
Page 5 7W AC Loading and Waveforms FIGURE 1. AC Test Circuit FIGURE 2. AC Waveforms Symbol Vmi 1.5V VCC/2 VCC/2 VCC/2 VCC/2 VCC/2 Vmo 1.5V VCC/2 VCC/2 VCC/2 VCC/2 VCC/2 www.fairchildsemi.com
Page 6 Tape and Reel Specification TAPE FORMAT for SC70 Package Tape Number Cavity Cover Tape Designator Section Cavities Status Status Leader (Start End) 125 (typ) Empty Sealed P6X Carrier Filled Sealed Tra...
Page 7 7W Tape and Reel Specification (Continued) TAPE FORMAT for Micro Pak Package Tape Number Cavity Cover Tape Designator Section Cavities Status Status Leader (Start End) 125 (typ) Empty Sealed L6X Carri...
Page 8 Physical Dimensions inches (millimeters) unless otherwise noted 6-Lead SC70, EIAJ SC88, 1.25mm Wide Package Number MAA06A www.fairchildsemi.com
Page 9 7W 14 T in y L ic al In verter w ith ch itt Trig er In ts Physical Dimensions inches (millimeters) unless otherwise noted (Continued) 6-Lead Micro Pak, 1.0mm Wide Package Number MAC06A Fairchild does...
