The NC7SV04 is a single inverter from the Ultra-Low Power (ULP-A) series, designed for high-speed logic applications with a wide voltage range of 0.9V to 3.6V. This technical manual covers specifications, absolute maximum ratings, pin configurations, and electrical characteristics for the TinyLogic ULP-A inverter, ideal for designers needing compact, high-performance, and low-power solutions.

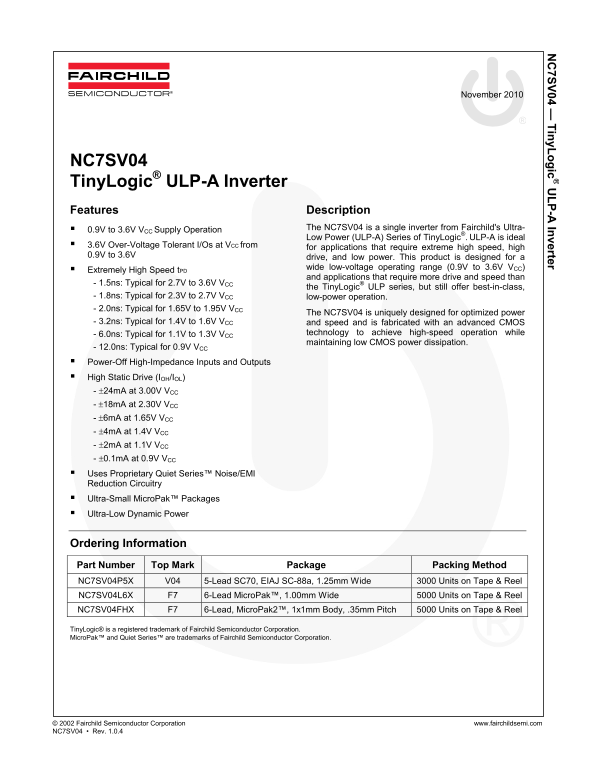

Page 1 Text Content
7SV04 — Tiny Logic LP-A Inverter
November 2010
NC7SV04 Tiny Logic® ULP-A Inverter Features Description
0.9V to 3.6V VCC Supply Operation The NC7SV04 is a single inverter from Fairchild's Ultra- Low Power (ULP-A) Series of Tiny Logic®. ULP-A is ideal
3.6V Over-Voltage Tolerant I/Os at VCC from
for applications that require extreme high speed, high
0.9V to 3.6V
drive, and low power. This product is designed for a wide low-voltage operating range (0.9V to 3.6V VCC)
Extremely High Speed t PD
and applications that require more drive and speed than
- 1.5ns: Typical for 2.7V to 3.6V VCC
the Tiny Logic® ULP series, but still offer best-in-class,
- 1.8ns: Typical for 2.3V to 2.7V VCC low-power operation. - 2.0ns: Typical for 1.65V to 1.95V VCC
The NC7SV04 is uniquely designed for optimized power
- 3.2ns: Typical for 1.4V to 1.6V VCC and speed and is fabricated with an advanced CMOS
- 6.0ns: Typical for 1.1V to 1.3V VCC technology to achieve high-speed operation while maintaining low CMOS power dissipation.
- 12.0ns: Typical for 0.9V VCC Power-Off High-Impedance Inputs and Outputs High Static Drive (IOH/IOL) - ±24m A at 3.00V VCC - ±18m A at 2.30V VCC - ±6m A at 1.65V VCC - ±4m A at 1.4V VCC - ±2m A at 1.1V VCC - ±0.1m A at 0.9V VCC Uses Proprietary Quiet Series™ Noise/EMI Reduction Circuitry Ultra-Small Micro Pak™ Packages Ultra-Low Dynamic Power
Ordering Information Part Number Top Mark Package Packing Method NC7SV04P5X V04 5-Lead SC70, EIAJ SC-88a, 1.25mm Wide 3000 Units on Tape & Reel NC7SV04L6X F7 6-Lead Micro Pak™, 1.00mm Wide 5000 Units on Tape & Reel NC7SV04FHX F7 6-Lead, Micro Pak2™, 1x1mm Body, .35mm Pitch 5000 Units on Tape & Reel
Tiny Logic® is a registered trademark of Fairchild Semiconductor Corporation. Micro Pak™ and Quiet Series™ are trademarks of Fairchild Semiconductor Corporation.
© 2002 Fairchild Semiconductor Corporation www.fairchildsemi.com NC7SV04 • Rev. 1.0.4
Page Summary Contents For Fairchild NC7SV04 TinyLogic ULP- A Inverter Data Handbook
Manual Details
| Brand | Fairchild |
|---|---|
| Pages | 11 |
| File Size | 557.35 KB |
| Published | June 15, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What supply voltage range does the NC7SV04 support?
0.9V to 3.6V VCC.
What is the typical propagation delay at 3.0V?
1.5ns typical for 2.7V to 3.6V VCC.
Does the NC7SV04 have over-voltage tolerant I/Os?
Yes, it can tolerate inputs up to 3.6V even when VCC is as low as 0.9V.
What are the ESD ratings for the NC7SV04?
Human Body Model 4000V, Charge Device Model 2000V.
What package options are available for the NC7SV04?
SC70-5, MicroPak-6, and MicroPak2-6.
