Fairchild NC7WV17 TinyLogic ULP- A NC7WV17 Data Manual

Summary

This Ultra Low Power-A dual buffer features a Schmitt Trigger input, providing robust signal buffering and high drive current capability across an extensive voltage range from 0.9V to 3.6V. Designed for exceptional power efficiency and speed, this device minimizes power dissipation while maintaining high performance crucial for battery-operated systems. The accompanying manual provides comprehensive details on the technical specifications, electrical characteristics, package options (SC70/MicroPak), and application guidelines necessary for optimal system integration by engineers working on low-voltage or power-sensitive electronics.

📄 Preview PAGE OF 9

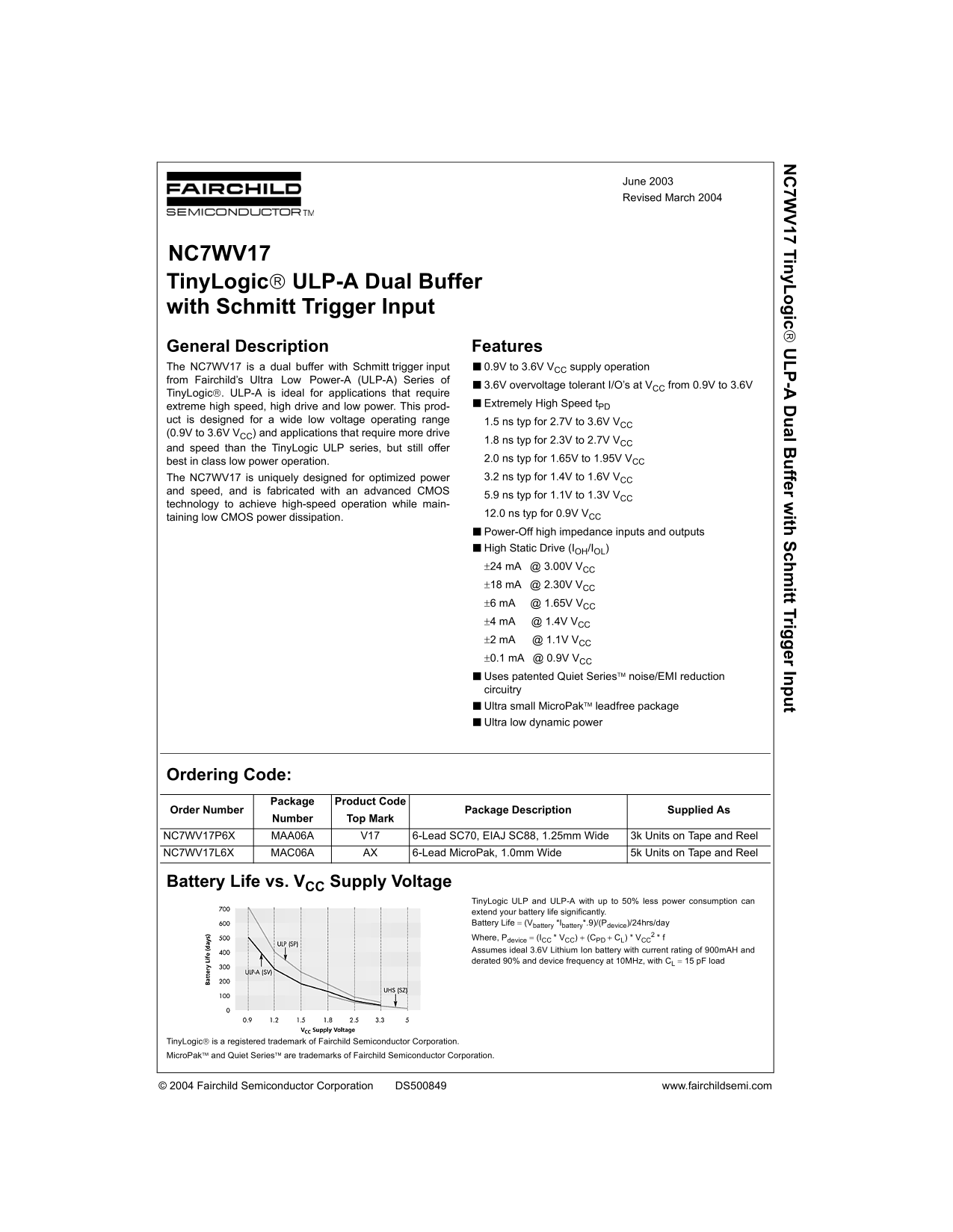

Page 1 Text Content

7W 17 Tin y L ic -A al B ffer w ith ch itt Trig er In

June 2003 Revised March 2004

NC7WV17 Tiny Logic ULP-A Dual Buffer with Schmitt Trigger Input General Description Features The NC7WV17 is a dual buffer with Schmitt trigger input ■0.9V to 3.6V VCC supply operation from Fairchild’s Ultra Low Power-A (ULP-A) Series of

■3.6V overvoltage tolerant I/O’s at VCC from 0.9V to 3.6V

Tiny Logic. ULP-A is ideal for applications that require

extreme high speed, high drive and low power. This prod- ■Extremely High Speed t PD

uct is designed for a wide low voltage operating range 1.5 ns typ for 2.7V to 3.6V VCC (0.9V to 3.6V VCC) and applications that require more drive

1.8 ns typ for 2.3V to 2.7V VCC

and speed than the Tiny Logic ULP series, but still offer

best in class low power operation. 2.0 ns typ for 1.65V to 1.95V VCC The NC7WV17 is uniquely designed for optimized power 3.2 ns typ for 1.4V to 1.6V VCC

and speed, and is fabricated with an advanced CMOS

5.9 ns typ for 1.1V to 1.3V VCC

technology to achieve high-speed operation while main-

12.0 ns typ for 0.9V VCC

taining low CMOS power dissipation.

■Power-Off high impedance inputs and outputs ■High Static Drive (IOH/IOL) ±24 m A @ 3.00V VCC ±18 m A @ 2.30V VCC ±6 m A @ 1.65V VCC ±4 m A @ 1.4V VCC ±2 m A @ 1.1V VCC ±0.1 m A @ 0.9V VCC ■Uses patented Quiet Series noise/EMI reduction circuitry ■Ultra small Micro Pak leadfree package ■Ultra low dynamic power

Ordering Code:

Package Product Code

Order Number Package Description Supplied As

Number Top Mark

NC7WV17P6X MAA06A V17 6-Lead SC70, EIAJ SC88, 1.25mm Wide 3k Units on Tape and Reel NC7WV17L6X MAC06A AX 6-Lead Micro Pak, 1.0mm Wide 5k Units on Tape and Reel

Battery Life vs. VCC Supply Voltage

Tiny Logic ULP and ULP-A with up to 50% less power consumption can extend your battery life significantly. Battery Life = (Vbattery *Ibattery*.9)/(Pdevice)/24hrs/day

Where, Pdevice = (ICC * VCC) + (CPD + CL) * VCC Assumes ideal 3.6V Lithium Ion battery with current rating of 900m AH and derated 90% and device frequency at 10MHz, with CL = 15 p F load

Tiny Logic is a registered trademark of Fairchild Semiconductor Corporation. Micro Pak and Quiet Series are trademarks of Fairchild Semiconductor Corporation.

© 2004 Fairchild Semiconductor Corporation DS500849 www.fairchildsemi.com

Page Summary Contents For Fairchild NC7WV17 TinyLogic ULP- A NC7WV17 Data Manual

Page 1 7W 17 Tin y L ic -A al B ffer w ith ch itt Trig er In June 2003 Revised March 2004 NC7WV17 Tiny Logic ULP-A Dual Buffer with Schmitt Trigger Input General Description Features The NC7WV17 is a dual ...
Page 2 Logic Symbol Connection Diagrams IEEE/IEC Pin Assignments for SC70 (Top View) Pin Descriptions Pin Names Description Pin One Orientation Diagram A1, A2 Data Inputs Y1, Y2 Outputs Function Table Input ...
Page 3 7W Absolute Maximum Ratings(Note 1) Recommended Operating Conditions (Note 3) Supply Voltage (VCC) −0.5V to +4.6V DC Input Voltage (VIN) −0.5V to +4.6V Supply Voltage 0.9V to 3.6V DC Output Voltage (V...
Page 4 DC Electrical Characteristics (Continued) VCC TA = +25°C TA = −40°C to +85°C Symbol Parameter Units Conditions (V) Min Max Min Max VOH HIGH Level 0.90 VCC − 0.1 VCC − 0.1 Output Voltage 1.10 ≤ VCC ≤ 1...
Page 5 7W AC Loading and Waveforms FIGURE 1. AC Test Circuit FIGURE 2. AC Waveforms Symbol 3.3V ± 0.3V 2.5V ± 0.2V 1.8V ± 0.15V 1.5V ± 0.10V 1.2V ± 0.10V 0.9V Vmi 1.5V VCC/2 VCC/2 VCC/2 VCC/2 VCC/2 Vmo 1.5V ...
Page 6 Tape and Reel Specification TAPE FORMAT for SC70 Package Tape Number Cavity Cover Tape Designator Section Cavities Status Status Leader (Start End) 125 (typ) Empty Sealed P6X Carrier Filled Sealed Tra...
Page 7 7W Tape and Reel Specification (Continued) TAPE FORMAT for Micro Pak Package Tape Number Cavity Cover Tape Designator Section Cavities Status Status Leader (Start End) 125 (typ) Empty Sealed L6X Carri...
Page 8 Physical Dimensions inches (millimeters) unless otherwise noted 6-Lead SC70, EIAJ SC88, 1.25mm Wide Package Number MAA06A www.fairchildsemi.com
Page 9 7W 17 Tin y L ic -A al B ffer w ith ch itt Trig er In Physical Dimensions inches (millimeters) unless otherwise noted (Continued) 6-Lead Micro Pak, 1.0mm Wide Package Number MAC06A Fairchild does not...

Manual Details

Brand Fairchild
Pages 9
File Size 181.29 KB
Published July 07, 2026
4 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What is the optimal supply voltage range for the NC7WV17?

It supports operation within a wide range from 0.9V up to 3.6V CC.

Does the device include noise reduction features?

Yes, it uses patented Quiet Series circuitry specifically designed for noise and EMI reduction.

What are the available physical packages for this product?

Customers can choose between the 6-Lead SC70 format or the 6-Lead MicroPak format.

How is the chip’s speed related to supply voltage?

The typical operating speed changes with voltage; for instance, it achieves 1.5 ns typ at 2.7V to 3.6V V CC.
