Fairchild NC7SP04 TinyLogic ULP Inverter Data Handbook

Summary

The NC7SP04 is an ultra-low-power (ULP) single inverter designed for critical battery-powered applications and portable electronics. Operating reliably from 0.9V to 3.6V, this device features advanced CMOS technology, Over-Voltage Tolerant I/Os, and optimized low static/dynamic power consumption. The accompanying manual provides comprehensive details on electrical specifications, recommended operating conditions, full pin configurations, and multiple advanced packaging options (including MicroPak™) to ensure optimal circuit integration and extended battery life.

📄 Preview PAGE OF 9

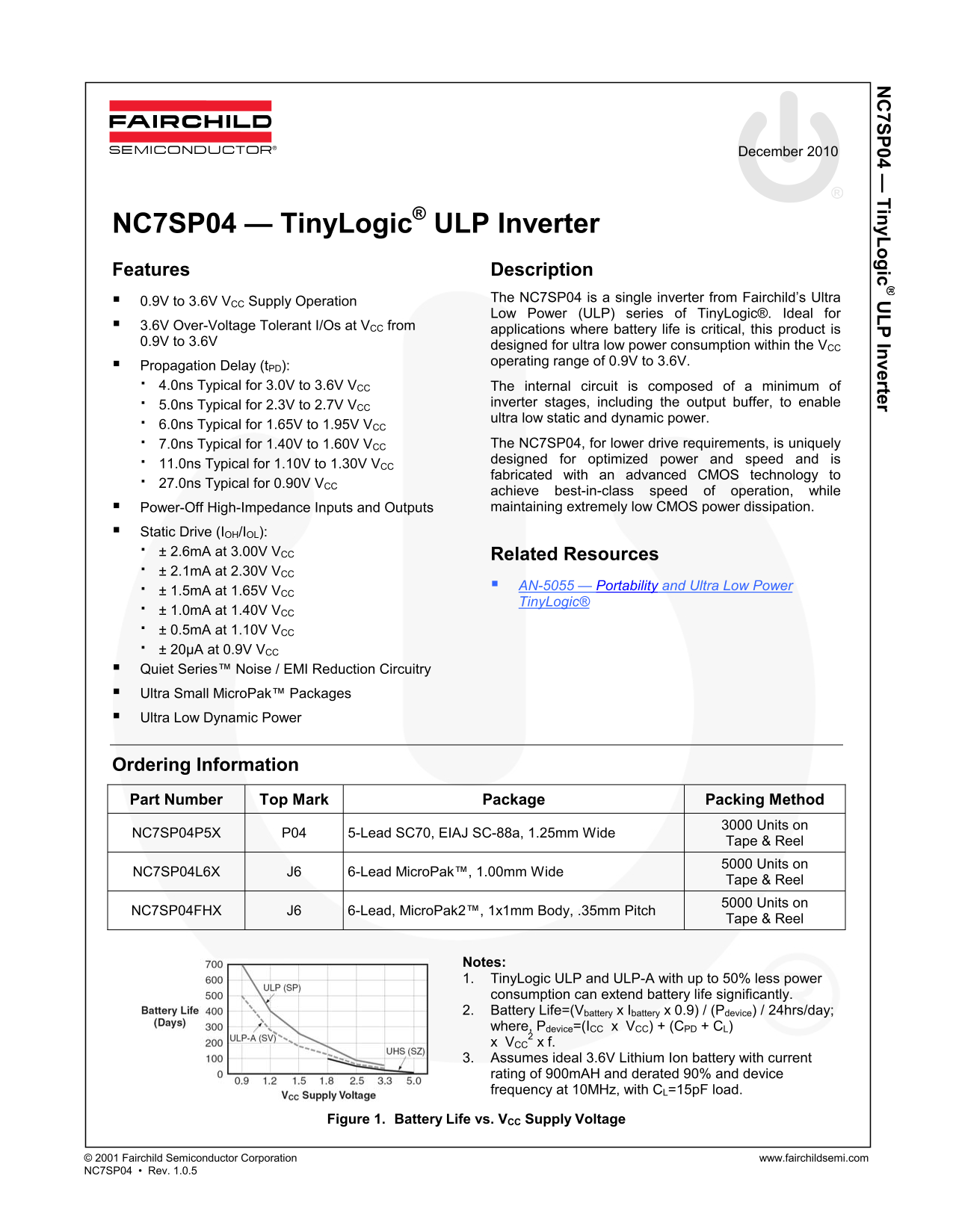

Page 1 Text Content

7SP04 — Tiny Logic LP Inverter

December 2010

NC7SP04 — Tiny Logic® ULP Inverter Features Description

0.9V to 3.6V VCC Supply Operation The NC7SP04 is a single inverter from Fairchild’s Ultra Low Power (ULP) series of Tiny Logic®. Ideal for

3.6V Over-Voltage Tolerant I/Os at VCC from

applications where battery life is critical, this product is

0.9V to 3.6V

designed for ultra low power consumption within the VCC operating range of 0.9V to 3.6V.

Propagation Delay (t PD): 4.0ns Typical for 3.0V to 3.6V VCC The internal circuit is composed of a minimum of

5.0ns Typical for 2.3V to 2.7V VCC inverter stages, including the output buffer, to enable ultra low static and dynamic power.

6.0ns Typical for 1.65V to 1.95V VCC

7.0ns Typical for 1.40V to 1.60V VCC The NC7SP04, for lower drive requirements, is uniquely designed for optimized power and speed and is

11.0ns Typical for 1.10V to 1.30V VCC

fabricated with an advanced CMOS technology to

27.0ns Typical for 0.90V VCC

achieve best-in-class speed of operation, while Power-Off High-Impedance Inputs and Outputs maintaining extremely low CMOS power dissipation.

Static Drive (IOH/IOL): ± 2.6m A at 3.00V VCC Related Resources ± 2.1m A at 2.30V VCC

AN-5055 — Portability and Ultra Low Power

± 1.5m A at 1.65V VCC

Tiny Logic®

± 1.0m A at 1.40V VCC ± 0.5m A at 1.10V VCC ± 20µA at 0.9V VCC Quiet Series™ Noise / EMI Reduction Circuitry Ultra Small Micro Pak™ Packages Ultra Low Dynamic Power

Ordering Information Part Number Top Mark Package Packing Method

NC7SP04P5X P04 5-Lead SC70, EIAJ SC-88a, 1.25mm Wide 3000 Units on

Tape & Reel

NC7SP04L6X J6 6-Lead Micro Pak™, 1.00mm Wide 5000 Units on

Tape & Reel

NC7SP04FHX J6 6-Lead, Micro Pak2™, 1x1mm Body, .35mm Pitch 5000 Units on

Tape & Reel

Notes: 1. Tiny Logic ULP and ULP-A with up to 50% less power consumption can extend battery life significantly. 2. Battery Life=(Vbattery x Ibattery x 0.9) / (Pdevice) / 24hrs/day; where, Pdevice=(ICC x VCC) + (CPD + CL)

2 x f. x VCC

3. Assumes ideal 3.6V Lithium Ion battery with current rating of 900m AH and derated 90% and device frequency at 10MHz, with CL=15p F load.

Figure 1. Battery Life vs. VCC Supply Voltage

© 2001 Fairchild Semiconductor Corporation www.fairchildsemi.com NC7SP04 • Rev. 1.0.5

Page Summary Contents For Fairchild NC7SP04 TinyLogic ULP Inverter Data Handbook

Page 1 7SP04 — Tiny Logic LP Inverter December 2010 NC7SP04 — Tiny Logic® ULP Inverter Features Description 0.9V to 3.6V VCC Supply Operation The NC7SP04 is a single inverter from Fairchild’s Ultra Low Power...
Page 2 7SP04 — Tiny Logic LP Inverter Connection Diagrams IEEE/IEC Figure 2. Logic Symbol Pin Configurations NC VCC1 1NC VCC 2A NC GND Y3 Figure 3. SC70 (Top View) Figure 4. Micro Pak™ (Top Through View) Fun...
Page 3 7SP04 — Tiny Logic LP Inverter Absolute Maximum Ratings Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be operable above the recommended operatin...
Page 4 7SP04 — Tiny Logic LP Inverter DC Electrical Characteristics TA=25°C TA=-40 to 85°C Symbol Parameter VCC Conditions Units Min. Max. Min. Max. 0.90 0.65 x VCC 0.65 x VCC 1.10 ≤ VCC ≤ 1.30 0.65 x VCC 0....
Page 5 7SP04 — Tiny Logic LP Inverter AC Electrical Characteristics TA=25°C TA=-40 to 85°C Symbol Parameter VCC Conditions Units Figure Min. Typ. Max. Min. Max. 0.90 27.0 1.10 ≤ VCC ≤ 1.30 3.5 11.0 21.8 3.0 ...
Page 6 7SP04 — Tiny Logic LP Inverter Physical Dimensions Figure 7. 5-Lead, SC70, EIAJ SC-88a, 1.25mm Wide Package drawings are provided as a service to customers considering Fairchild components. Drawings m...
Page 7 7SP04 — Tiny Logic LP Inverter Physical Dimensions TOP VIEW 1X PIN 1 IDENTIFIER 0.55MAX (0.30) PIN 1 6X RECOMMENED LAND PATTERN DETAIL A 1.0 DETAIL A 0.075 X 45 PIN 1 TERMINAL CHAMFER BOTTOM VIEW Note...
Page 8 7SP04 — Tiny Logic LP Inverter Physical Dimensions 1.00 AB PIN 1 MIN 250u M TOP VIEW RECOMMENDED LAND PATTERN FOR SPACE CONSTRAINED PCB 0.55MAX SIDE VIEW 0.73 0.09 6XDETAIL A 0.191 ALTERNATIVE LAND PA...
Page 9 7SP04 — Tiny Logic LP Inverter © 2001 Fairchild Semiconductor Corporation www.fairchildsemi.com NC7SP04 • Rev. 1.0.5

Manual Details

Brand Fairchild
Pages 9
File Size 649.19 KB
Published July 12, 2026
2 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What is the operating voltage range for the NC7SP04?

The recommended operating supply voltage (VCC) range is 0.9 V to 3.6 V.

How low can this inverter operate while maintaining high efficiency?

It can maintain extremely low power dissipation down to a VCC of 0.90 V.

Are the inputs and outputs protected from floating states?

Yes, it features Power-Off High-Impedance Inputs and Outputs.

What are the recommended applications for this component?

It is ideal for applications where battery life is critical due to its ultra low power consumption.
