Fairchild NC7WV14 TinyLogic ULP- A Dual Inverter with Schmitt Trigger Input Data Manual
Summary
This ultra-low power dual inverter offers high speed and exceptional efficiency for modern digital designs, operating reliably across a wide supply range of 0.9V to 3.6V. Built using advanced CMOS technology, it features Schmitt trigger inputs and patented noise reduction circuitry ideal for battery-powered applications requiring minimal dynamic power dissipation. The accompanying manual is a comprehensive technical datasheet, guiding engineers through optimal operational parameters, electrical characteristics (including high static drive), connection layouts, and ordering details to ensure reliable system integration.
Page 1 Text Content

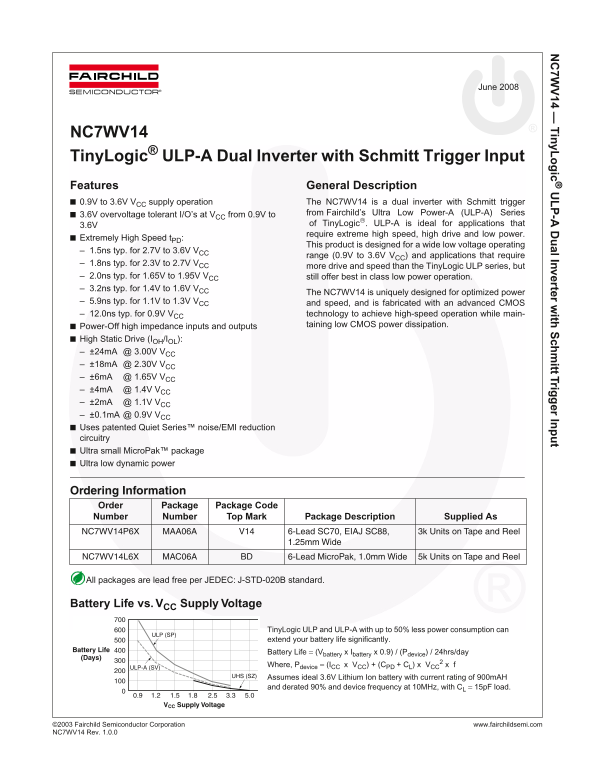

7W 14 — iny L ic -A al Inverter w ith ch itt Trig er In
June 2008
NC7WV14 Tiny Logic® ULP-A Dual Inverter with Schmitt Trigger Input Features General Description 0.9V to 3.6V VCC supply operation The NC7WV14 is a dual inverter with Schmitt trigger
3.6V overvoltage tolerant I/O’s at VCC from 0.9V to from Fairchild’s Ultra Low Power-A (ULP-A) Series 3.6V of Tiny Logic. ULP-A is ideal for applications that require extreme high speed, high drive and low power.
Extremely High Speed t PD:
This product is designed for a wide low voltage operating
– 1.5ns typ. for 2.7V to 3.6V VCC
range (0.9V to 3.6V VCC) and applications that require
– 1.8ns typ. for 2.3V to 2.7V VCC
more drive and speed than the Tiny Logic ULP series, but
– 2.0ns typ. for 1.65V to 1.95V VCC still offer best in class low power operation. – 3.2ns typ. for 1.4V to 1.6V VCC
The NC7WV14 is uniquely designed for optimized power
– 5.9ns typ. for 1.1V to 1.3V VCC and speed, and is fabricated with an advanced CMOS – 12.0ns typ. for 0.9V VCC technology to achieve high-speed operation while main-
Power-Off high impedance inputs and outputs taining low CMOS power dissipation.
High Static Drive (IOH/IOL): – ±24m A @ 3.00V VCC – ±18m A @ 2.30V VCC – ±6m A @ 1.65V VCC – ±4m A @ 1.4V VCC – ±2m A @ 1.1V VCC – ±0.1m A @ 0.9V VCC Uses patented Quiet Series™ noise/EMI reduction circuitry Ultra small Micro Pak™ package Ultra low dynamic power
Ordering Information Order Package Package Code Number Number Top Mark Package Description Supplied As NC7WV14P6X MAA06A V14 6-Lead SC70, EIAJ SC88, 3k Units on Tape and Reel
1.25mm Wide
NC7WV14L6X MAC06A BD 6-Lead Micro Pak, 1.0mm Wide 5k Units on Tape and Reel
All packages are lead free per JEDEC: J-STD-020B standard.
Battery Life vs. VCC Supply Voltage
Tiny Logic ULP and ULP-A with up to 50% less power consumption can
ULP (SP)
extend your battery life significantly.
Battery Life
Battery Life = (Vbattery x Ibattery x 0.9) / (Pdevice) / 24hrs/day
(Days)
Where, Pdevice = (ICC x VCC) + (CPD + CL) x VCC
ULP-A (SV)
UHS (SZ) Assumes ideal 3.6V Lithium Ion battery with current rating of 900m AH
and derated 90% and device frequency at 10MHz, with CL = 15p F load.
VCC Supply Voltage
©2 003 Fairchild Semiconductor Corporation www.fairchildsemi.co NC 7WV14 Rev. 1.0.0
