The NC7WV16 is a sophisticated dual buffer from the TinyLogic ULP-A series, engineered for extreme high-speed operation with ultra-low power consumption across an expansive 0.9V to 3.6V supply voltage range. Ideal for designers building battery-powered circuits that require stable performance and high drive ability in portable electronics. This manual offers complete technical details, including detailed electrical characteristics, absolute maximum ratings, various packaging options (SC70/MicroPak), and guides for maximizing battery life in demanding low-voltage applications.

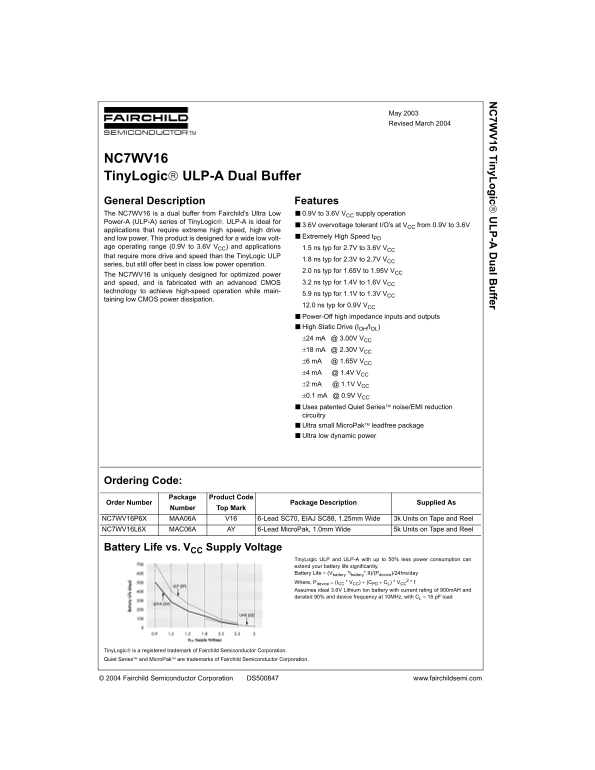

Page 1 Text Content
7W 16 T in y L ic -A al B ffer
May 2003 Revised March 2004
NC7WV16 Tiny Logic ULP-A Dual Buffer General Description Features The NC7WV16 is a dual buffer from Fairchild’s Ultra Low ■0.9V to 3.6V VCC supply operation Power-A (ULP-A) series of Tiny Logic. ULP-A is ideal for
■3.6V overvoltage tolerant I/O’s at VCC from 0.9V to 3.6V
applications that require extreme high speed, high drive
and low power. This product is designed for a wide low volt- ■Extremely High Speed t PD
age operating range (0.9V to 3.6V VCC) and applications 1.5 ns typ for 2.7V to 3.6V VCC that require more drive and speed than the Tiny Logic ULP
1.8 ns typ for 2.3V to 2.7V VCC
series, but still offer best in class low power operation.
2.0 ns typ for 1.65V to 1.95V VCC
The NC7WV16 is uniquely designed for optimized power
and speed, and is fabricated with an advanced CMOS 3.2 ns typ for 1.4V to 1.6V VCC
technology to achieve high-speed operation while main-
5.9 ns typ for 1.1V to 1.3V VCC
taining low CMOS power dissipation.
12.0 ns typ for 0.9V VCC ■Power-Off high impedance inputs and outputs ■High Static Drive (IOH/IOL) ±24 m A @ 3.00V VCC ±18 m A @ 2.30V VCC ±6 m A @ 1.65V VCC ±4 m A @ 1.4V VCC ±2 m A @ 1.1V VCC ±0.1 m A @ 0.9V VCC ■Uses patented Quiet Series noise/EMI reduction circuitry ■Ultra small Micro Pak leadfree package ■Ultra low dynamic power
Ordering Code:
Package Product Code
Order Number Package Description Supplied As
Number Top Mark
NC7WV16P6X MAA06A V16 6-Lead SC70, EIAJ SC88, 1.25mm Wide 3k Units on Tape and Reel NC7WV16L6X MAC06A AY 6-Lead Micro Pak, 1.0mm Wide 5k Units on Tape and Reel
Battery Life vs. VCC Supply Voltage
Tiny Logic ULP and ULP-A with up to 50% less power consumption can extend your battery life significantly. Battery Life = (Vbattery *Ibattery*.9)/(Pdevice)/24hrs/day
Where, Pdevice = (ICC * VCC) + (CPD + CL) * VCC Assumes ideal 3.6V Lithium Ion battery with current rating of 900m AH and derated 90% and device frequency at 10MHz, with CL = 15 p F load
Tiny Logic is a registered trademark of Fairchild Semiconductor Corporation. Quiet Series and Micro Pak are trademarks of Fairchild Semiconductor Corporation.
© 2004 Fairchild Semiconductor Corporation DS500847 www.fairchildsemi.com
