Fairchild NC7WP125 TinyLogic ULP Buffer with 3-STATE Output Data Sheet

Summary

The NC7WP125 is an Ultra Low Power (ULP) dual buffer featuring a reliable 3-STATE output, operating efficiently from 0.9V to 3.6V. Engineered for environments where maximizing battery life is essential, this device ensures minimal power consumption and maintains high performance across varying voltages. The accompanying manual provides comprehensive details on the product's operation, including absolute maximum ratings, precise electrical specifications, detailed pin assignments, and various MicroPak/Tape & Reel packaging solutions, making it ideal for designers building portable or low-power battery-operated systems.

📄 Preview PAGE OF 10

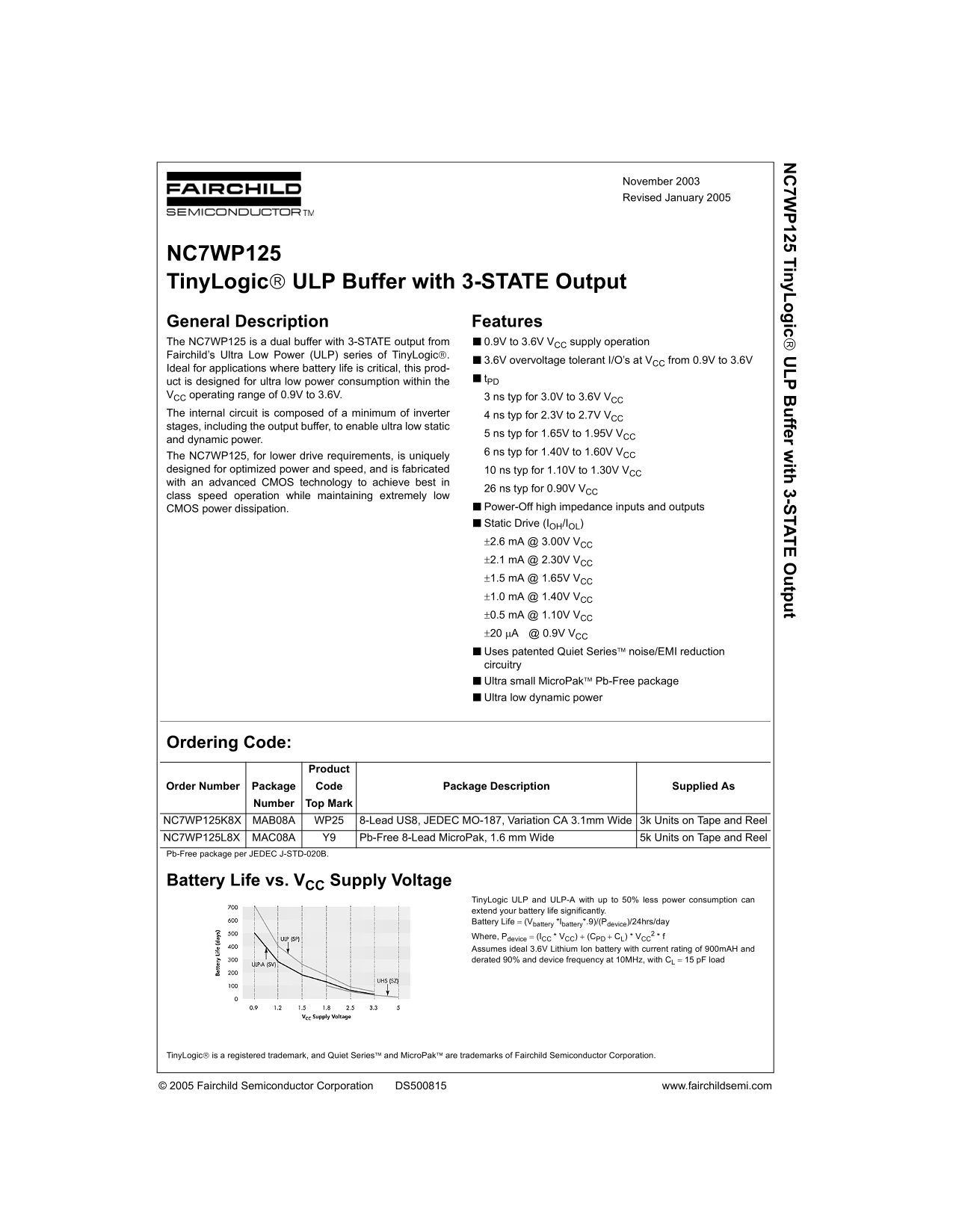

Page 1 Text Content

7W 125 T in y L ic ffer w ith 3-S TA tp

November 2003 Revised January 2005

NC7WP125 Tiny Logic ULP Buffer with 3-STATE Output General Description Features The NC7WP125 is a dual buffer with 3-STATE output from ■0.9V to 3.6V VCC supply operation Fairchild’s Ultra Low Power (ULP) series of Tiny Logic.

■3.6V overvoltage tolerant I/O’s at VCC from 0.9V to 3.6V

Ideal for applications where battery life is critical, this prod-

uct is designed for ultra low power consumption within the t PD

VCC operating range of 0.9V to 3.6V. 3 ns typ for 3.0V to 3.6V VCC The internal circuit is composed of a minimum of inverter 4 ns typ for 2.3V to 2.7V VCC stages, including the output buffer, to enable ultra low static

5 ns typ for 1.65V to 1.95V VCC

and dynamic power.

6 ns typ for 1.40V to 1.60V VCC

The NC7WP125, for lower drive requirements, is uniquely designed for optimized power and speed, and is fabricated 10 ns typ for 1.10V to 1.30V VCC with an advanced CMOS technology to achieve best in

26 ns typ for 0.90V VCC

class speed operation while maintaining extremely low

CMOS power dissipation. ■Power-Off high impedance inputs and outputs ■Static Drive (IOH/IOL) ±2.6 m A @ 3.00V VCC ±2.1 m A @ 2.30V VCC ±1.5 m A @ 1.65V VCC ±1.0 m A @ 1.40V VCC ±0.5 m A @ 1.10V VCC ±20 µA @ 0.9V VCC ■Uses patented Quiet Series noise/EMI reduction circuitry ■Ultra small Micro Pak Pb-Free package ■Ultra low dynamic power

Ordering Code:

Product

Order Number Code Package Description Supplied As Package

Number Top Mark

NC7WP125K8X MAB08A WP25 8-Lead US8, JEDEC MO-187, Variation CA 3.1mm Wide 3k Units on Tape and Reel NC7WP125L8X MAC08A Y9 Pb-Free 8-Lead Micro Pak, 1.6 mm Wide 5k Units on Tape and Reel Pb-Free package per JEDEC J-STD-020B.

Battery Life vs. VCC Supply Voltage

Tiny Logic ULP and ULP-A with up to 50% less power consumption can extend your battery life significantly. Battery Life = (Vbattery *Ibattery*.9)/(Pdevice)/24hrs/day

Where, Pdevice = (ICC * VCC) + (CPD + CL) * VCC Assumes ideal 3.6V Lithium Ion battery with current rating of 900m AH and derated 90% and device frequency at 10MHz, with CL = 15 p F load

Tiny Logic is a registered trademark, and Quiet Series and Micro Pak are trademarks of Fairchild Semiconductor Corporation.

© 2005 Fairchild Semiconductor Corporation DS500815 www.fairchildsemi.com

Page Summary Contents For Fairchild NC7WP125 TinyLogic ULP Buffer with 3-STATE Output Data Sheet

Page 1 7W 125 T in y L ic ffer w ith 3-S TA tp November 2003 Revised January 2005 NC7WP125 Tiny Logic ULP Buffer with 3-STATE Output General Description Features The NC7WP125 is a dual buffer with 3-STATE ...
Page 2 Logic Symbol Connection Diagrams IEEE/IEC Pin Assignments for US8 Pin Descriptions Pin Names Description (Top View) OEn Enable Inputs for 3-STATE Outputs An Input Pin One Orientation Diagram Yn 3-STAT...
Page 3 7W Absolute Maximum Ratings(Note 1) Recommended Operating Conditions (Note 3) Supply Voltage (VCC) −0.5V to +4.6V DC Input Voltage (VIN) −0.5V to +4.6V Supply Voltage 0.9V to 3.6V DC Output Voltage (V...
Page 4 DC Electrical Characteristics (Continued) VCC TA = +25°C TA = −40°C to +85°C Symbol Parameter Units Conditions (V) Min Max Min Max VOL LOW Level 0.90 0.1 0.1 Output Voltage 1.10 ≤ VCC ≤ 1.30 0.1 0.1 1...
Page 5 7W AC Electrical Characteristics (Continued) VCC TA = +25°C TA = −40°C to +85°C Figure Symbol Parameter Units Conditions Number(V) Min Typ Max Min Max t PHZ Output 0.90 30.0 CL = 15 p F t PLZ Disable ...
Page 6 AC Loading and Waveforms Test Switch t PLH, t PHL Open t PZL, t PLZ 6V at VCC = 3.3V ± 0.3V VCC x 2 at VCC = < 3.0V t PZH, t PHZ GND FIGURE 1. AC Test Circuit FIGURE 2. AC Waveforms Symbol Vmi 1.5V...
Page 7 7W Tape and Reel Specification TAPE FORMAT for US8 Package Tape Number Cavity Cover Tape Designator Section Cavities Status Status Leader (Start End) 125 (typ) Empty Sealed K8X Carrier Filled Sealed T...
Page 8 Tape and Reel Specification (Continued) REEL DIMENSIONS inches (millimeters) Tape W1 W2 W3 Size www.fairchildsemi.com
Page 9 7W Physical Dimensions inches (millimeters) unless otherwise noted 8-Lead US8, JEDEC MO-187, Variation CA 3.1mm Wide Package Number MAB08A www.fairchildsemi.com
Page 10 7W in y L ic ff er it -S TA tp Physical Dimensions inches (millimeters) unless otherwise noted (Continued) Pb-Free 8-Lead Micro Pak, 1.6 mm Wide Package Number MAC08A Fairchild does not assume any res...
