Delta HMI XGT CNET Connection Manual
Summary
Essential technical documentation for integrating industrial control systems and HMIs. This manual provides comprehensive wiring schematics and detailed connection specifications for linking various PLCs using RS-232 and RS-422 communication modules. It details the optimal configuration of physical connections, along with thorough maps defining all necessary register addresses, I/O points, and data formats (including Data Registers and specialized relays). Ideal for automation engineers, control system integrators, and technicians establishing reliable machine connectivity across diverse factory equipment.
Page 1 Text Content

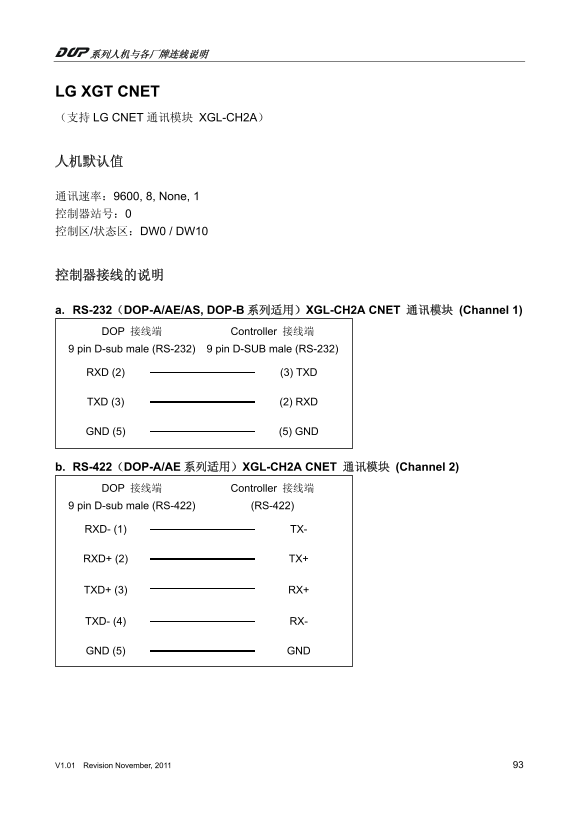

LG XGT CNET （支持 LG CNET 通讯模块 XGL-CH2A）
通讯速率：9600, 8, None, 1 控制器站号：0 控制区/状态区：DW0 / DW10
a. RS-232（DOP-A/AE/AS, DOP-B 系列适用）XGL-CH2A CNET 通讯模块 (Channel 1) DOP 接线端 Controller 接线端 9 pin D-sub male (RS-232) 9 pin D-SUB male (RS-232)
RXD (2) (3) TXD
TXD (3) (2) RXD
GND (5) (5) GND
b. RS-422（DOP-A/AE 系列适用）XGL-CH2A CNET 通讯模块 (Channel 2) DOP 接线端 Controller 接线端 9 pin D-sub male (RS-422) (RS-422)
RXD- (1) TX-
RXD+ (2) TX+
TXD+ (3) RX+
TXD- (4) RX-
GND (5) GND
V1.01 Revision November, 2011 93
