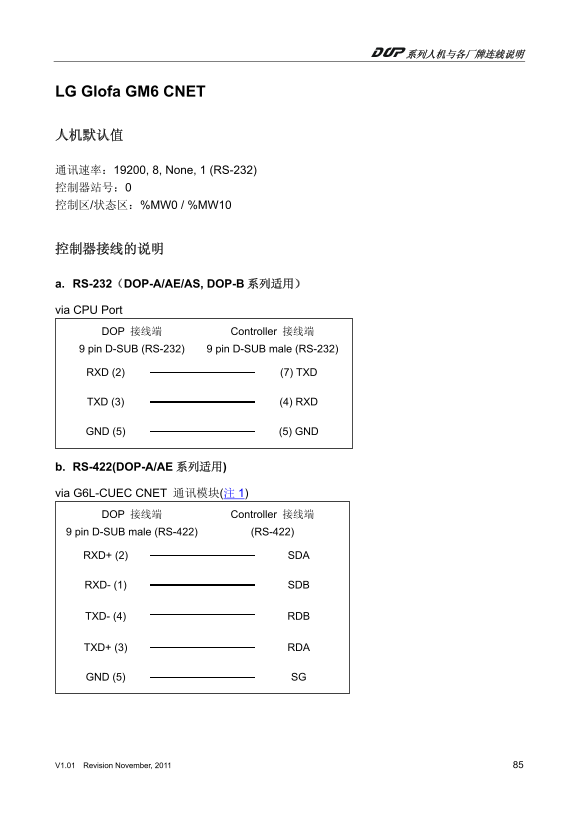

Page 1 Text Content
LG Glofa GM6 CNET
通讯速率：19200, 8, None, 1 (RS-232) 控制器站号：0 控制区/状态区：%MW0 / %MW10
a. RS-232（DOP-A/AE/AS, DOP-B 系列适用）
via CPU Port DOP 接线端 Controller 接线端 9 pin D-SUB (RS-232) 9 pin D-SUB male (RS-232)
RXD (2) (7) TXD
TXD (3) (4) RXD
GND (5) (5) GND
b. RS-422(DOP-A/AE 系列适用)
via G6L-CUEC CNET 通讯模块(注 1)
DOP 接线端 Controller 接线端 9 pin D-SUB male (RS-422) (RS-422)
RXD+ (2) SDA
RXD- (1) SDB
TXD- (4) RDB
TXD+ (3) RDA
GND (5) SG
V1.01 Revision November, 2011 85
