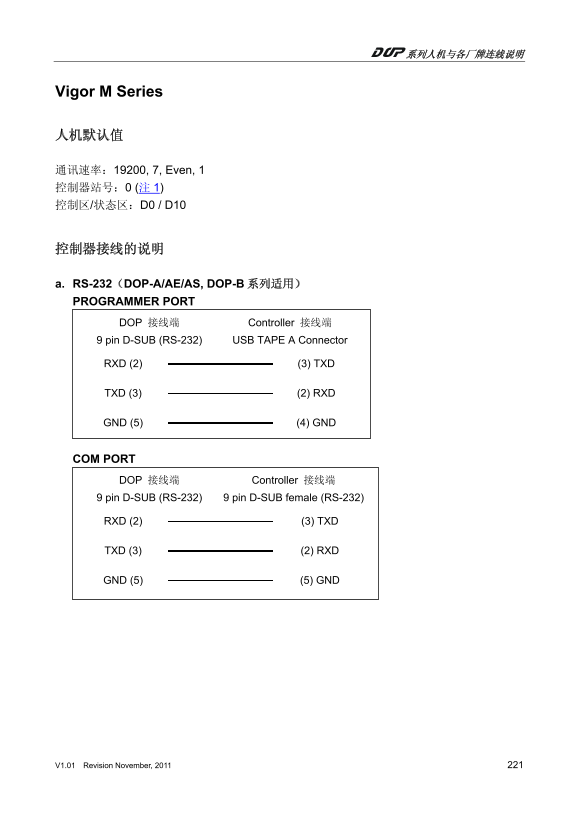

Vigor M Series
通讯速率：19200, 7, Even, 1 控制器站号：0 (注 1) 控制区/状态区：D0 / D10
a. RS-232（DOP-A/AE/AS, DOP-B 系列适用） PROGRAMMER PORT
DOP 接线端 Controller 接线端 9 pin D-SUB (RS-232) USB TAPE A Connector
RXD (2) (3) TXD
TXD (3) (2) RXD
GND (5) (4) GND
COM PORT DOP 接线端 Controller 接线端 9 pin D-SUB (RS-232) 9 pin D-SUB female (RS-232)
RXD (2) (3) TXD
TXD (3) (2) RXD
GND (5) (5) GND
V1.01 Revision November, 2011 221
Page Summary Contents For Delta HMI Vigor M Series Online Manual
Manual Details
| Brand | Delta |
|---|---|
| Pages | 2 |
| File Size | 84.92 KB |
| Published | June 06, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
如何连接Vigor M系列人机与控制器？
可以使用RS-232或COM PORT进行连接，具体取决于使用的附件（如DOP-A/AE/AS）。
输入继电器的读写地址范围是什么？
Word No. (n) 的输入继电器 Xn的地址范围是从X0到X770。
辅助继电器和特殊继电器的最大地址是多少？
辅助继电器M的范围是M0至M5119；特殊继电器M의范围是M9000至M9255。
我需要设置什么通讯参数才能连接设备？
默认通信速率应设置为 19200, 7, Even, 1，控制器站号为 0。
